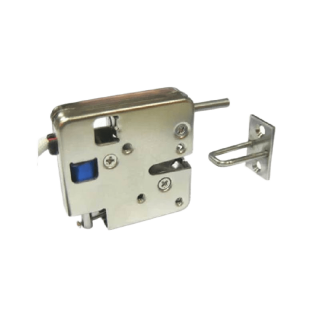

Model：PCL-55

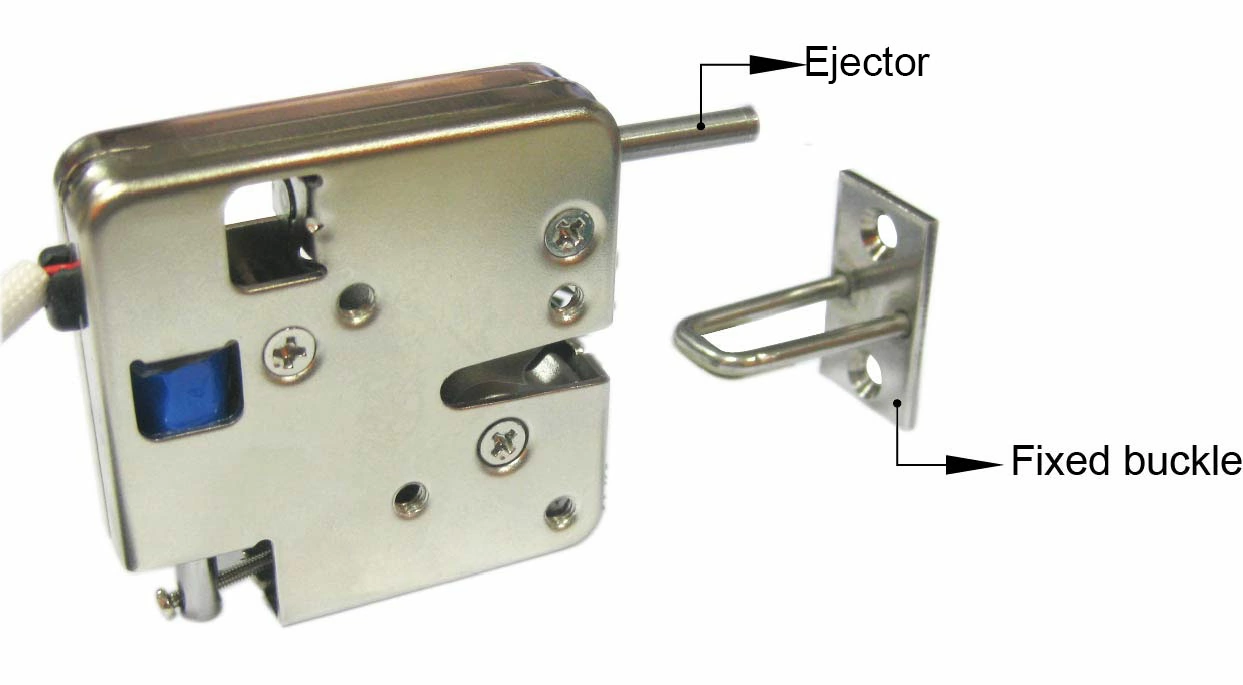

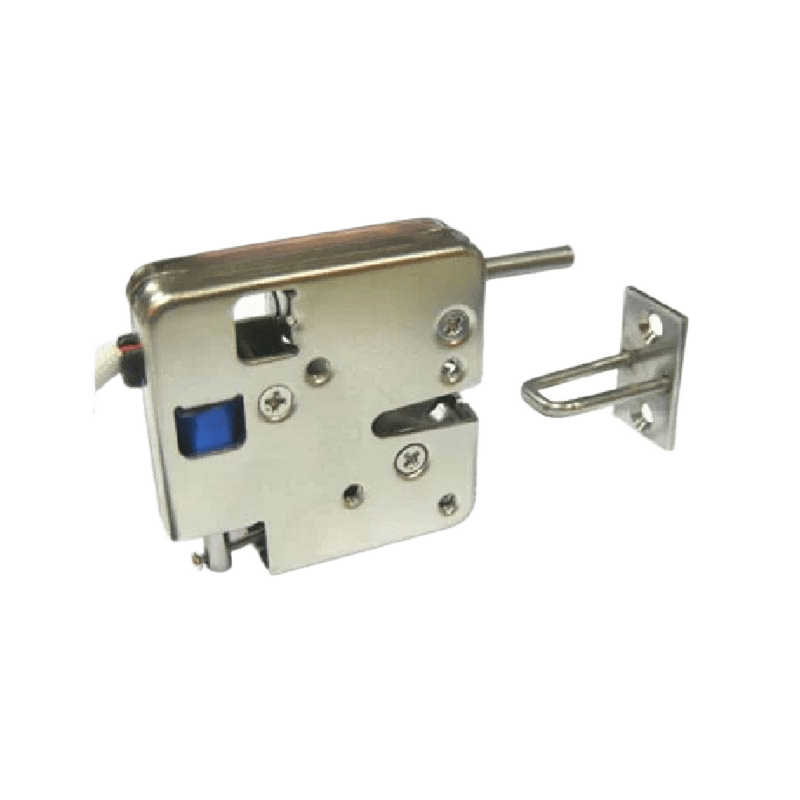

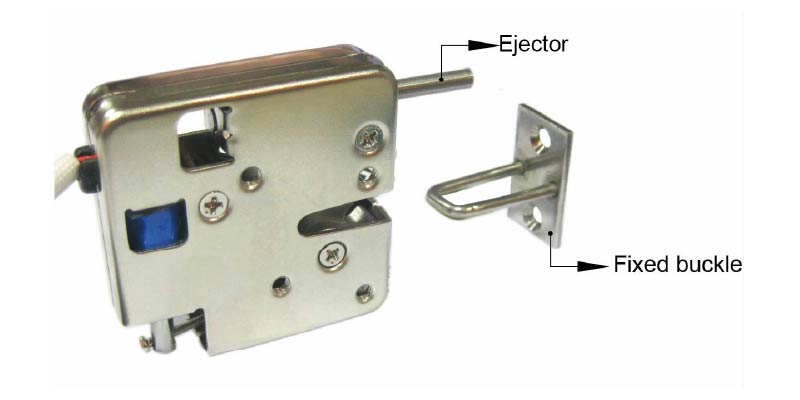

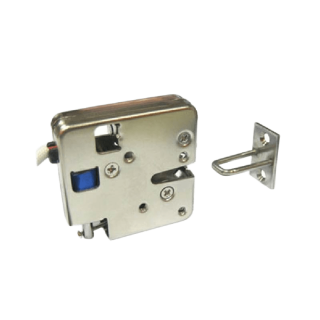

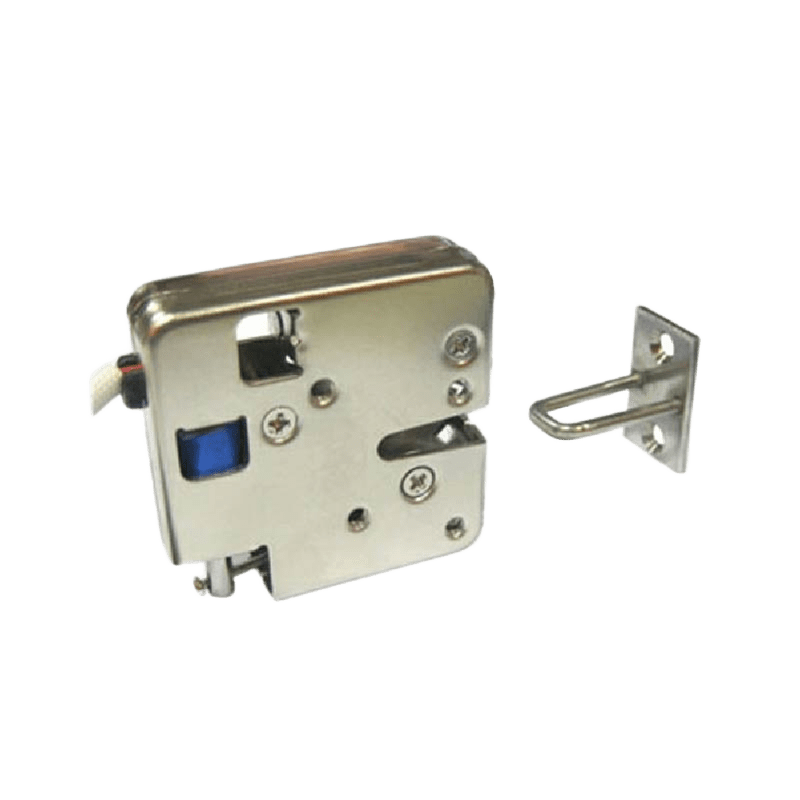

Electric Control Cabinet Lock with Ejector
Compare
Product
Features
- Easy to use; Easy to install
- Support door position detection signals, and door automatically pops up.

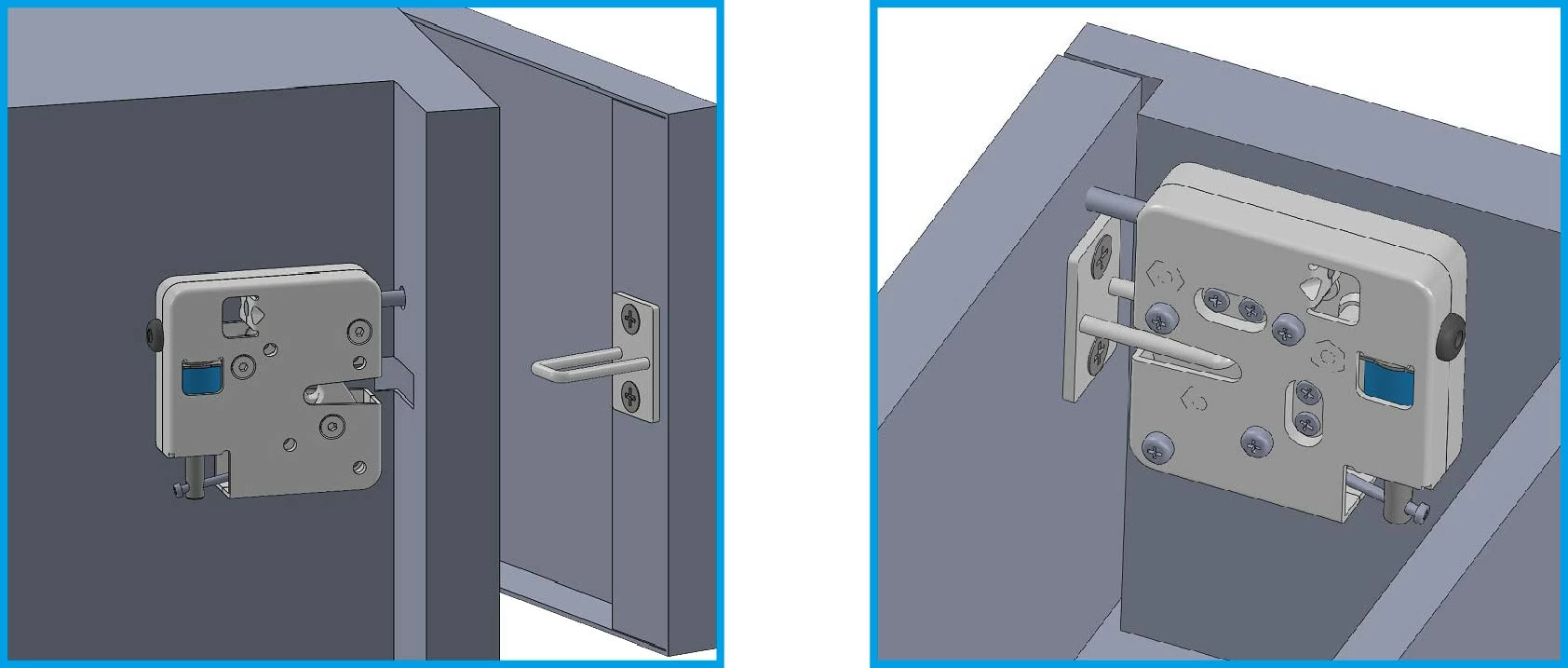

- Suitable for locker, cabinet, mailbox, drawers, vending machine, and other similar devices
Specification
| Appearance | |
 |
|---|---|---|

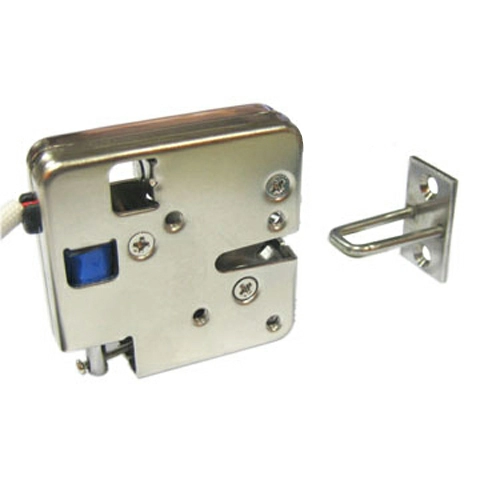

| Model No. | PCL-55 | PCL-56 |
| Voltage / Current | DC12V (2.3A) | |
| Push force | 2KGs | 0.7KGs |
| Door position sensor | YES | |
| Dimension(mm) | 55x55x15 | |
| Material | Lock: SPCC Hook: Stainless steel |
|
| Net Weight (g) | PCL-55:120g PCL-56:119g |
|

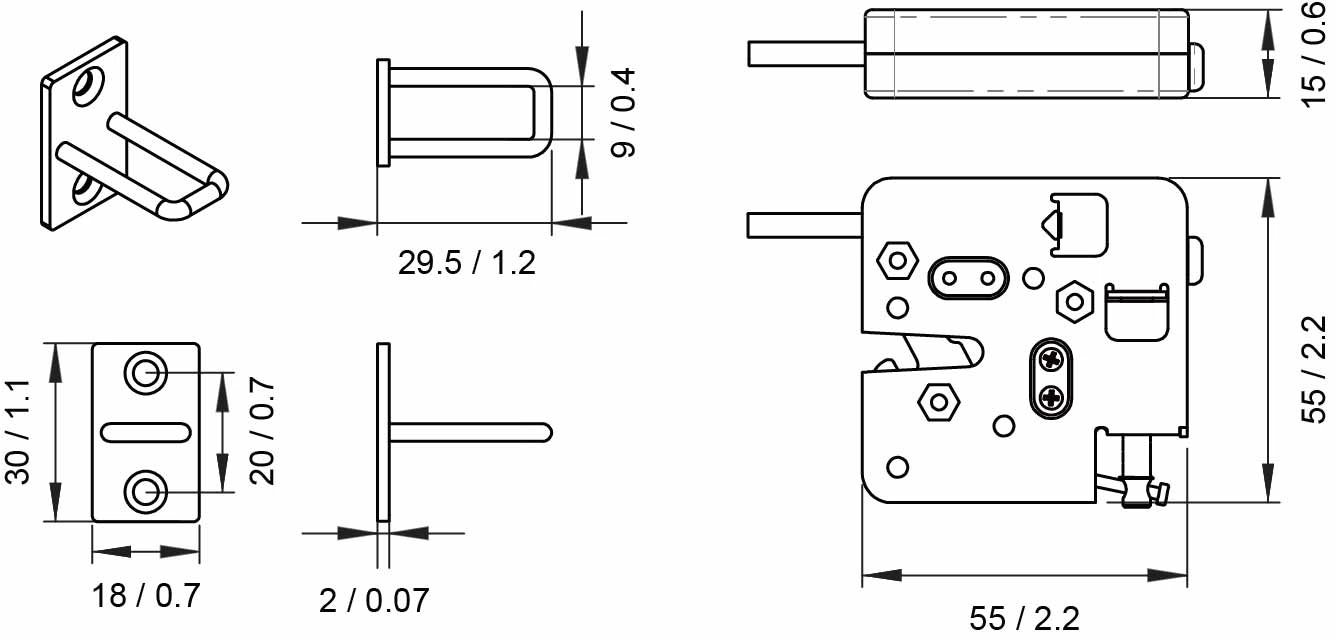

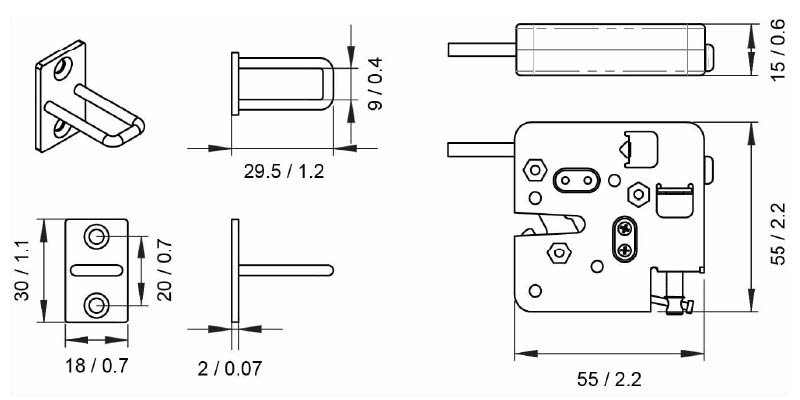

Dimensions: mm/inch

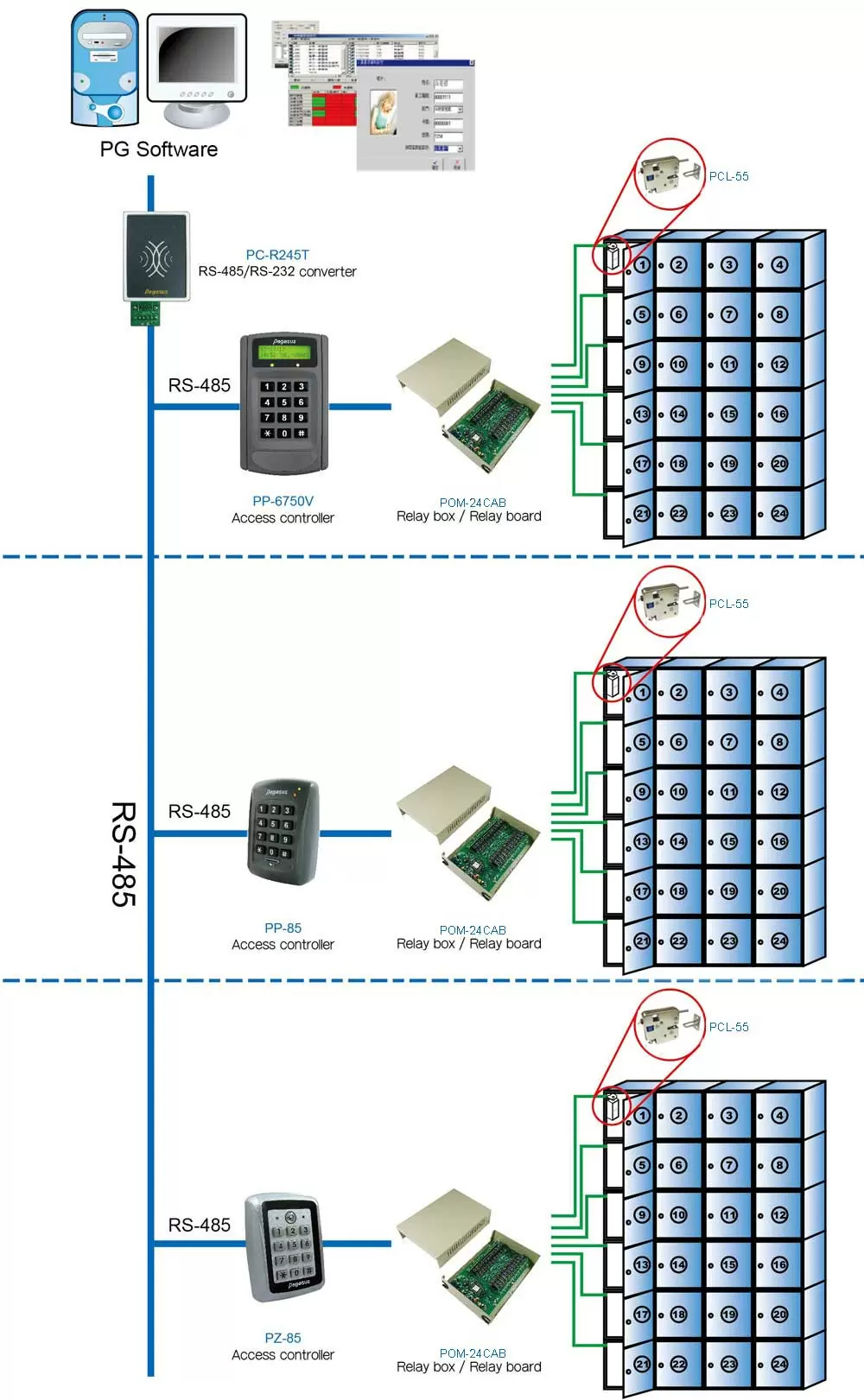

System configuration
We reserve the right to change the specification without prior notice or obligation!
Specification
Material
Lock: SPCC Hook: Stainless steel
Net Weight (g)
PCL-55:120g PCL-56:119g
Voltage / Current
DC12V (2.3A)
Door position sensor
YES
Dimension(mm)
55x55x15
