Mullion standalone access controller
Features
- Classic and popular mullion Standalone controller
- Support 2000 Cards
- Built-in LED and Buzzer indicator
- Built-in Form A Relay
Specification
| Model No. | PP-47P-6D | PP-47N-6D | PP-47M0-6D | ||
|---|---|---|---|---|---|
| Frequency | 125KHz ASK | 125KHz ASK | 13.56MHz | ||
| Compatibility | ISO18000-2 EM4001, 4100, 4102, Pegasus Format | ISO18000-2 EM4001, 4100, 4102, TEMIC 5567 | ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESfire, NFC (card simulation) | ||
| User Capacity | 2000 | ||||
| Power Voltage | DC 12V | ||||
| Input | Exit push button / Door monitor / Security sensor | ||||
| Output | Alarm output / Tamper switch output / Electric lock output | ||||
| Keypad | Plastic | ||||
| Material | ABS | ||||
| Dimensions (LxWxH)mm | 140x58x25.5 | ||||
| IP Rating | IP54 | ||||
Dimension: mm

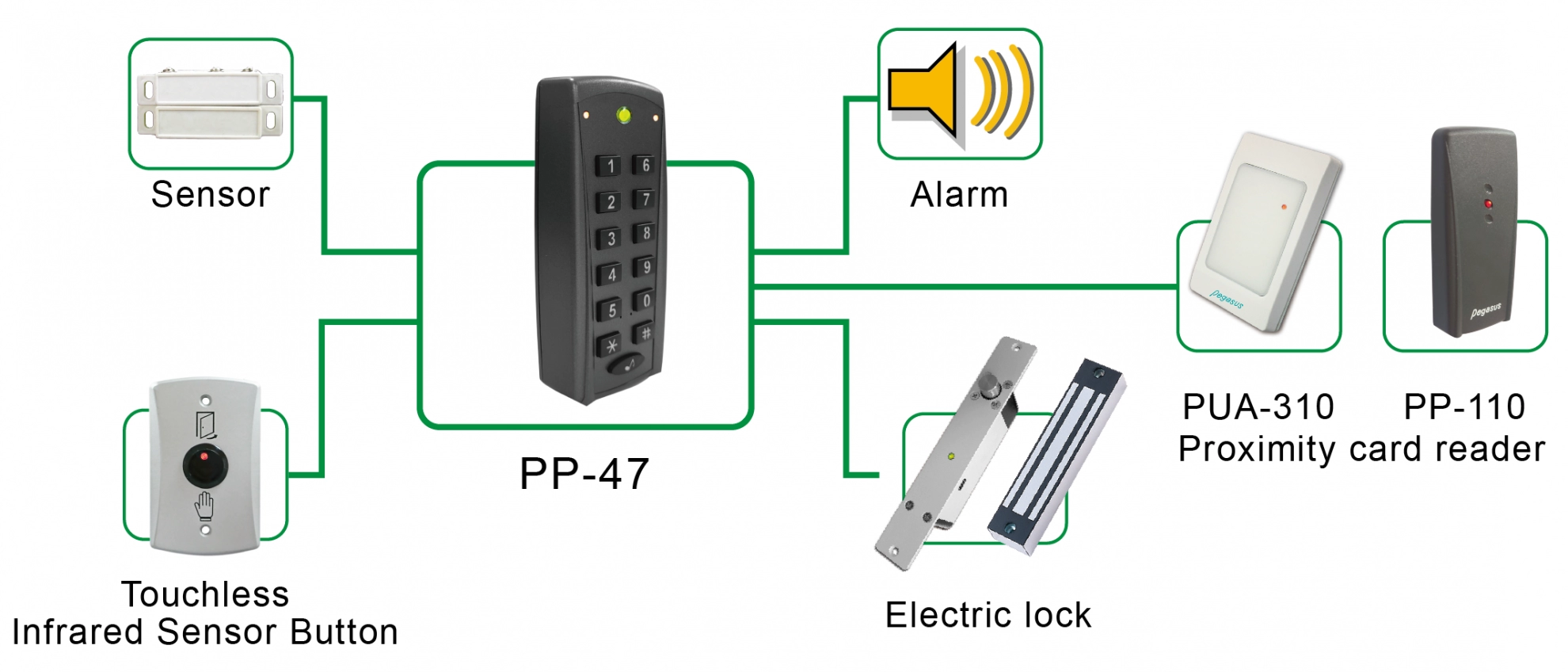

System configuration
Mifare is a registered trademark of NXP B.V.
Mifare DESFire is a registered trademark of NXP B.V.
Mifare Ultralight is a registered trademark of NXP B.V.
We reserve the right to change the specification without prior notice or obligation!
