Model：PUA-310V1H
Thin Model 125KHz FSK H.I.D. Contactless Card Reader
Product
Applications
Product Description
PUA-310V1/H is a proximity reader which reads 125 KHz contactless card/key tag etc. then send out some standard data format, such as Wiegand (25bit~40bit),RS232,RS485, ABA ,USB etc. for ID collection. The users may select the suitable type for connecting to dedicated controller or PC for various applications.
Features
- Latest compact size contact less/proximity reading technology provides an user friendly solution access controller-no swiping or contact required.
- Passive contact less card and key fobs require no batteries.
- Weather resistant. "Epoxy Potted" construction ensures consistent performance in the most adverse environment.
- Easy to install, low profile and designed for indoor or outdoor application.
- With CPU watch-log function to prevent malfunction.
- Free SDK available.
Accessories
| Feature | Avoid intervention |
|---|---|
| Model No. | R-21-310-3(White) / R-21-310-3B(Black) |
| Dimension | 119.6(L) x 76.5(W) x 15(H)mm |
| Material | Acrylic |
-

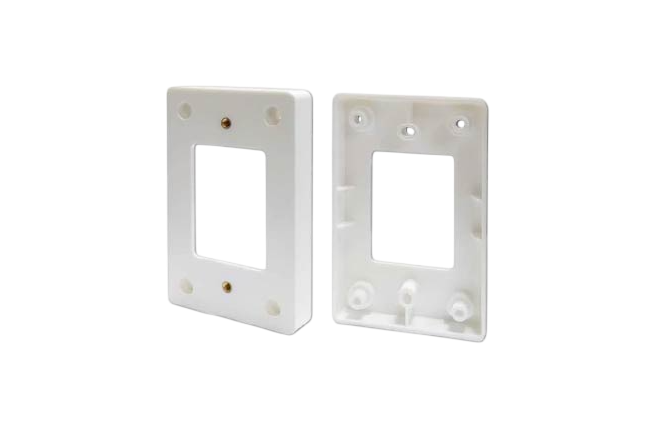

R-21-310-3(White)
Mounting Spacer for Proximity Reader -

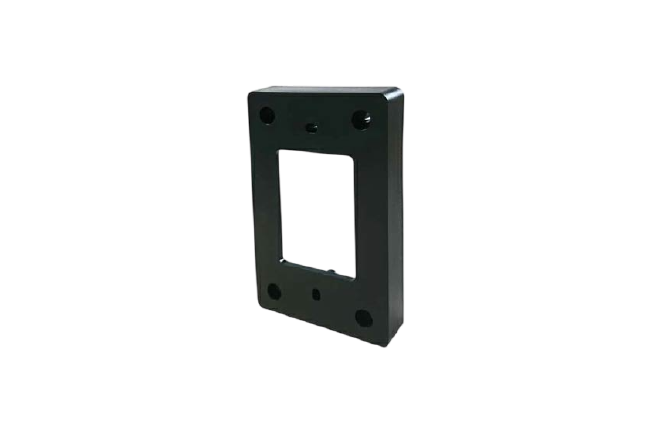

R-21-310-3B(Black)
Mounting Spacer for Proximity Reader

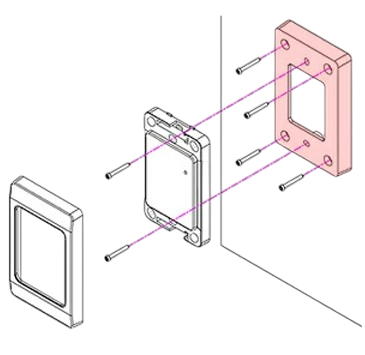

How to assembly Mounting Spacer for Proximity Reader
Ordering information
Mifare is a registered trademark of NXP B.V.
We reserve the right to change the specification without notice or obligation!
Specification
Dimension
118 (L) x 75(W) x 17(H) mm
Mounting
Surface mount, waterproof
Reading range
Max. 10cm
Frequency
125KHz FSK
Power supply
DC 5V / 12V / 24V±10%, DC 7V~32V(Optional)
Output Interface
Wiegand 26/32/34/35/36/37/40/42/48bits / ABA Track2 / RS232 / RS485 / USB
Operating temperature
-10°C ~ 75°C
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
