Model：PXEM-F-SDK

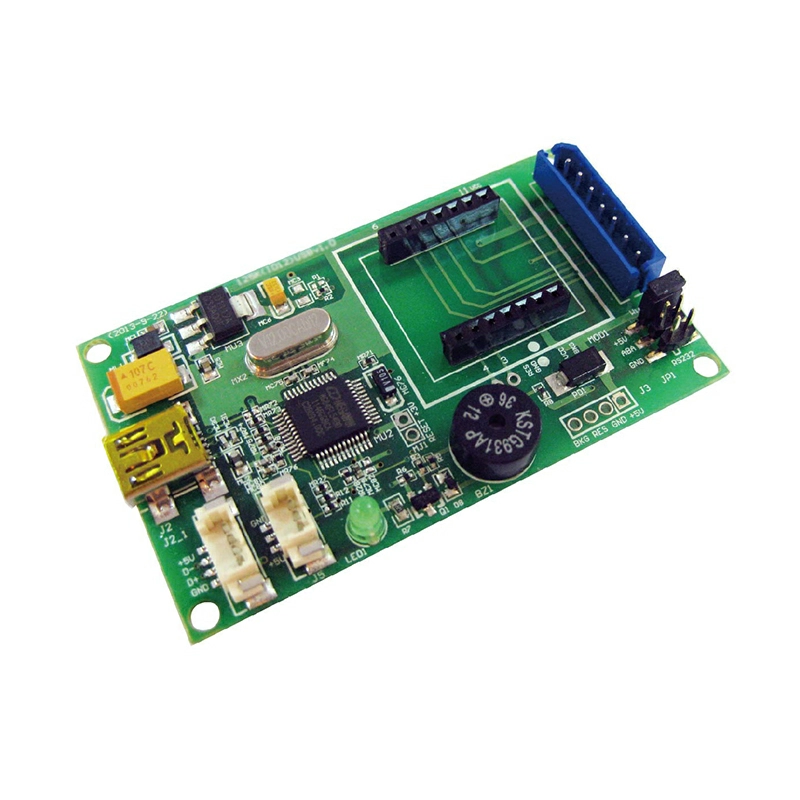

125KHz RFID EM / H.I.D. Module Starter Kit
Compare
Product
Introduction
125KHz ASK EM / FSK H.I.D. starter kit module support multi-cable wiring connection(7 pin, 3 pin, Mini USB cable) convert into multi-interface output for testing.(Wiegand, ABA, RS-232, USB)

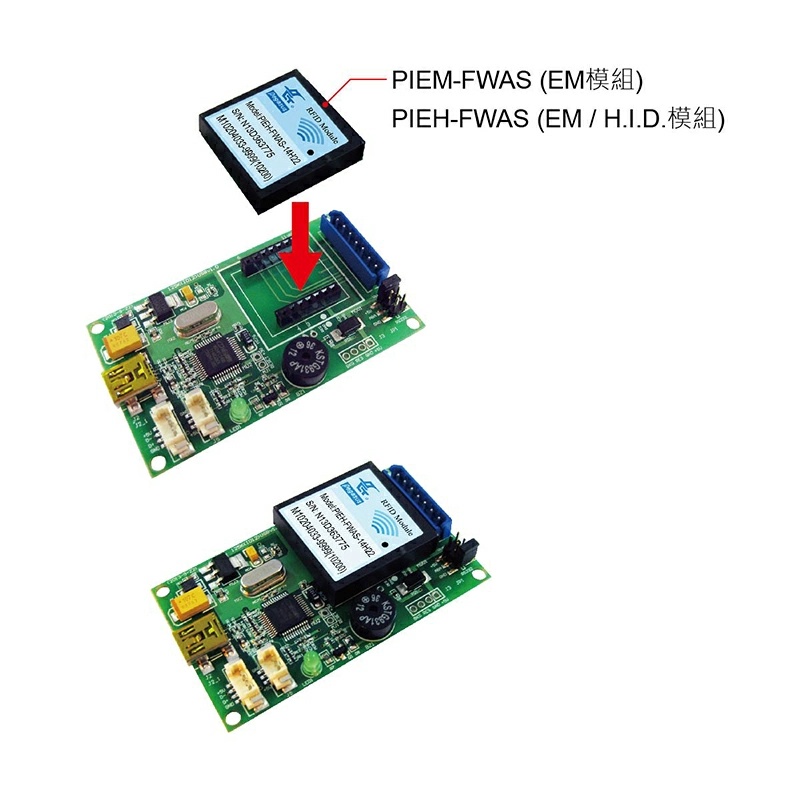

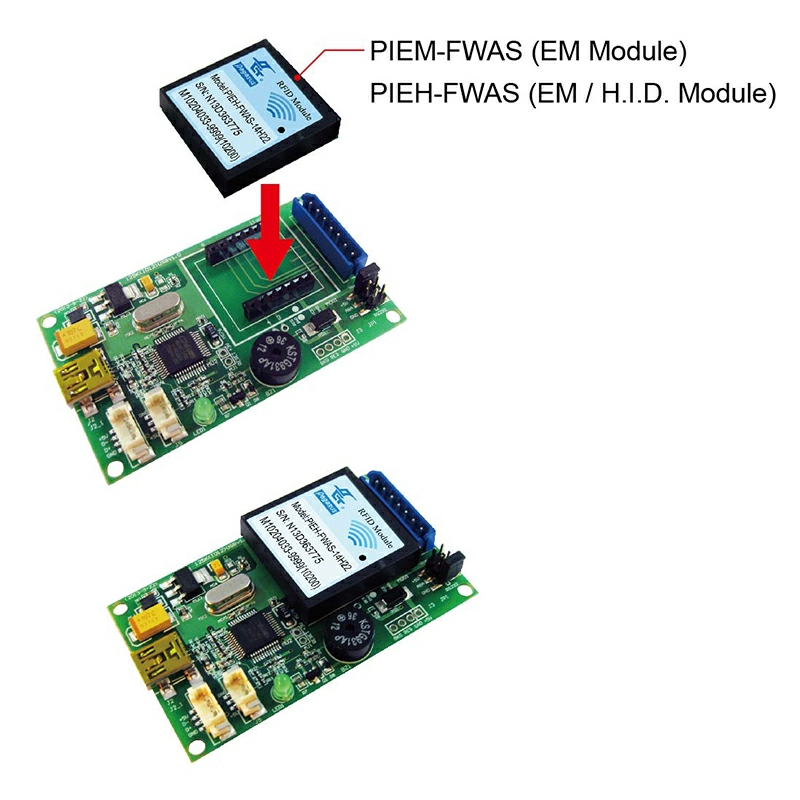

It helps to shorten and simplify RFID products development schedule compared with PIEM-FWAS / PIEH-FWAS-14H22 series module.
Features
- With indicating power & status LED.
- With buzzer for sound warning.
- Supporting multi-cable wiring connection (7 pin, 3 pin, Mini USB cable) convert into multi-interface output for testing.
- No need to install driver. (keyboard emulator).
- Compact size.
- With 4 fixed holes around the corner.
Dimensions : mm
＊We reserve the right to change the specification without prior notice or obligation!
Specification
Operating temperature
-10℃~75℃
Storage temperature
-20℃~85℃
Output format
Wiegand, ABA, RS-232, USB
Power input
5VDC
RFID frequency
125KHz ASK EM / FSK H.I.D.
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
