125KHz RFID EM & H.I.D. Read Module

Introduction

• 125KHz RFID module is completely Integrated Protocol Handling for ISO18000-2 EM4001, 4100, 4102, TEMIC 5567, H.I.D. or compatible.
• 125KHz RFID reader modules come with the choice of internal antenna or external antenna and are suitable and for embedded applications and general Electronic Devices. OEM/ODM service is available.

Features

• Support multi-type of cards and protocol: ISO18000-2 EM4001, 4100, 4102, TEMIC 5567, H.I.D. or compatible.
• Communications: Wiegand 26/34(Optional)bits, UART(TTL), ABA
• Built-in LED & Buzzer alert.
• Provide SDK for development.

Specification

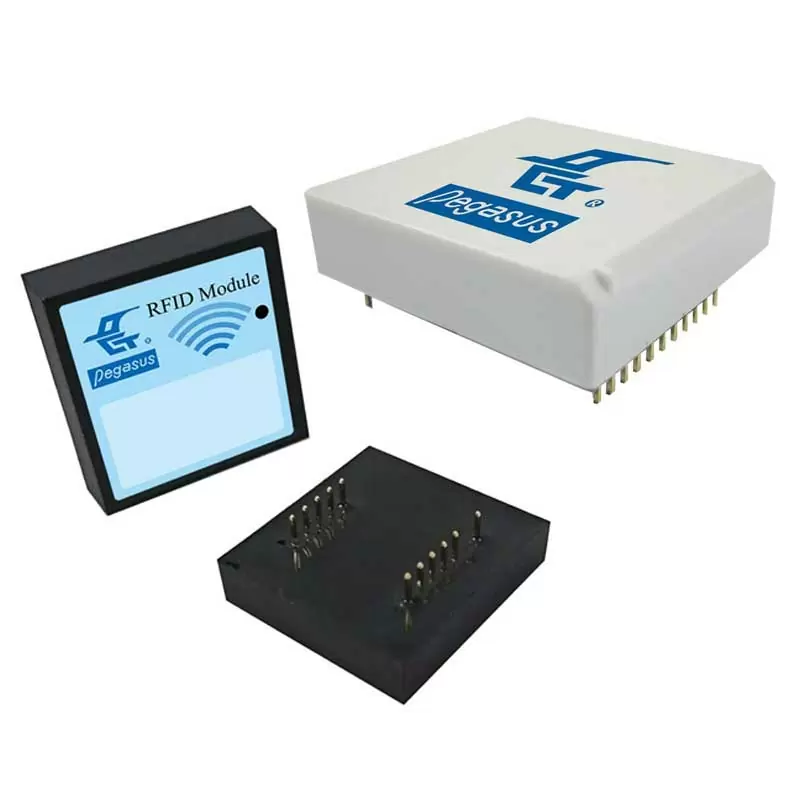

Appearance

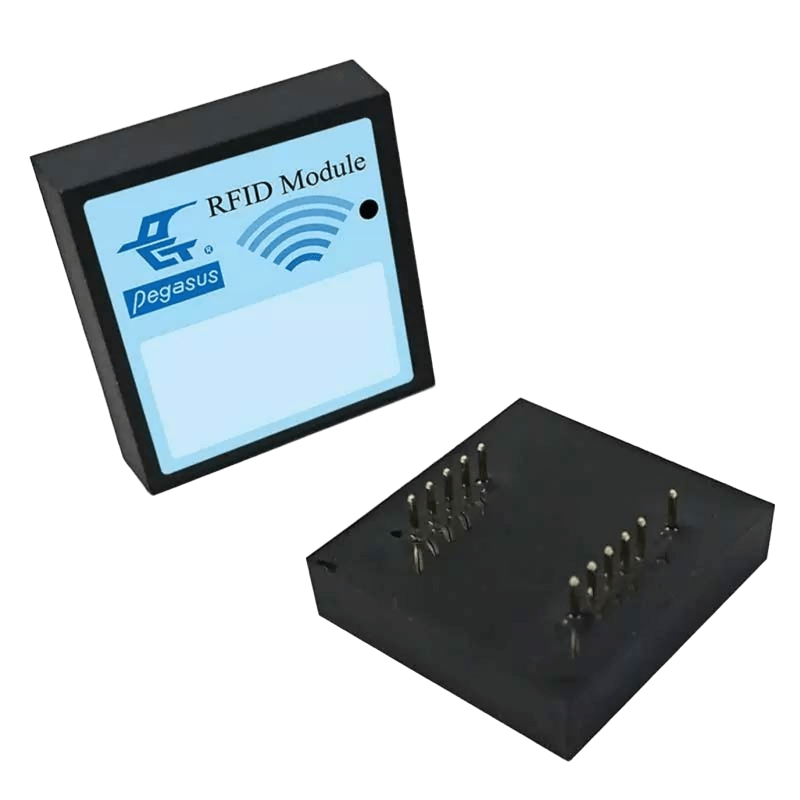

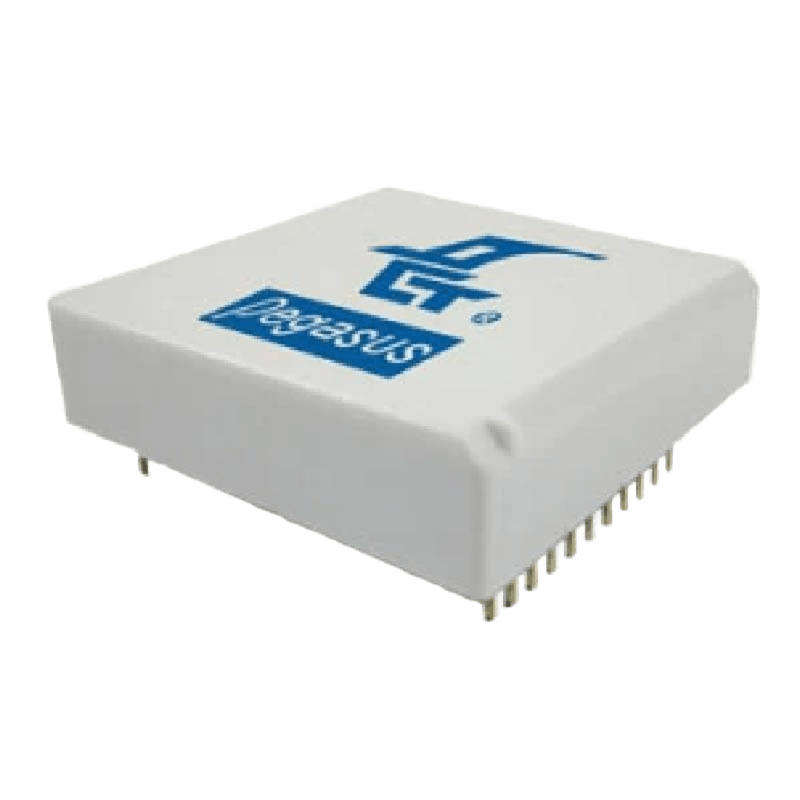

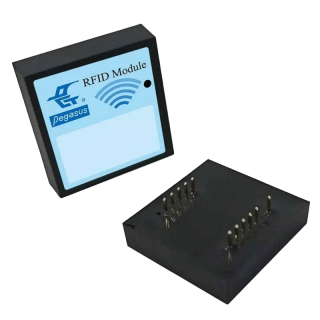

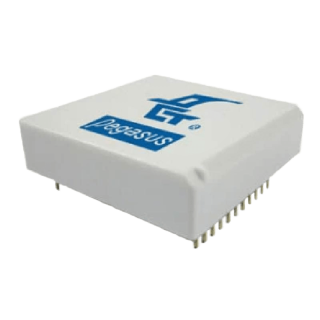

Model No.	PIEH-FWAS-14H22	PIEH-CWAS-14H22
	PIEH-FWAS-14H22LW (Low power consumption)	PIEH-CWAS-14H22LW (Low power consumption)
Frequency	125KHz ASK & FSK
Compatibility	EM4001, EM4100, EM4102, EM4200, EM4305, TEMIC 5557(ISO1785) , TK4100, T5567, ATA5577, H.I.D.
With internal antenna	YES
Reading range	Max. 6cm	Max. 8cm
Output format	Wiegand 26/34(Optional)bits, UART(TTL), ABA
Power Voltage	DC 3.7V~5V
Material	ABS
Dimensions (LxWxH)mm	26 x 25 x 7	40 x 40 x 10

Application field

Counterfeit Forestalling	Asset Management	Contactless payment system
Healthcare	Entertainment Facilities	Access Control /Intercom
Automobile instrument control	Logistics & Supply chain	Production control
Robotics Navigation	Kiosk / POS system	Rental Equipment Solution

We reserve the right to change the specification without prior notice or obligation!
