Model：PIEM

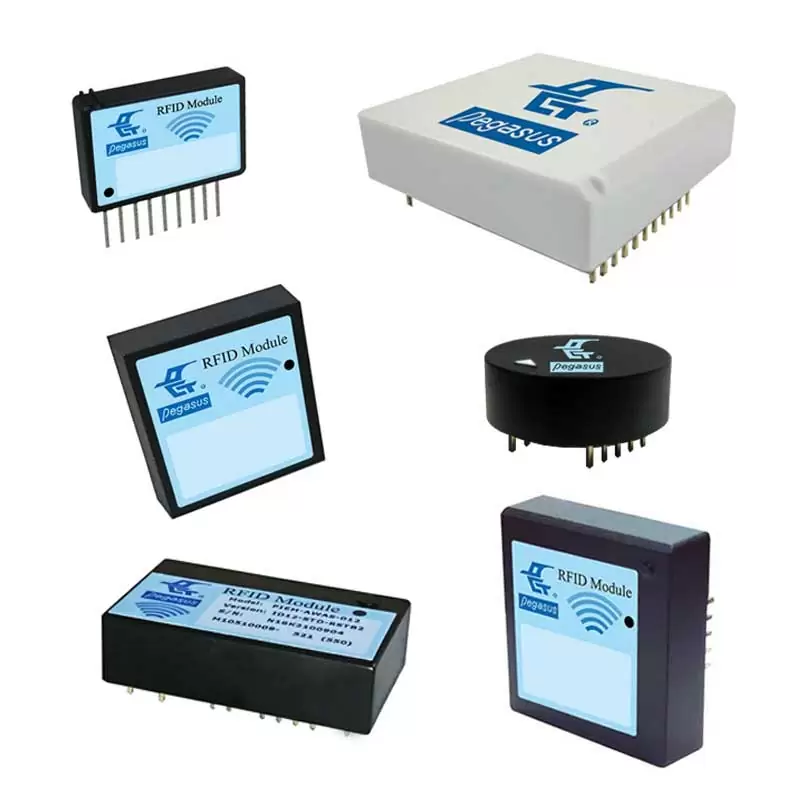

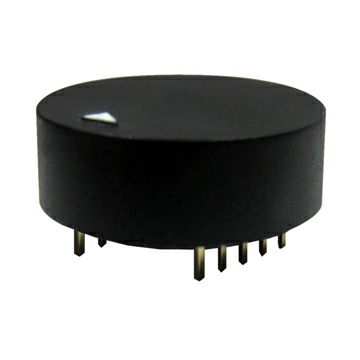

125KHz RFID EM Read Module
Compare
Product
Introduction
- The 125KHz contactless card Read module is completely Integrated Protocol Handling for ISO18000-2 EM4001, 4100, 4102, TEMIC 5567 or compatible.
- They come with the choice of internal antenna or external antenna and are suitable and for embedded applications and general Electronic Devices. OEM/ODM service is available.
Features
- Support multi-type of cards and protocol: ISO18000-2 EM4001, 4100, 4102, TEMIC 5567 or compatible.
- Communications: Wiegand 26/34(Optional) bits, ASCII, ABA
- Built-in LED & Buzzer alert.
- Provide SDK for development.
Specification
| Appearance | |
|
 |
 |
 |
|
|
|---|---|---|---|---|---|---|---|

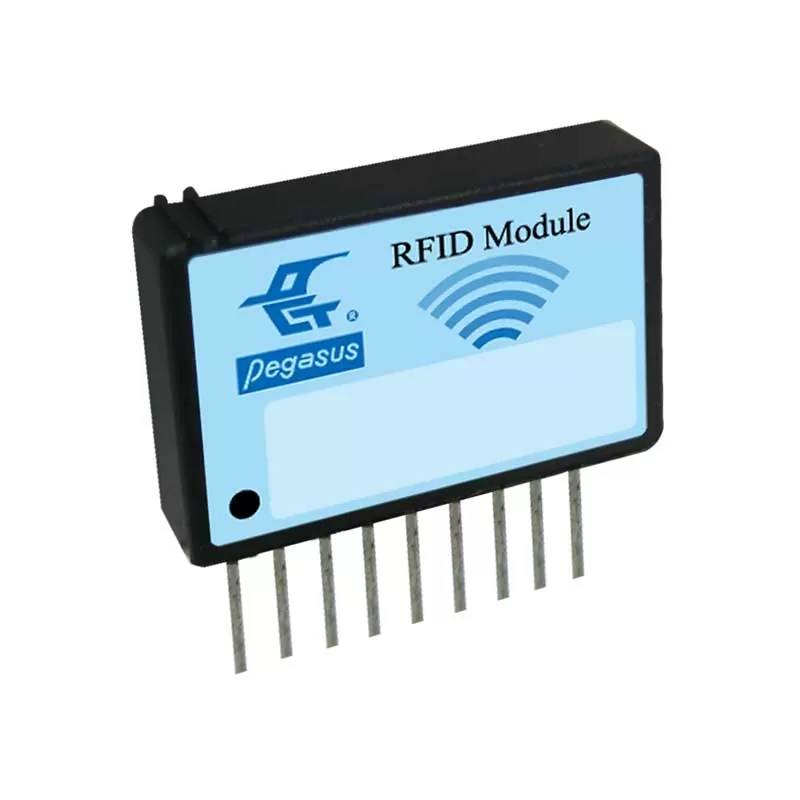

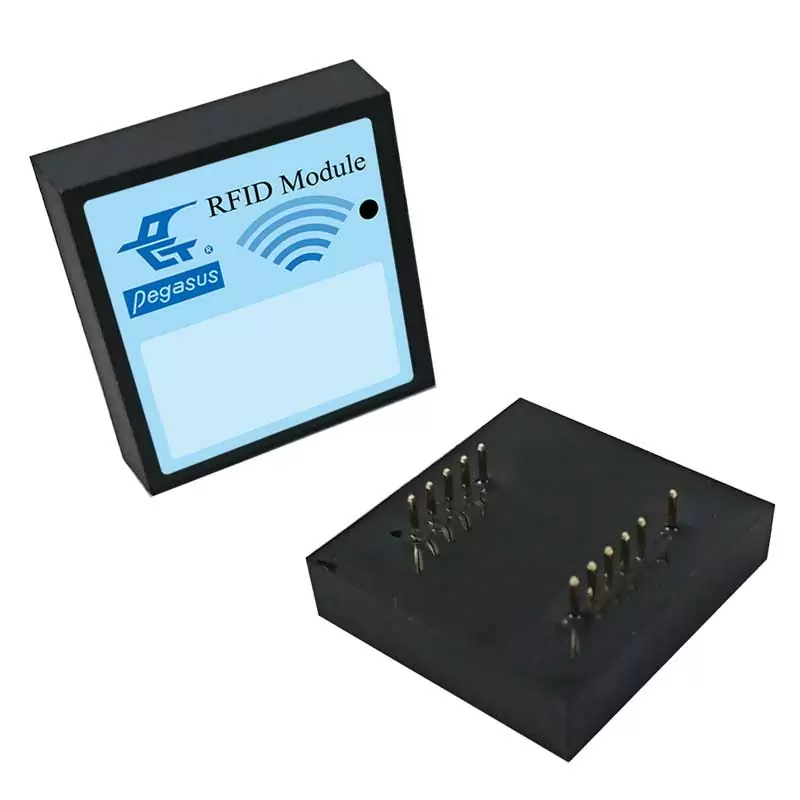

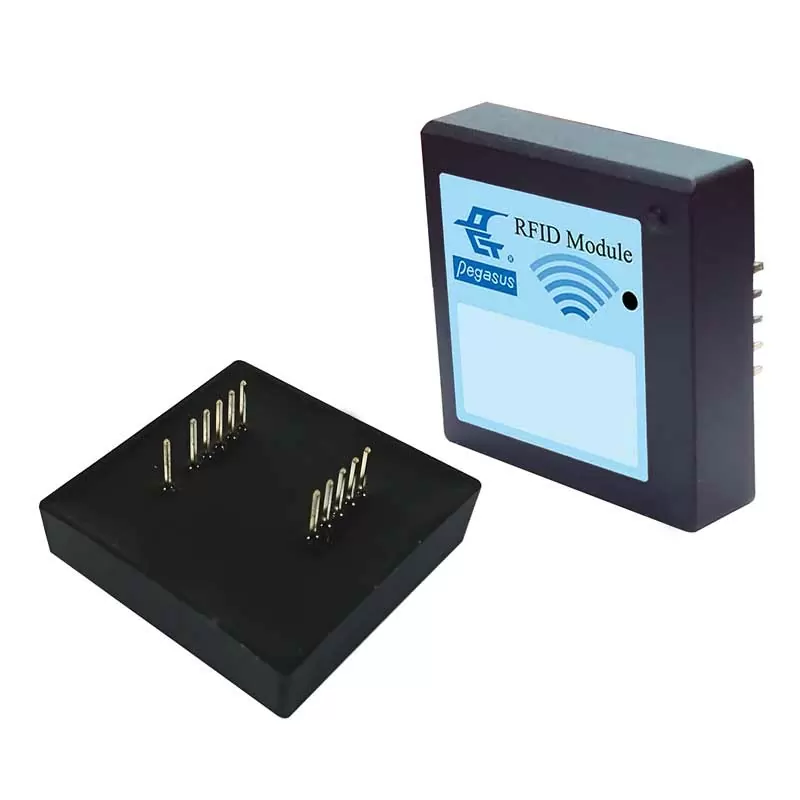

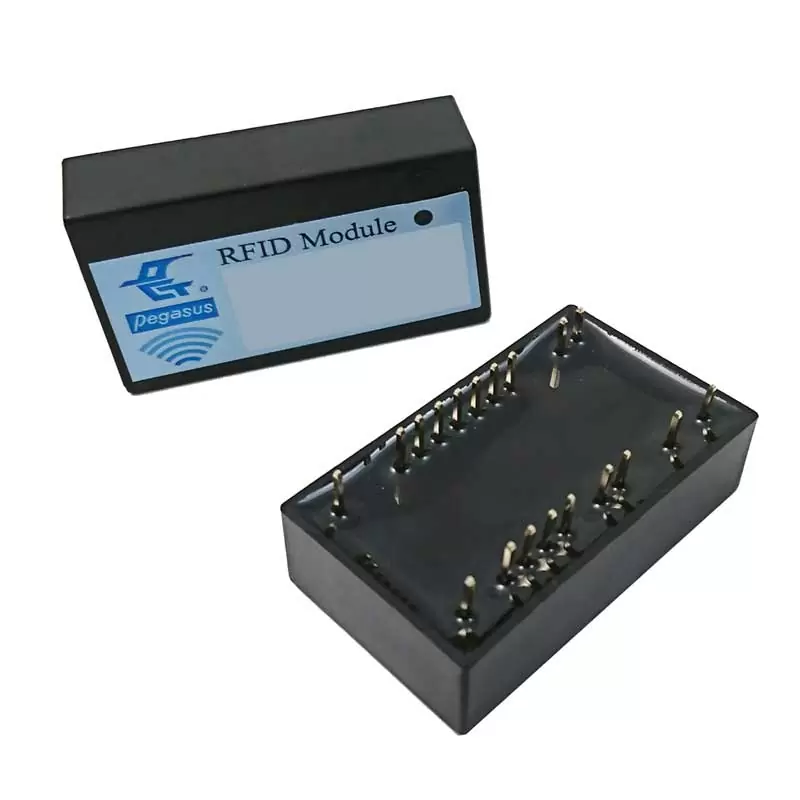

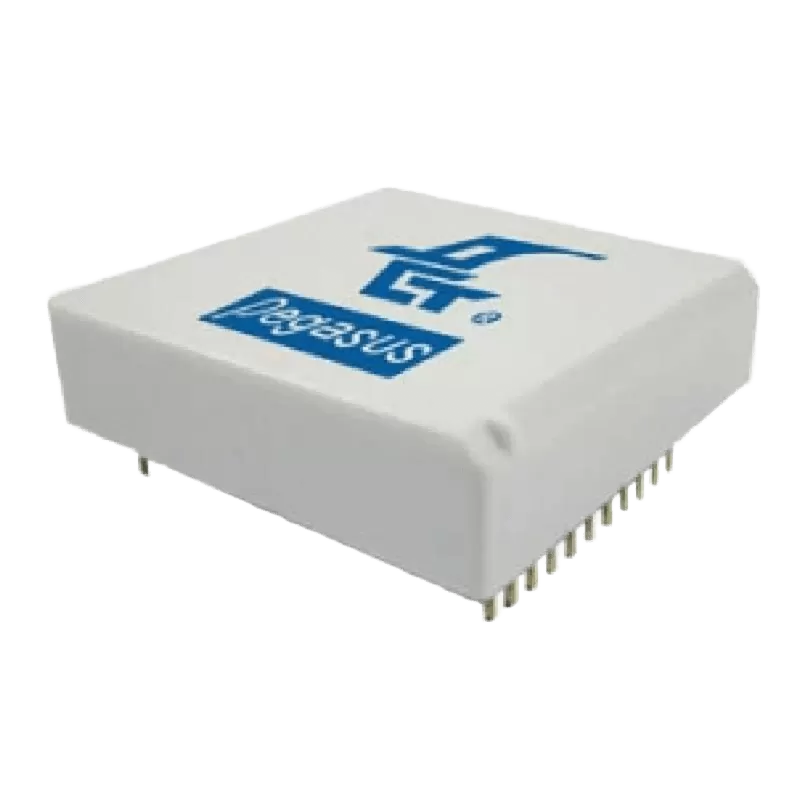

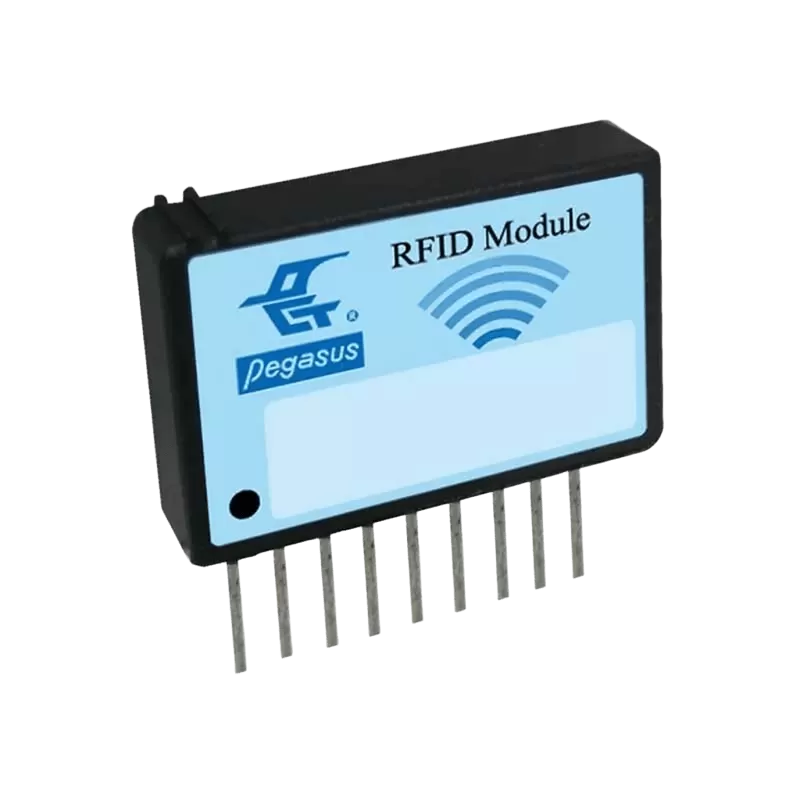

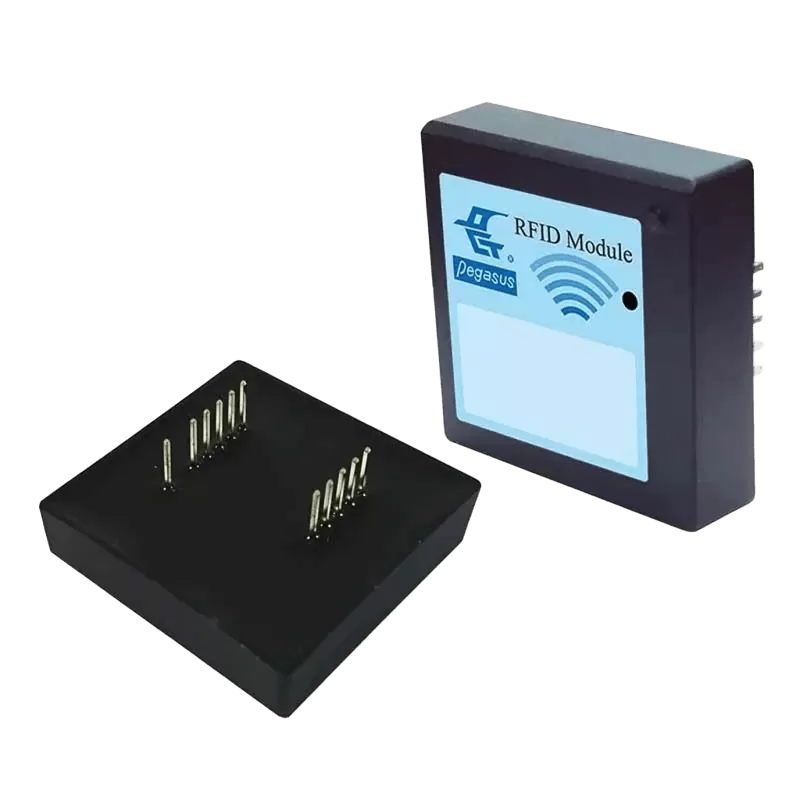

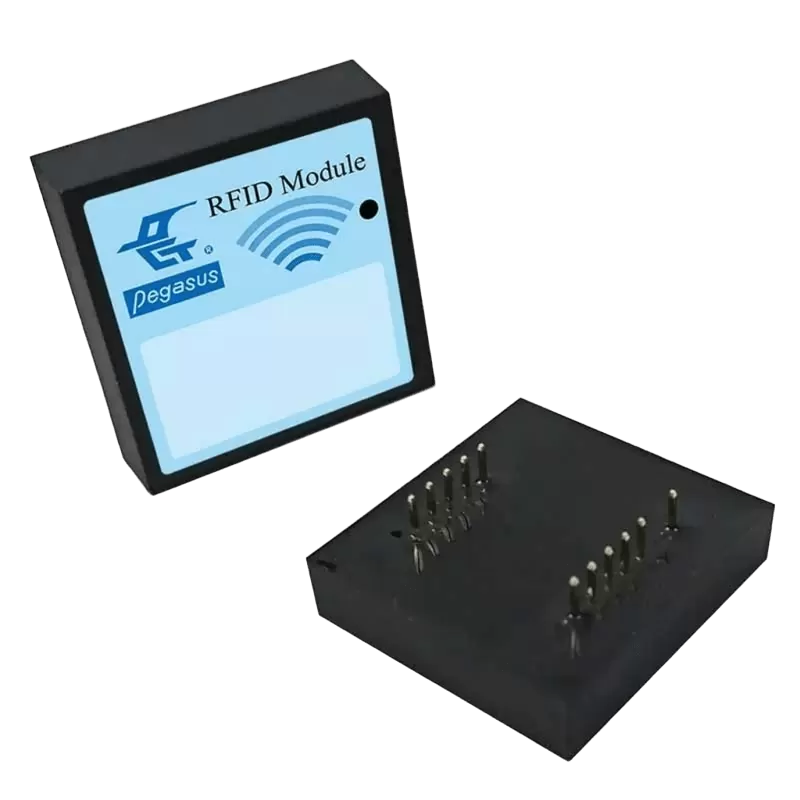

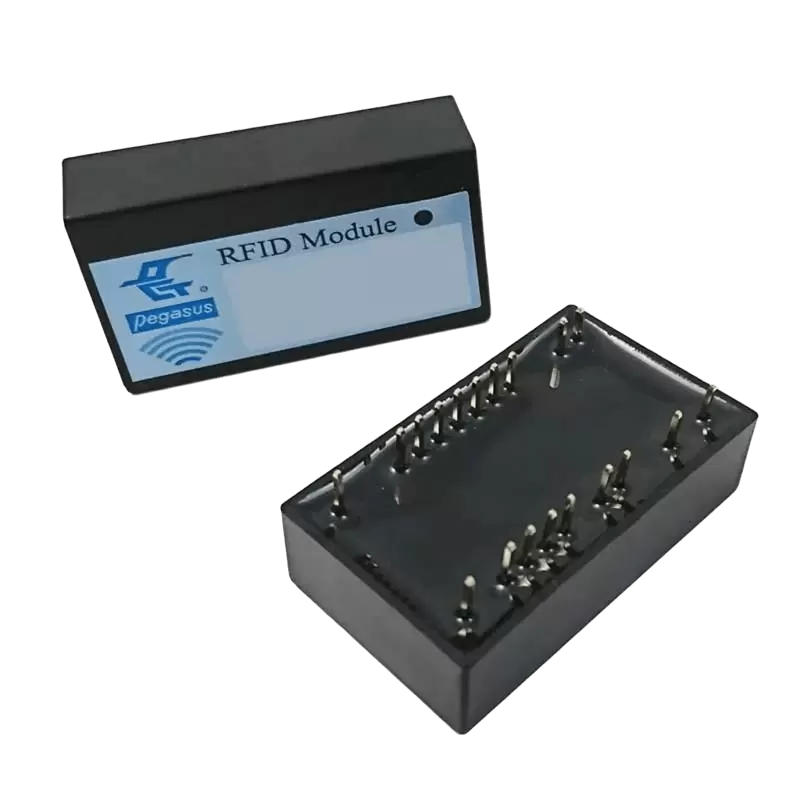

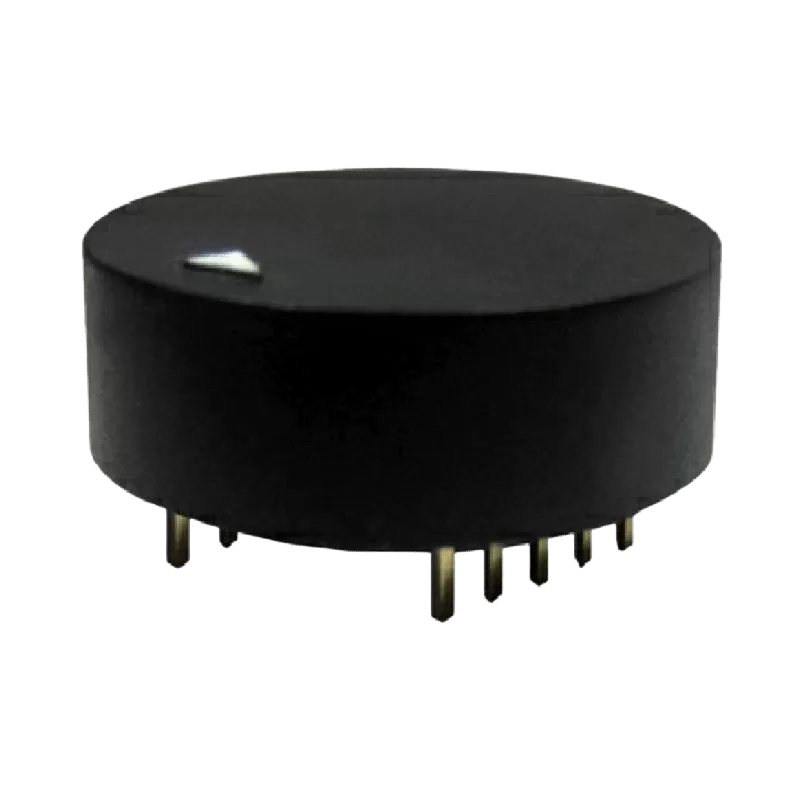

| Model No. | PIEM-AWAS-012A | PXEM-BWS-01 | PIEM-CWAS | PIEM-EWS | PIEM-FWAS | PIEM-FWAS04 | PIEM-HWS-LW Micro Power Standby current: 11μA~18μA |
| Frequency | 125KHz ASK | ||||||
| Compatibility | EM4001, EM4100, EM4102, EM4200, EM4305, TEMIC 5557(ISO11785) , TK4100, T5567, ATA5577 | ||||||
| With internal antenna | YES | NO | YES | YES | YES | YES | YES |
| Reading range | Max.13cm | Depending on tag size, tag type and antenna size | Max.16cm | Max.6cm | Max.10cm | Max.7cm | Max.3.5 cm |
| Output format | Wiegand 26 bits, ASCII, ABA | Wiegand 26 bits, ASCII, ABA | Wiegand 26 bits, ASCII, ABA | Wiegand 26 bits, ASCII, ABA | Wiegand 26 bits, ASCII, ABA | Wiegand 26 bits, ASCII, ABA | Wiegand 26/34 bits / ASCII |
| Wiegand 34 bits (Optional) | Wiegand 34 bits (Optional) | Wiegand 34 bits (Optional) | Wiegand 34 bits (Optional) | Wiegand 34 bits (Optional) | Wiegand 34 bits (Optional) | ||
| Power Voltage | DC 5.5V~18V | DC 3.7V~5.4V | DC 3.7V ~ 5.4V | DC 3.7V ~ 5.4V DC 12V (Optional) |
DC 3.7V ~ 5.4V DC 12V (Optional) |
DC 3.7V ~ 5.4V | DC 3.3V ~ 10V |
| Material | ABS | ||||||
| Dimensions (LxWxH)mm | 40.5 x 24 x 11 | 27 x 17 x 7 | 40 x 40 x 10 | 26(Diameter) x 9 | 26 x 25 x 7 | 26 x 25 x 7 | 32 x 32 x 8 |
Application field
 |
 |
 |
| Counterfeit Forestalling | Asset Management | Contactless payment system |
 |
 |
 |
| Healthcare | Entertainment Facilities | Access Control /Intercom |
 |
 |
 |
| Automobile instrument control | Logistics & Supply chain | Production control |
 |
 |
 |
| Robotics Navigation | Kiosk / POS system | Rental Equipment Solution |
We reserve the right to change the specification without prior notice or obligation!
Specification
Material
ABS
Frequency
125KHz ASK
Compatibility
EM4001, EM4100, EM4102, EM4200, EM4305, TEMIC 5557(ISO11785) , TK4100, T5567, ATA5577
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
