PG-K212BL Tubular Key Switch

Model number: PG-K212BL

Inquiry
Quantity


Introduction

The PG-K212BL is a tubular key switch with LED & tamper switch. Designing with stainless-steel plate and built-in tamper switch which provides trigger of alarm if there’s any attempt to dismantle. The two LEDs supply status indication. Also supplies up to 10,000 different keys for purchasing.

Features

  • Normal close circuit.
  • Easy installation and wiring.
  • Two LEDs provide indication of ON/OFF status.
  • Closed-circuit tamper switch.

Specification

  • Dimensions : 39(W) x 115(L) x 41(H)mm
  • Net Weight : 135g ± 5%
  • Material : Face plate: Stainless steel
  • Installation diameter : 31mm/ 1.22 inch
  • Contact : Silver plate
  • Maximum Limit Power : 4A 125VAC, 2A 250VAC
  • LED Power Input : DC +12V
  • Contact Resistance : 10Milli-Ohms Max.
  • Insulation Resistance : 500 Meg-Ohms Min.(500VDC)
  • Dielectric Strength : 1500VAC-1Minute

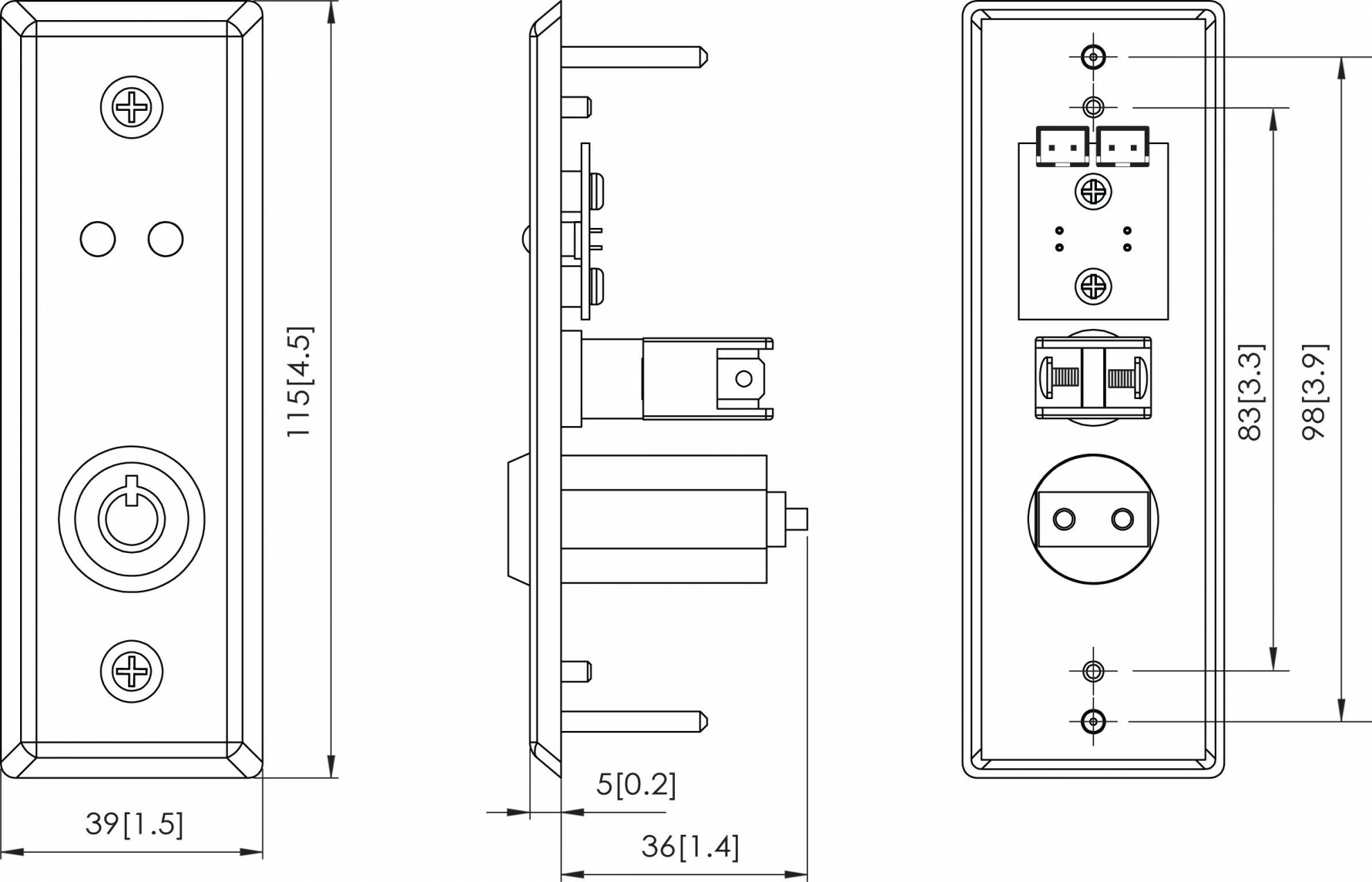

Dimensions: Unit(mm/inch)

/storage/system/accessories/Dimensions_for_PK-K212BL-E.jpg

We reserve the right to change the specification without prior notice or obligation!
