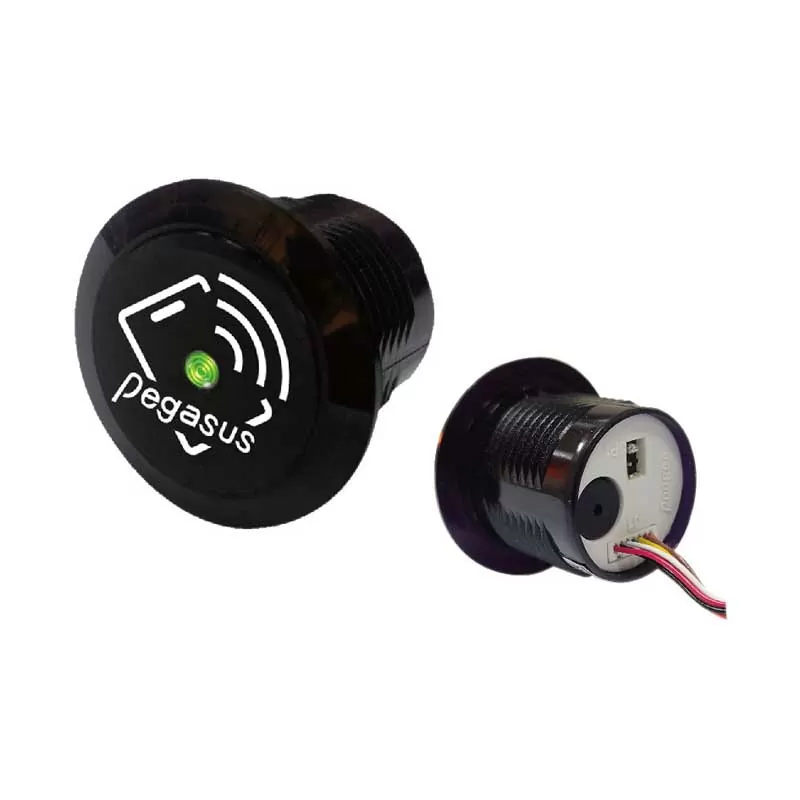

Model：PP-30
31MM Mini Flush-Mount RFID Reader
Compare
Product
Features
- Mini Flush-Mount RFID reader
- Support 125KHz (EM / H.I.D.) & 13.56MHz(Mifare / DESFire / FeliCa / ICODE-2(Optional))
- Customized Mifare Reader to read specific sector/block.
- Communications: TTL / RS-232
- Output Format: Wiegand 26 / 34 / 58bits
Specification
| Model No. | PP-30N | PP-30H | PP-30M0 |
|---|---|---|---|
| Frequency | 125KHz ASK | 125KHz FSK | 13.56MHz |
| Compatibility | ISO18000-2 EM4001, 4100, 4102, TEMIC 5567 | H.I.D. | ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESFire, NFC (card simulation), ISO14443 B(Optional), ICODE-2(Optional) |
| Power Voltage | DC10~24V | DC9~12V | |
| Output Format/ Interface |
Wiegand 26/34bits, TTL/ RS-232 |
Wiegand 34~58 bits, TTL | |
| IP Rating | IP54 | ||
| Dimesions(LXWXD)MM | Diameter39.7x30.2 | ||
Dimension: Unit(mm)

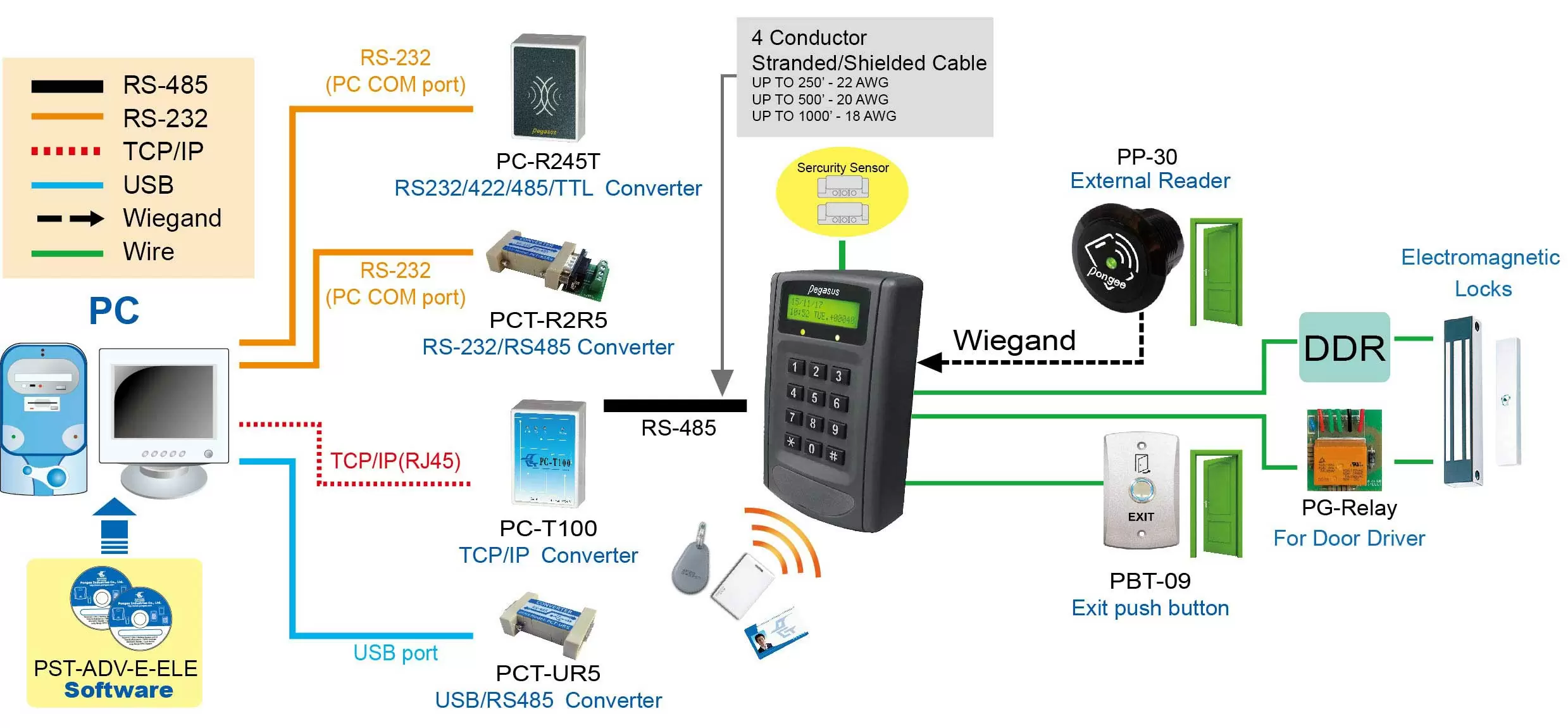

Application field
 |
 |
 |
| Access control system | Mailbox management system | Intercom system |
 |
 |
 |
| Lift access control system | Charging station | HMI、PLC |
 |
 |
 |
| Production control | Vehicle rental system | Kiosk/POS System |
 |
 |
|
| Membership System | Library automation |
Ordering information
※ Other customer request specifications are welcomed.
Mifare is a registered trademark of NXP B.V.
Mifare DESFire is a registered trademark of NXP B.V.
FeliCa is a trademark of Sony Corporation.
Specifications subject to change without notice for further modification.
Specification
Model No.
Function
PP-30VNWTR2
125MHz EM reader, Wiegand 26/34bits, TTL/RS-232, DC10~24V
PP-30VHWTR2
125MHz H.I.D. reader, Wiegand 26/34bits, TTL/RS-232, DC10~24V
PP-30M0WT
13.56MHz Mifare reader,Wiegand 34~58bits, TTL, DC9~12V
PP-30/M8W26
13.56MHz Mifare reader, Pegasus Key, Wiegand 26 bits, DC9~12V
PP-30/M8T
13.56MHz Mifare reader, Pegasus Key, TTL, DC9~12V
PP-30/M1W26
13.56MHz Mifare reader, Customized proprietary key, Wiegand 26 bits, DC9~12V
PP-30/M1T
13.56MHz Mifare reader, Customized proprietary key, TTL, DC9~12V
