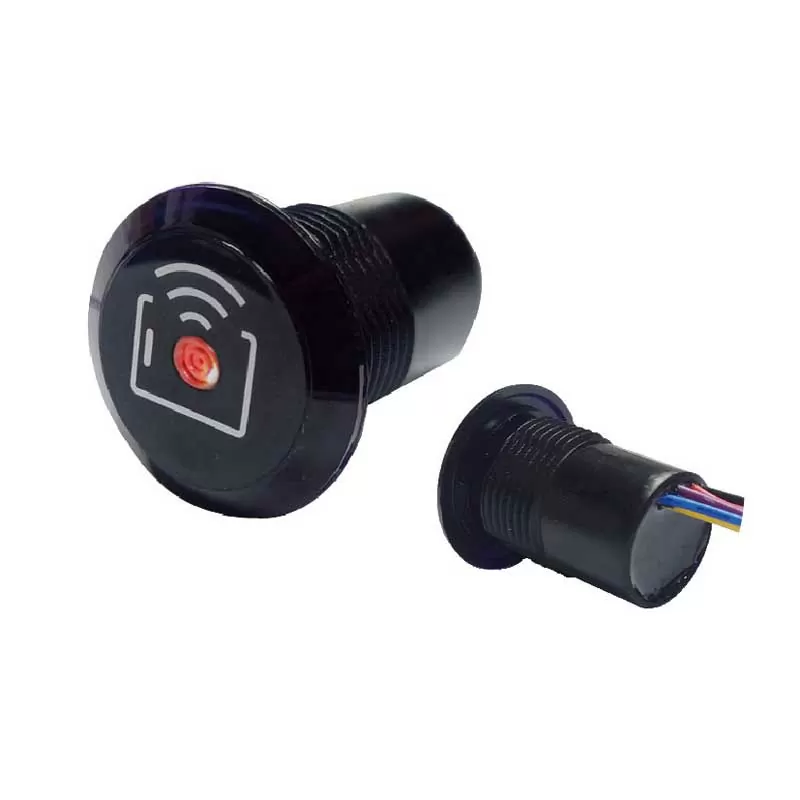

Model：PP-22

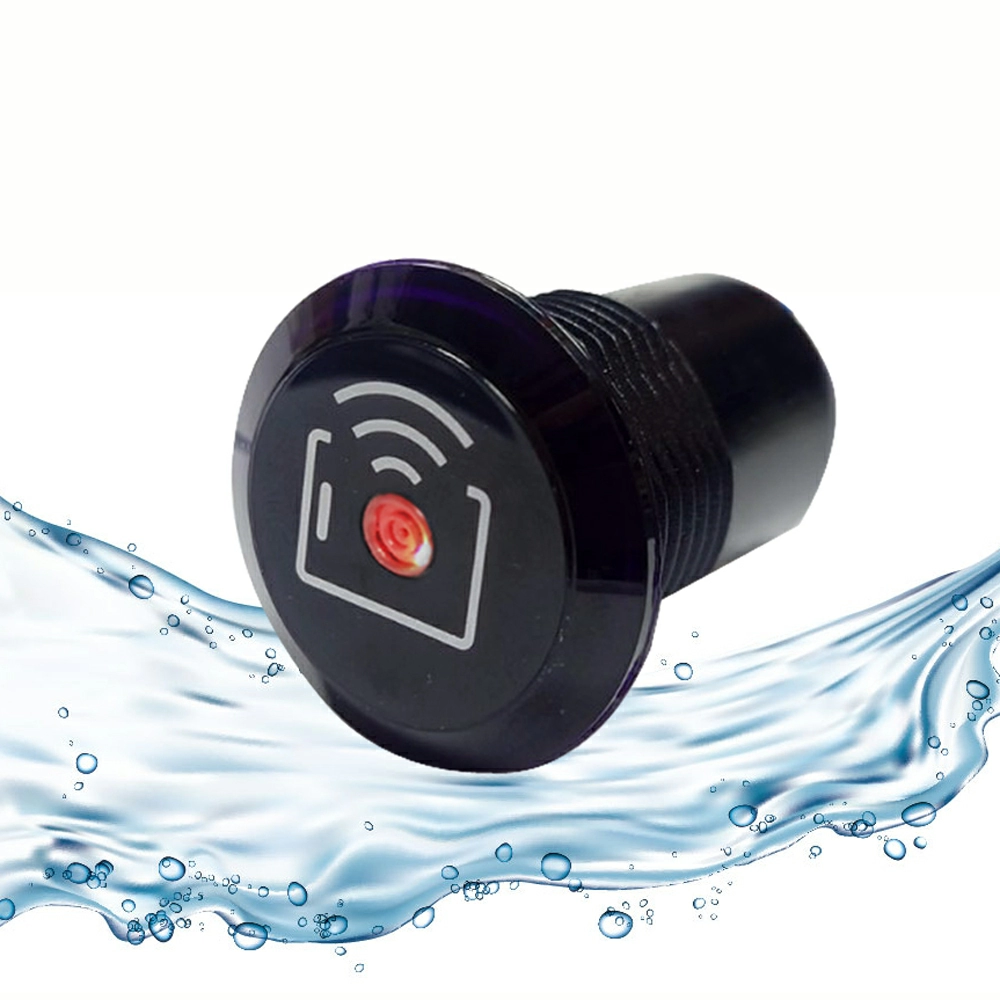

22MM Mini Flush-Mount RFID Reader
Compare
Product
Features
- Mini Flush-Mount RFID reader
- Support 13.56MHz(Mifare / DESFire / ICODE-2(Optional))

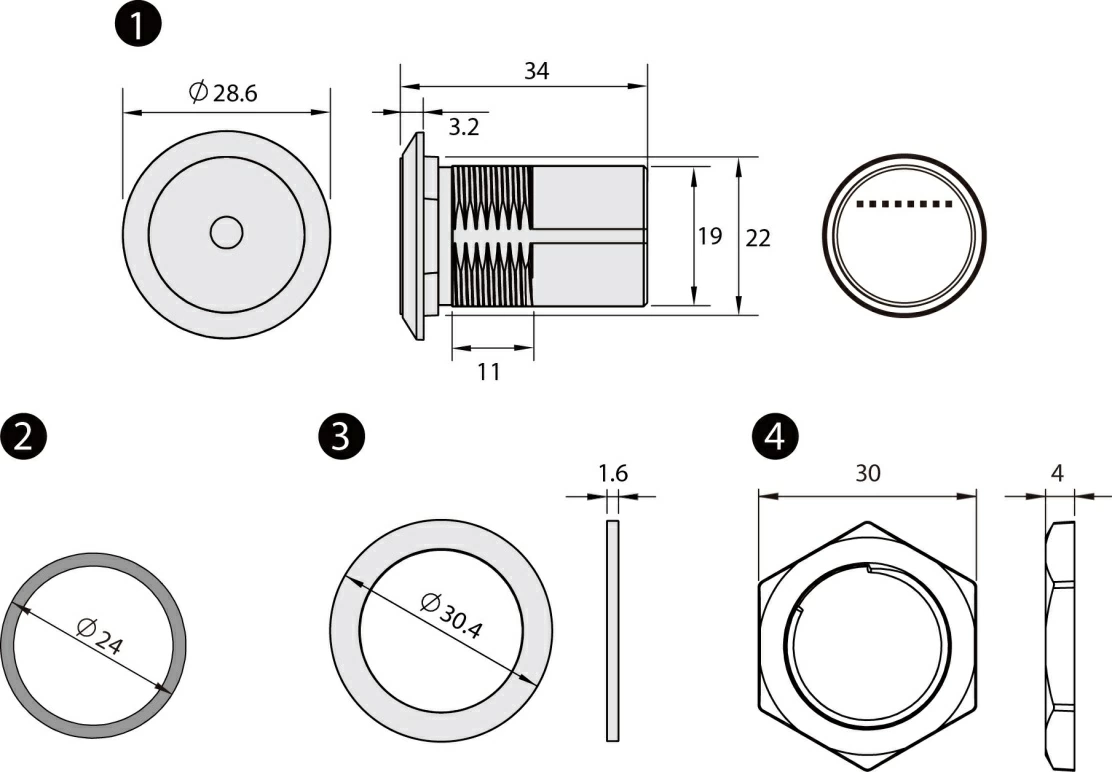

Dimension: Unit:mm
Application field
 |
 |
 |

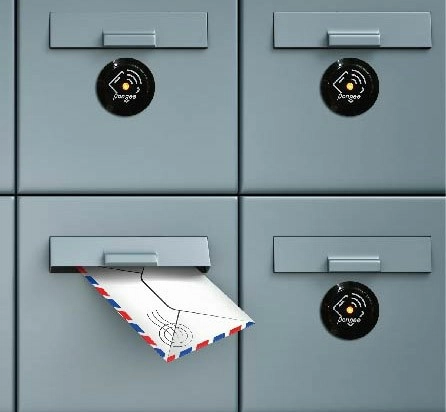

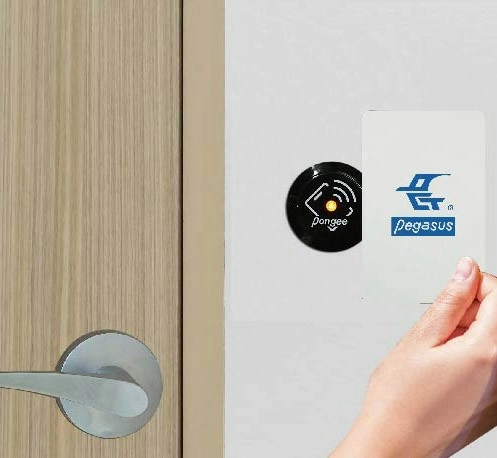

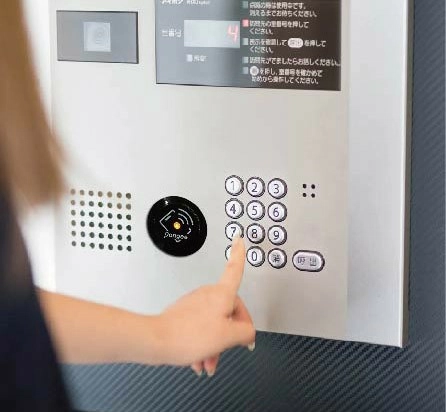

| Access control system | Mailbox management system | Intercom system |
 |
 |
 |

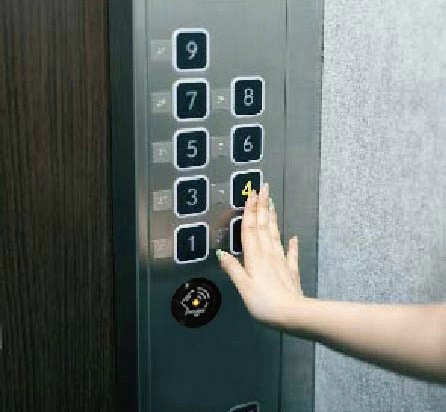

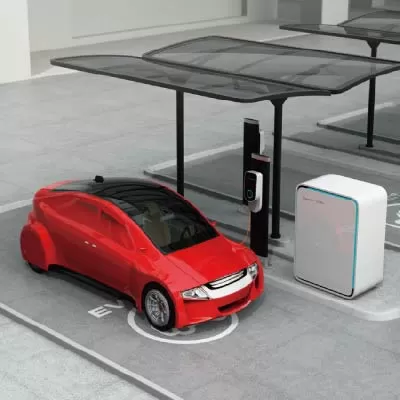

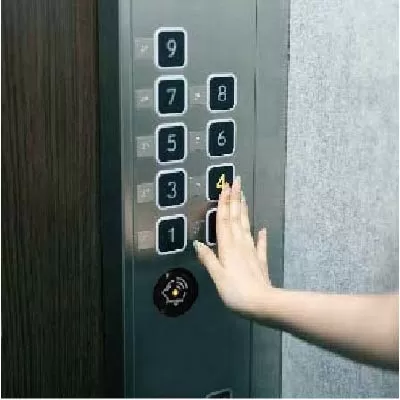

| Lift access control system | Charging station | HMI、PLC |
 |
 |
 |
| Production control | Vehicle rental system | Kiosk/POS System |
 |
 |
|
| Membership System | Library automation |

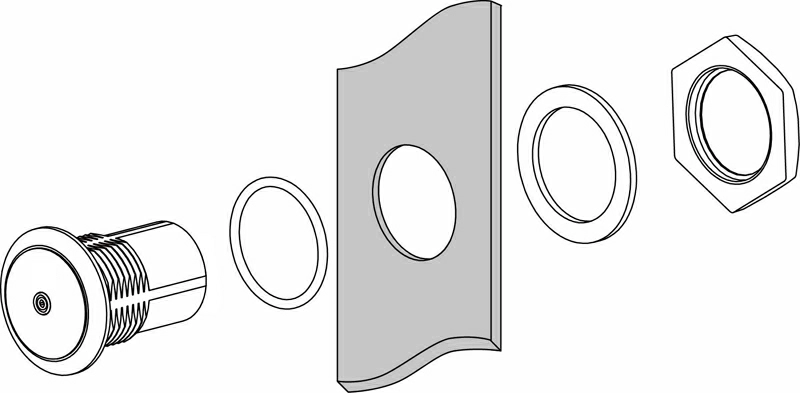

How to assembly
Ordering information
| PP-22M0WT | 22MM Mini Flush-Mount Mifare Reader, Wiegand 26~58 bits/UART |
| PP-22M0WTS | 22MM Mini Flush-Mount Mifare Reader, Wiegand 26~58 bits/UART, Card No. in positive |
Mifare is a registered trademark of NXP B.V.
Mifare DESFire is a registered trademark of NXP B.V.
Specifications subject to change without notice for further modification.
Specification
Frequency
13.56MHz
IP Rating
IP68
Model No.
PP-22
Power Voltage
DC 7~28V
Compatibility
ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESFire, NFC (card simulation), ISO14443 B(Optional), ICODE-2(Optional)
DIMESIONS(LXWXD)MM
Diameter28.6x22
Output Format/ Interface
Wiegand 26~58 bits/UART
