Model：PFP-8036D
Fingerprint access controller
Product
Features
- Fingerprint proximity reader support 1000 fingerprint capacity
- Support 125KHz & 13.56MHz
- PC base or standalone
- Possible in 8 digits ID for time attendance recording.
- With complete door release, held monitoring and intruded alarm period and error trials
Specifications
| MODEL NO. | PFP-8036D | PFP-8036M |
| FREQUENCY | 125KHz & 13.56MHz | 13.56MHz |
| COMPATIBILITY | ISO18000-2 EM4001, 4100, 4102, TEMIC 5567 ISO14443 A, MIFARE |
ISO14443 A, MIFARE |
| FINGERPRINT CAPACITY | 1,000 | |
| USER CAPACITY | 1,000 card capacity, 100,000 events | |
| BATTERY | YES | |
| USB DISK | YES | |
| POWER VOLTAGE | DC 9V | |
| INTERFACE | RS-232 / RS-485/ TCP/IP(Optional) | |
| WIEGAND INPUT | Wiegand (26/34 bits) | |
| KEYPAD | YES | |
| MATERIAL | ABS | |
| DIMENSIONS (LXWXH)mm | 175x130x45 | |

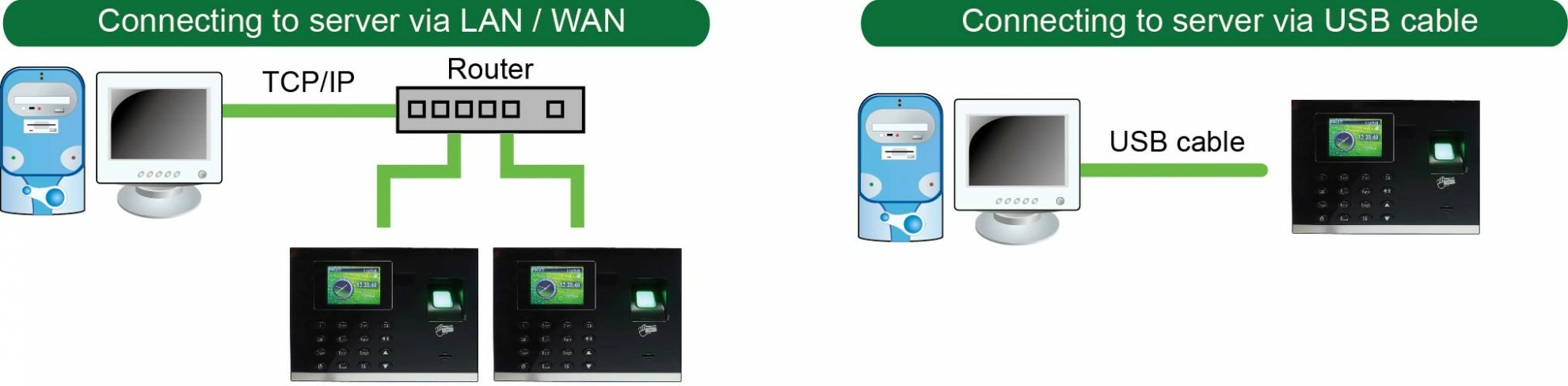

Data communication

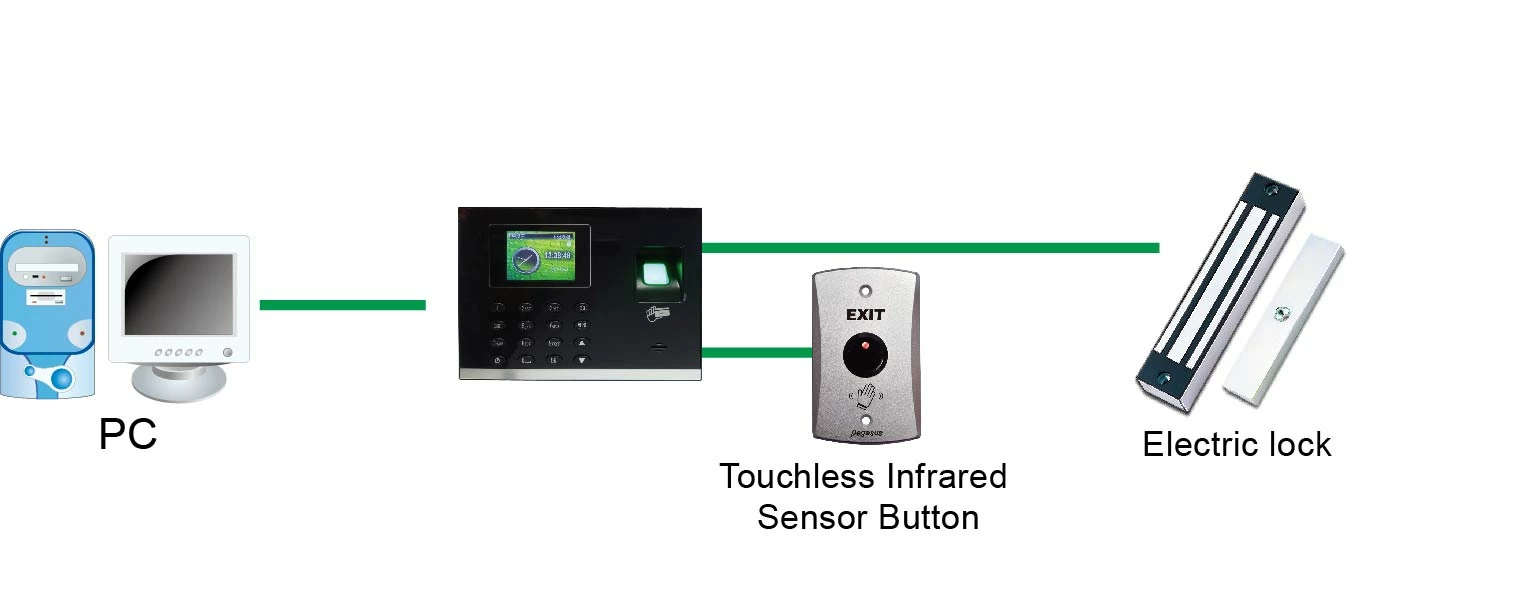

Configuration 1

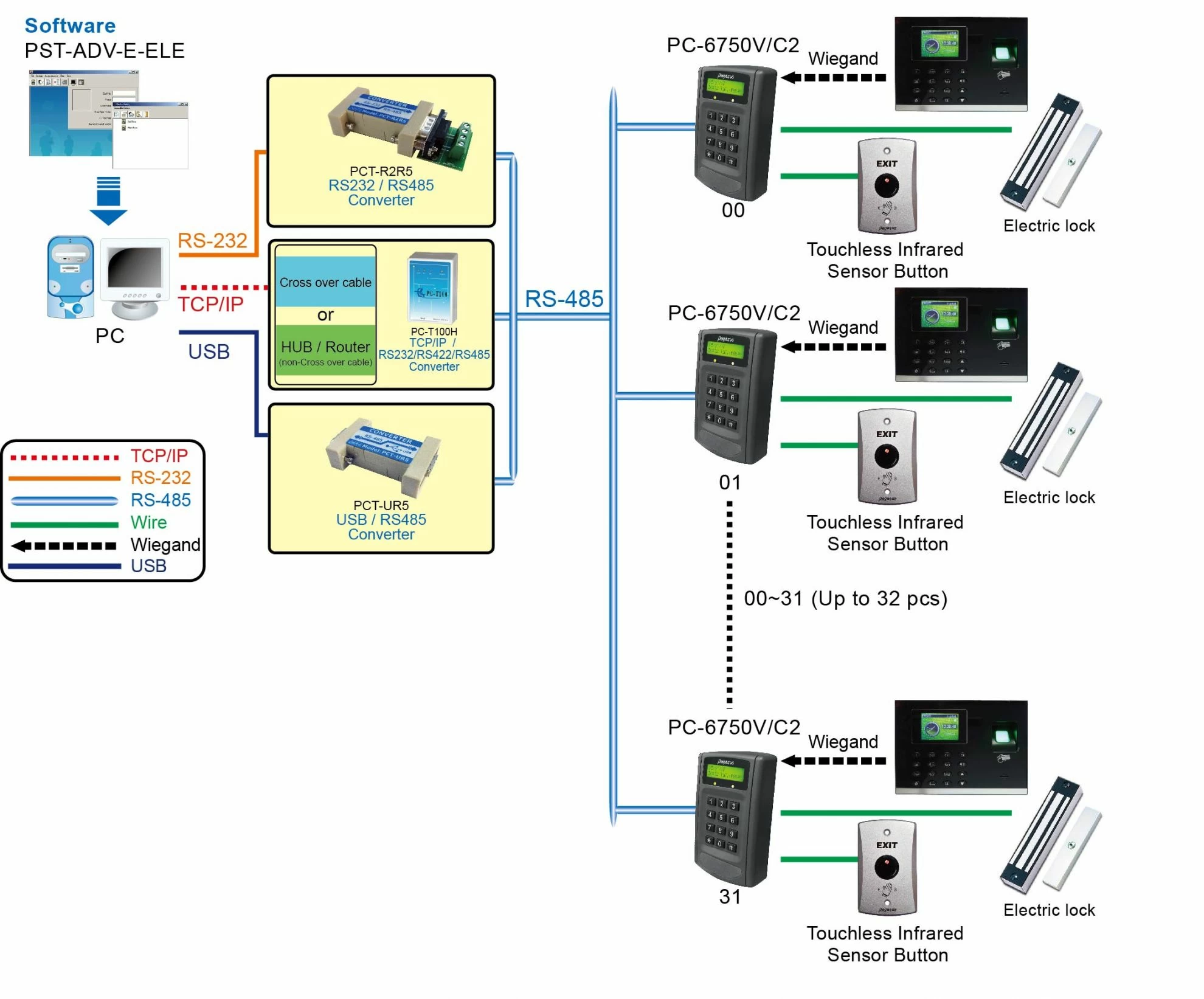

Configuration 2
Mifare is a registered trademark of NXP B.V.
We reserve the right to change the specification without prior notice or obligation!
Specification
Model No
PFP-8036D ; PFP-8036M
Frequency
125KHz & 13.56MHz ; 13.56MHz
Compatibility
ISO18000-2 EM4001, 4100, 4102, TEMIC 5567 ISO14443 A, MIFARE ; ISO14443 A, MIFARE
Fingerprint Capacity
1,000
User Capacity
1,000 card capacity, 100,000 events
Battery
YES
USB disk
YES
Power Voltage
DC 9V
Interface
RS-232 / RS-485/ TCP/IP(Optional)
Wiegand Input
Wiegand (26/34 bits)
Keypad
YES
Material
ABS
Dimensions (L x W x D) mm
175 x 130 x 45
