Model：PFP-3702V

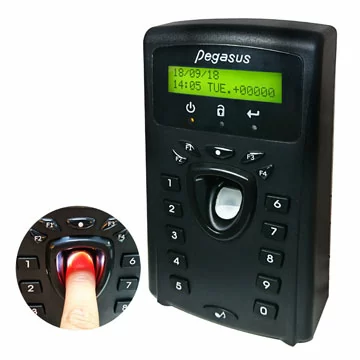

Fingerprint access controller
Compare
Product
Features
- Fingerprint proximity reader support 3000 fingerprint capacity
- Support 125KHz & 13.56MHz
- PC base or standalone
- Possible in 8 digits ID for time attendance recording.
- With complete door release, held monitoring and intruded alarm period and error trials

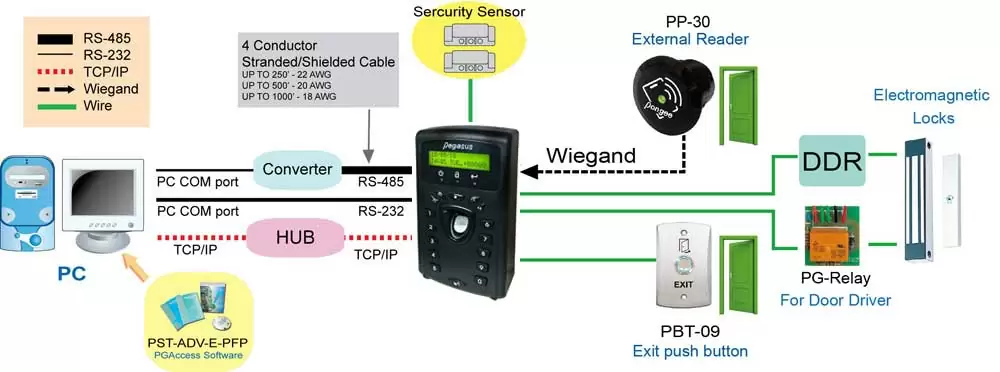

System configuration

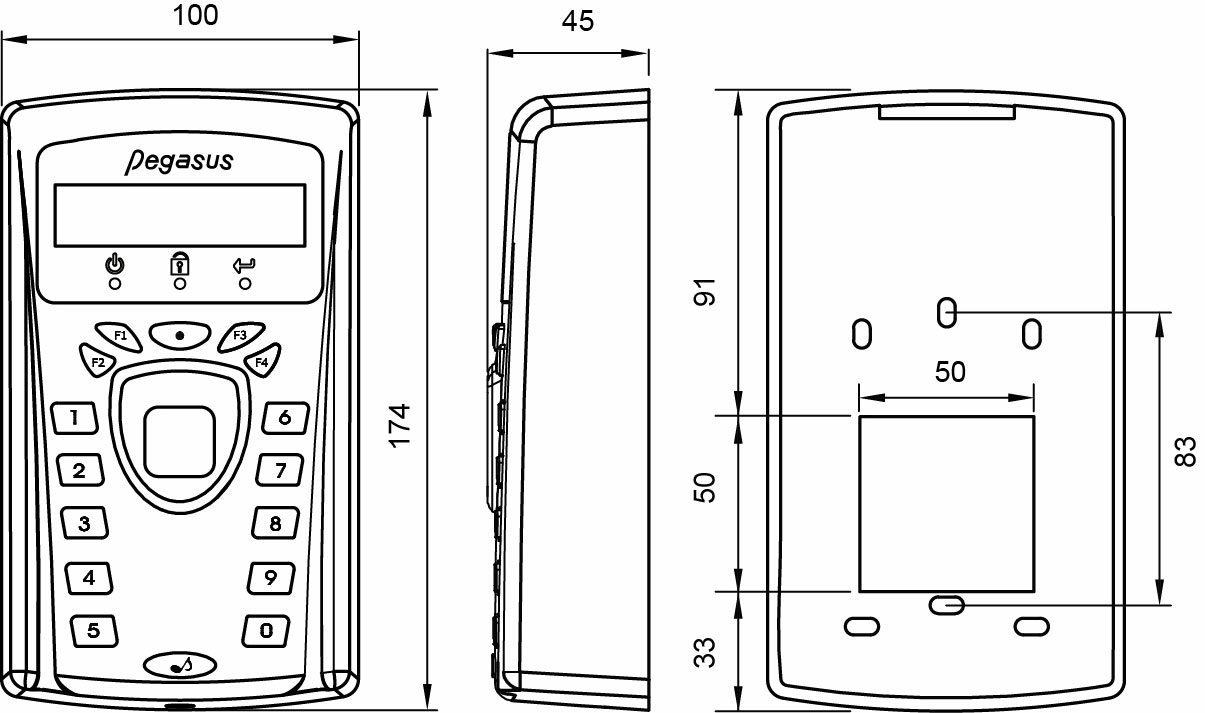

Dimension: mm
Mifare is a registered trademark of NXP B.V.
Mifare DESFire is a registered trademark of NXP B.V.
Mifare Ultralight is a registered trademark of NXP B.V.
We reserve the right to change the specification without prior notice or obligation!
Specification
Material
ABS
IP Rating
IP54
Interface
RS-232 / RS-485/ TCP/IP(Optional)
User Capacity
32,000 card capacity, 32,000 events
Power Voltage
DC 12V
WIEGAND INPUT
Wiegand (26/34 bits)
Input
Exit push button / Door monitor / Security sensor
Output
Alarm output / Tamper switch output / Electric lock output
Keypad
YES
Dimensions (LxWxH)mm
174x100x45
Battery
---
USB disk
---
