Model：DA-66SL
Electric Dropbolt with Key Cylinder– Fail Secure (Ultra Narrow)
Compare
Product
Features
- Ultra Thin & Narrow innovative design, Smart / Simple / Elegant
- Door position status monitor output contact
- Adjustable door lock delay timer
- Release door when failure or power off
- For aluminum door, steel door, brass door, wooden door
Accessories

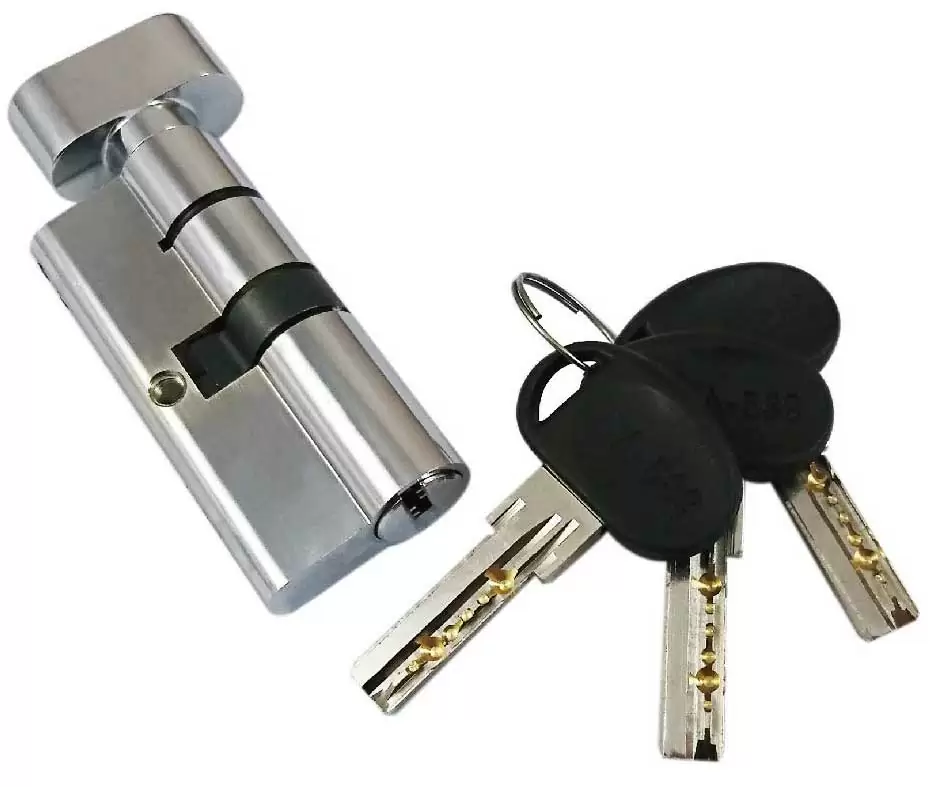

SL-70E: Euro-profile Thumb Turn Cylinder(Length70mm / Door thickness 44~49mm)

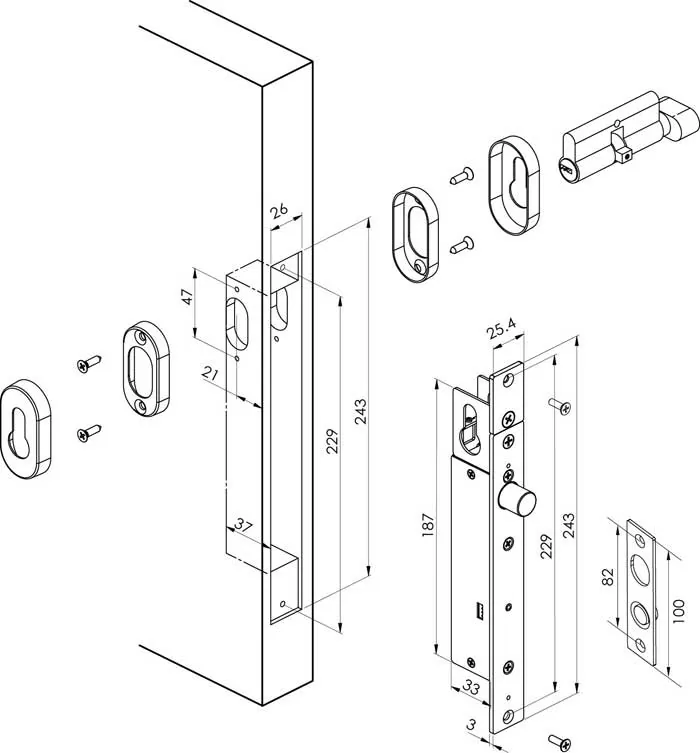

Dimension: mm
We reserve the right to change the specification without prior notice or obligation!
Specification
Net Weight (g)
350g±1%
LED indicator
YES
Model No.
DA-66SL
Type
Fail secure
Voltage / Current
DC12V(Standby:230mA , Working:1000mA)
Time Delay
10 Sec. / 5 Sec. / 4 Sec.
Door position sensor
YES
Lock
187x23x33
Bracket
SL-70E: Thumbturn Euro Cylinder lock (70mm), Door thickness 44~49mm)
