Model：DA-64NS

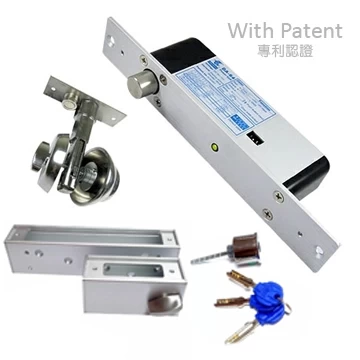

Electric Dropbolt - Fail-Secure
Product
Features
- Door position status monitor output contact and indicator
- Adjustable door lock delay timer
- Optional Deadbolt Releaser (Release door when failure or power off)
- For aluminum door, steel door, brass door, wooden door
Specification
| Model No. | DA-64NS | |
| Type | Fail-Secure | |
| Voltage / Current | DC 12V (Standby: 18 mA / Working: 600 mA) | |
| Time Delay | 3 / 6 / 10 sec. | |
| LED Indicator | YES | |
| Door Position Sensor | YES | |
| Dimensions (L x W x D) | Faceplate | 204 x 33 x 3 mm |
| Lock Body | 132 x 30 x 42 mm | |
| Net Weight | 675 g ± 1% | |
| Bracket | Releaser: DAR-24 | |
Dimension: mm
【Accessories 1】

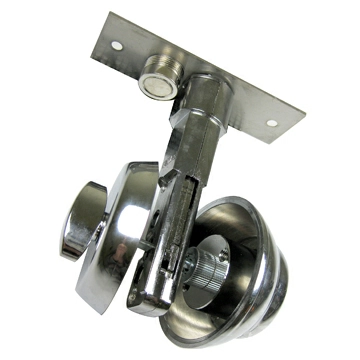

Deadbolt releaser DAR-24
Deadbolt releaser is the device installed on the door panel to pair with the general deadbolt lock which is installed on the door jamb for auxiliary releasing the bolt during either in damaged or power failing condition. Especially for the fail safe type power bolt which is unable to release the bolt during power failure.
 |
 |
 |

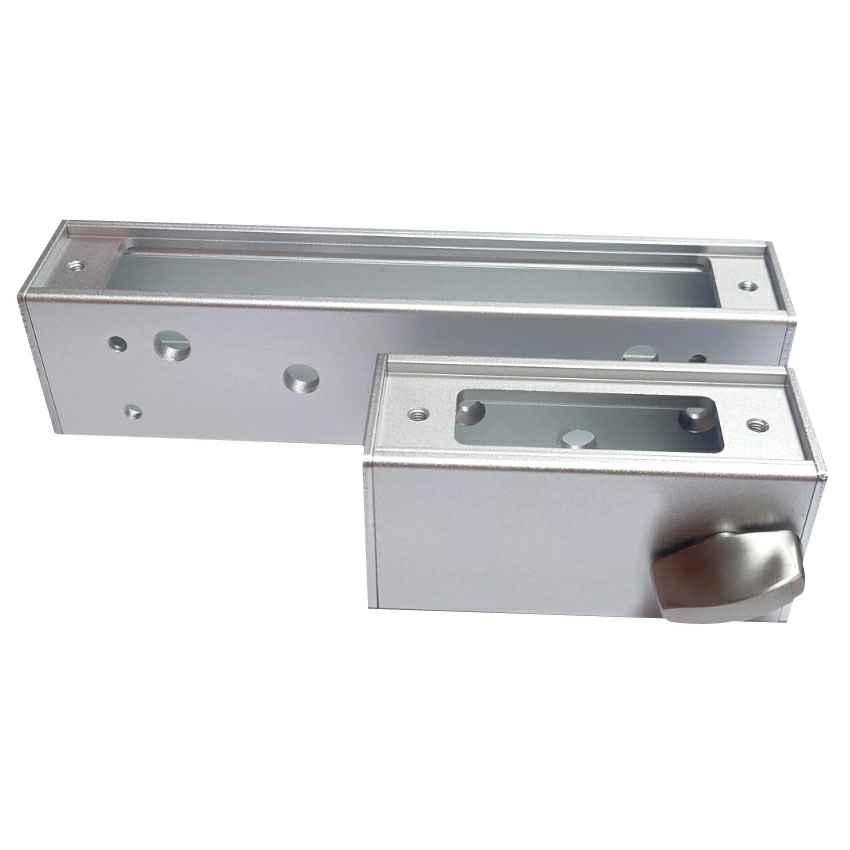

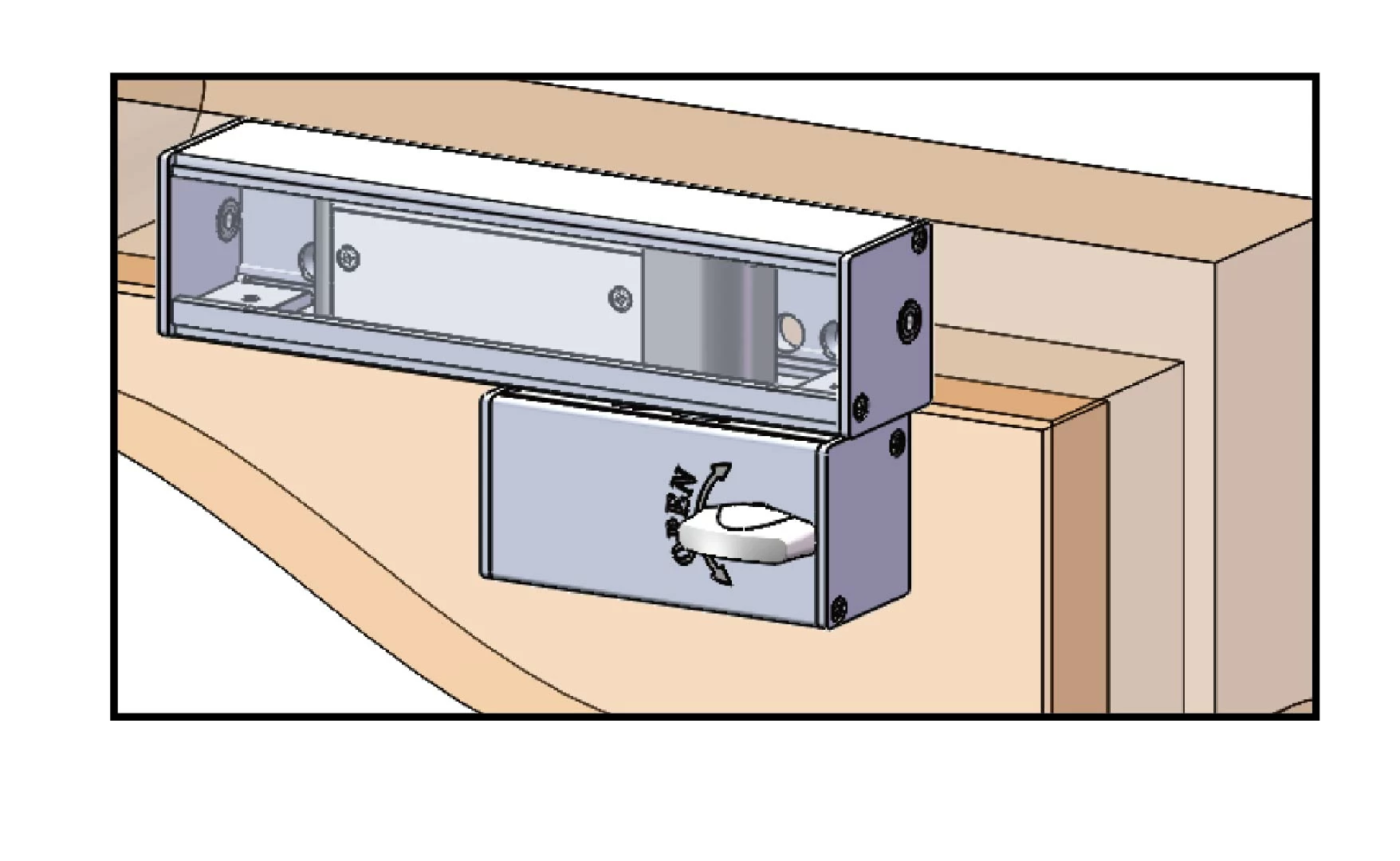

【Accessories 2】
 |
 |
【Accessories 3】

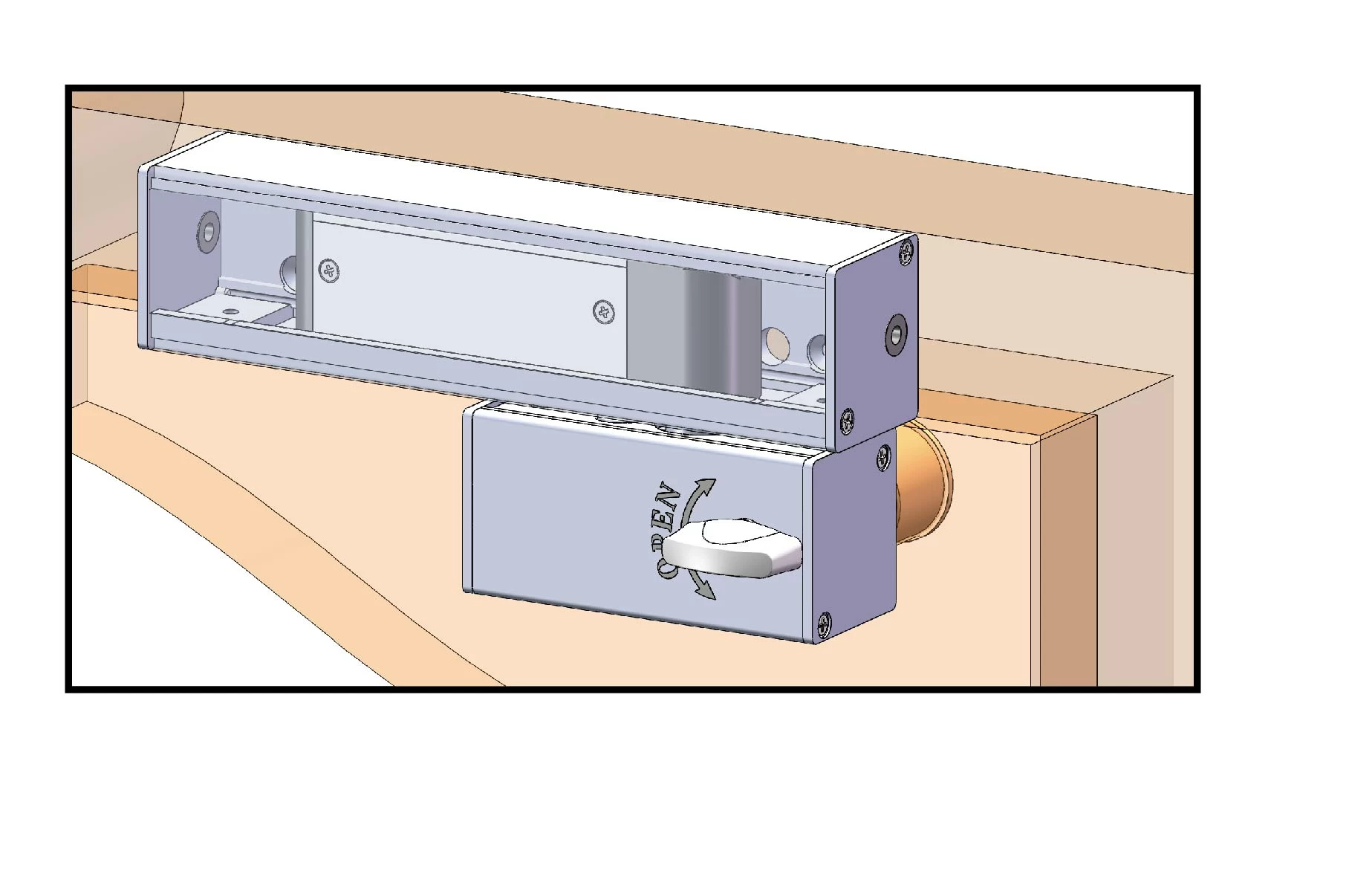

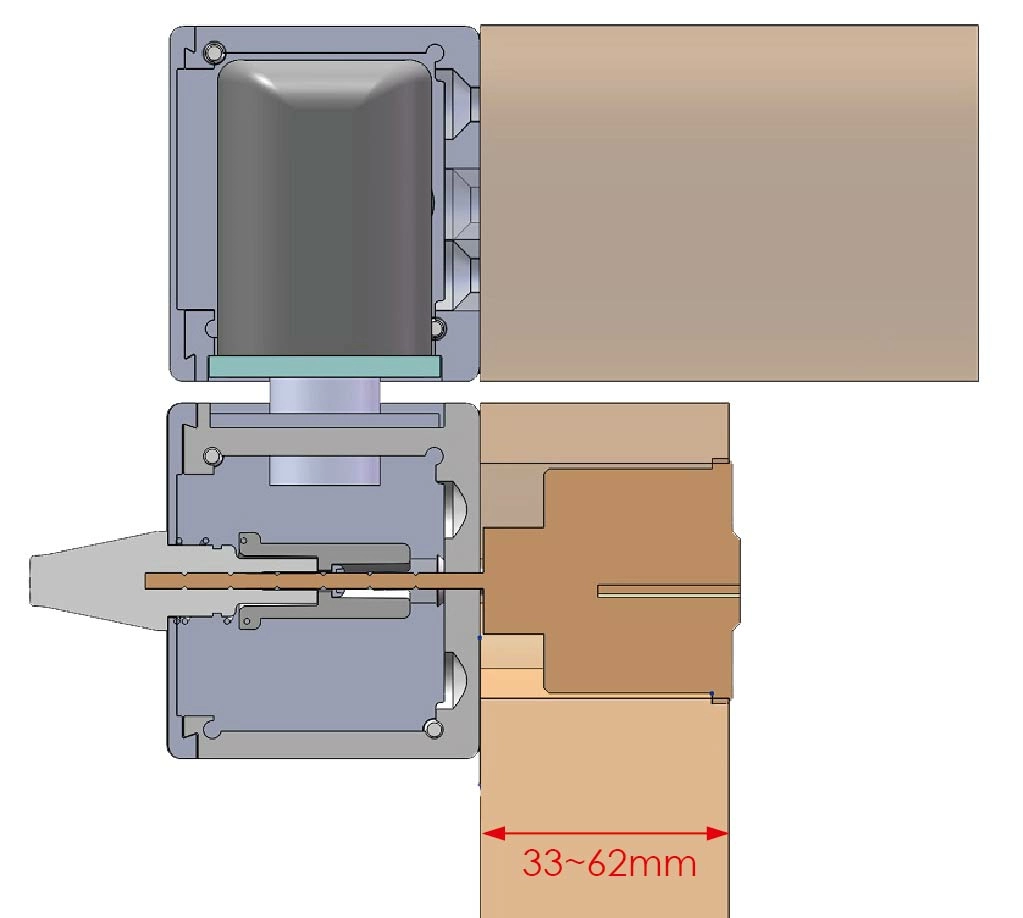

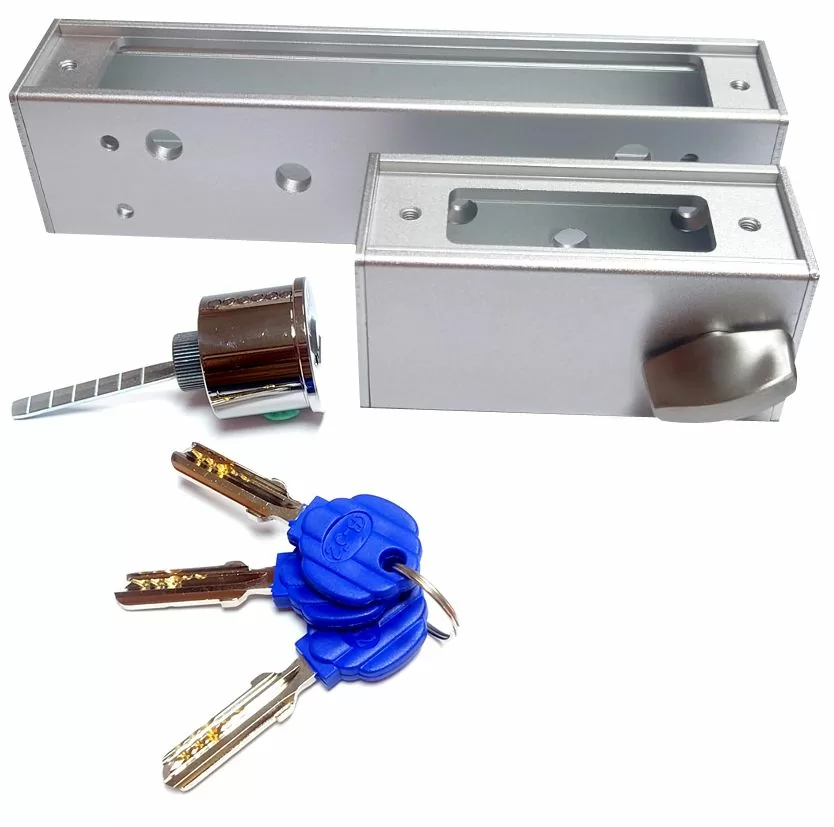

Deadbolt releaser PG-B64K2
 |
 |
We reserve the right to change the specification without prior notice or obligation!
Specification
Model No
DA-64NS
Type
Fail-Secure
Voltage / Current
DC12V(Standby:18mA, Working:600mA)
Time Delay
10 Sec. / 6 Sec. / 3 Sec.
LED indicator
YES
Door position sensor
YES
Dimensions (L x W x D) mm
Faceplate：204x33x3 / Lock：132x30x42
Net Weight (g)
675g±1%
Bracket
Releaser: DAR-24
