PG-206K Metal Digital Access Control KeypadPG-206K Metal Digital Access Control Keypad

Model number: PG-206K


Product Description

PG-206K Metal Digital Keypad uses microcomputer processor which makes system steadier. With million combinations of key code, it is safe to open the door by key code and no key needed. This keypad supports door monitor, door release time control and other alarm functions. Beside, It can work with burglarproof or safety systems.


  • Registered user and administrator pincode are saved in the memory which prevents these pincodes disappear during a power outage.
  • 1~7 combinations of password from 4 to 8 digits.
  • Programmable door release time, alarm time from 1 to 99 seconds through keypad.
  • Programmable trials from 1 to 9 times through keypad.

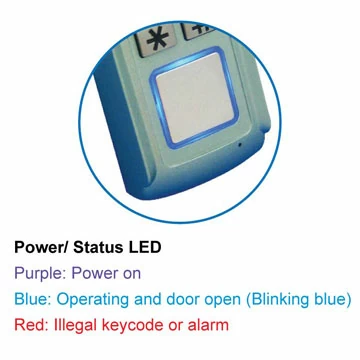

  • Intelligent functions programmable through keypad and LED’s indication.
  • With tamper switch and one loop sensor, the alarm signal will output when case is tampered or loop is intruded.
  • Design with waterproof metal case.


  • Monitor inputs: Exit push button , case tamper, door contact
  • Monitor outputs: Exit push button, alarm output, tamper switch alarm output
  • Power input: DC 12V ±10%
  • Standby / Working current: 32mA±10% @12 DC / 49mA±10% @12 DC
  • Material: Zinc alloy
  • Waterproof: Yes
  • Dimensions (L x W x H)(mm/inch): 150 x 44 x 22 / 5.9 x 1.7 x 0.9
  • Net Weight:  255g±5%
  • Operating temperature: -10oC~ 70oC
  • Storage temperature: -20oC ~ 85oC
  • Humidity: 20%~90% RH

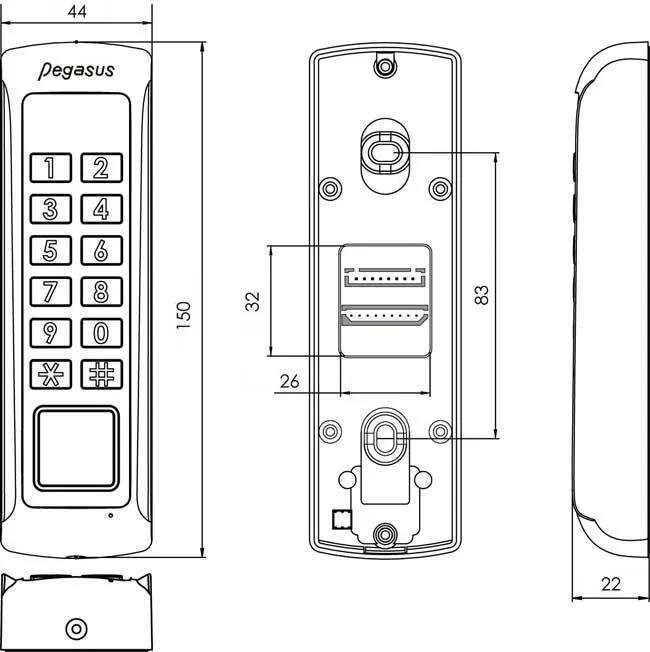

Dimensions: mm


Ordering information

PG-206KMetal digital access control keypad,1~7 door codes
PG-206KCMetal digital access control keypad,1~150 door codes

We reserve the right to change the specification without prior notice or obligation!
