Model：PG-104K

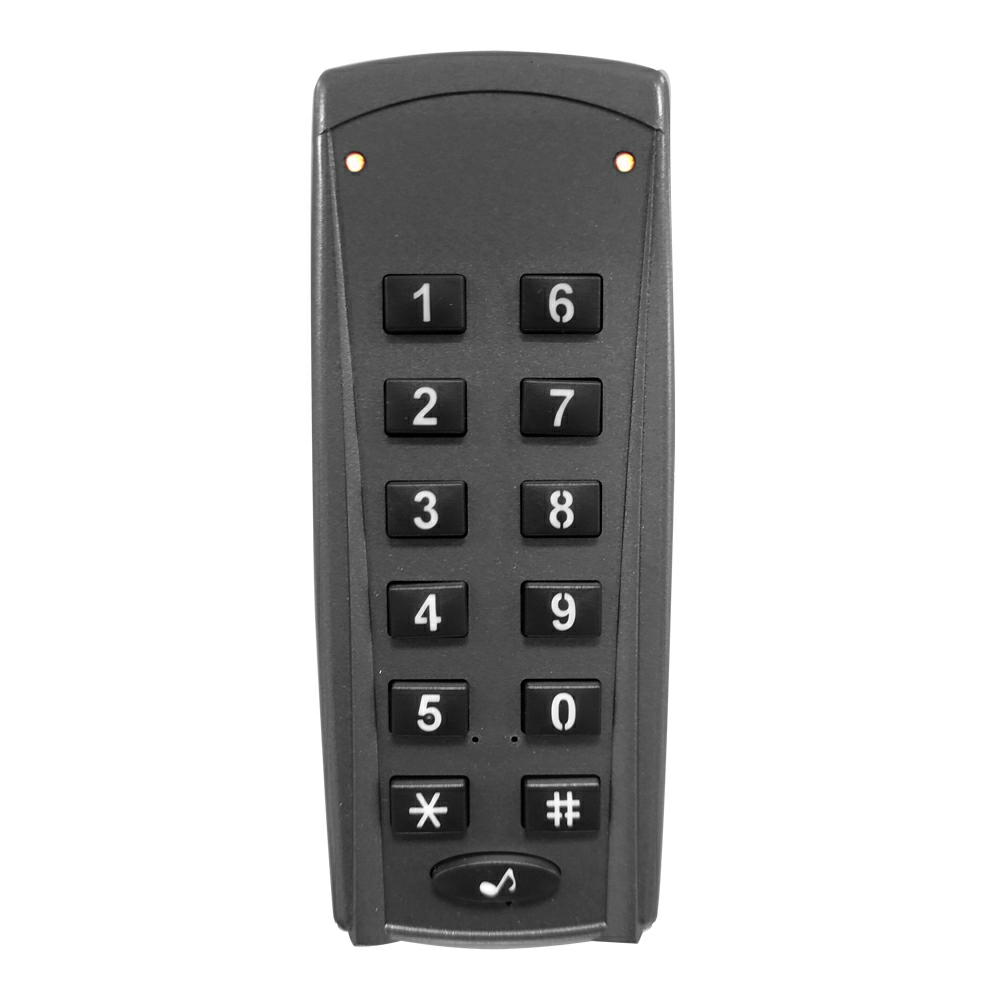

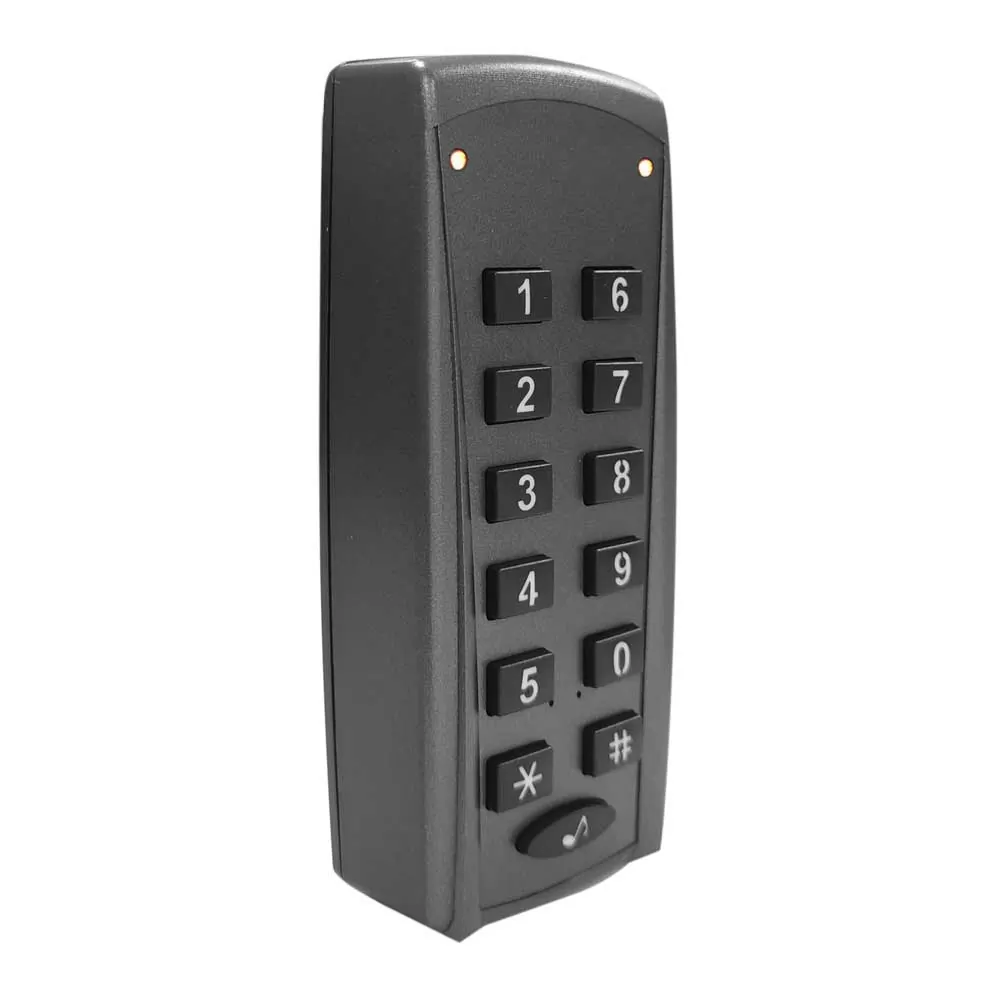

Mullion Weatherproof Digital Access Keypad
※The minimum order quantity:200 pcs
Compare
Product
Features
- ABS case with plastic keypad, compact and low profile.
- With tamper switch and one loop sensor input to trigger alarm when case is tampered or loop is intruded.
- Non-volatile memory for 10-100 years data retention without any battery backup.
- DC 12V operated therefore battery operation is possible when AC power is interrupted.
- Intelligent programmable functions through keypad by LED's and audible beep's indication.
- 7 independent codes from 4 to 8 digits, up to 99,999,999 combinations.
- Programmable door release time, alarm time from 1 to 99 period through keypad.
- With doorbell function.

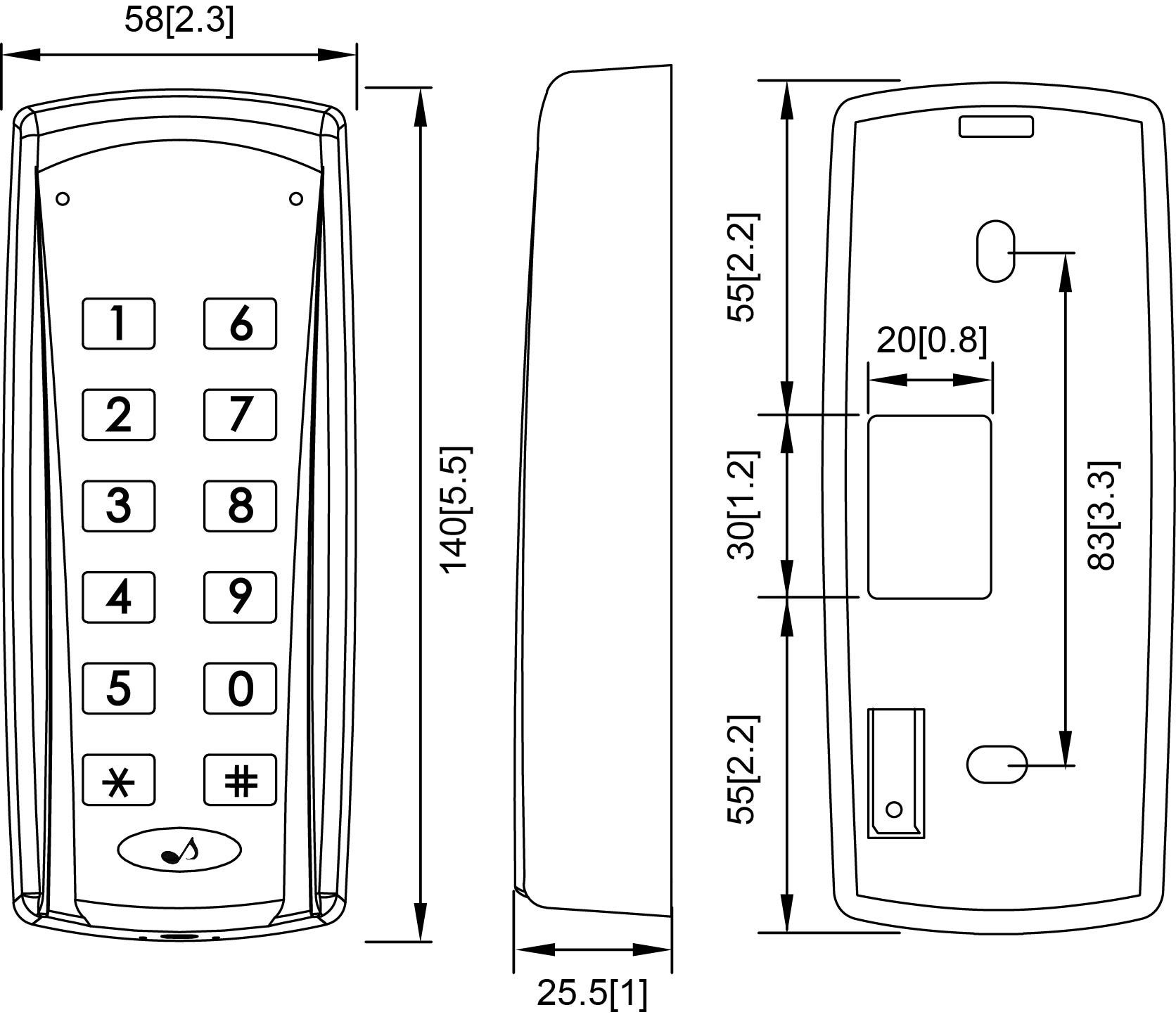

Dimensions: mm[inch]
We reserve the right to change the specification without prior notice or obligation!
Specification
Humidity
20%~90% RH, Non condensation
Operation temperature
0°C ~ 50°C
Power supply
DC 12V, 21mA standby, 55mA on relay operation
Monitor inputs
Door contact, Exit push button, Case tamper
Passcode
Programmable from 4 to 8 digits
MONITOR OUTPUTS
Exit push button. alarm output, tamper switch alarm output
WEATHERPROOF
Yes
