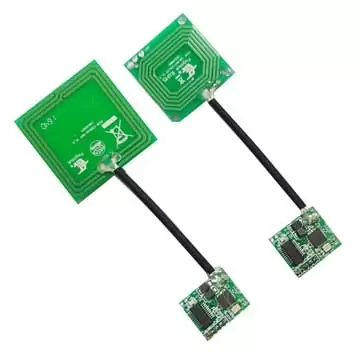

13.56MHz RFID Mifare Reader Module
Introduction
- RFID Mifare module is completely Integrated Protocol Handling for ISO 14443 A and B, ISO 15693, and NFC Forum.
- They come with the choice of internal antenna or external antenna and are suitable and for embedded applications and general Electronic Devices. OEM/ODM service is available.
Features
- 13.56 MHz RFID reader module supports multi-type of cards and protocol: ISO14443 A and B, MIFARE® Classic, MIFARE® Plus, MIFARE® Ultralight and MIFARE® DESfire, NFC Tags.
- Communications: Wiegand, USB, UART (TTL), RS-232
- Anti-collision function that simultaneously reads multiple cards.
- Provide SDK for development.
Specification
| Appearance |  Micro Power Standby current <0.5mA | |  |  |  |  |
|---|---|---|---|---|---|---|
| Model No. | PIMF-15-LW | PIMF-15 | PIMF-18SN | PIMF-18SN/U | PIMF-18EWT | PIMF-18EU |
| Frequency | 13.56MHz | |||||
| Compatibility | Mifare, Mifare Ultralight, Mifare DESFire, NFC (card simulation) or compatible | |||||
| With LED indicator | YES | YES | NO | NO | YES | YES |
| With internal antenna | YES | YES | YES | YES | YES | YES |
| Reading range | Max. 7cm | Max. 9cm | Max. 4cm | Max. 4cm | Max. 5.5cm | Max. 4cm |
| Output format | Wiegand 26&34 bits / UART(TTL) | Wiegand 26&34 bits / UART(TTL) | Wiegand 26&34 bits / UART(TTL) / ABA(Optional) | USB / UART(TTL) | Wiegand 26&34 bits / UART(TTL) | USB |
| Operating System Support | --- | --- | --- | *Windows XP SP2 / Vista / 7 / 8 / 8.1 / 10 *Mac OS 8/9, OS X *Linux/Android *Windows 11(Optional) | --- | *Windows XP SP2 / Vista / 7 / 8 / 8.1 / 10 *Mac OS 8/9, OS X *Linux/Android *Windows 11(Optional) |
| Power Voltage | DC 3.2V ~ 5.3V | DC 3.2V ~ 5.3V | DC 5V | By USB | DC 3.5V ~ 5.3V | By USB |
| Material | --- | --- | --- | --- | --- | --- |
| Dimensions (LxWxH)mm | 20 x 17 | 20 x 17 | 58 x 29 | 58 x 29 | 58 x 29 | 58 x 29 |
| Appearance | Micro Power Standby current 0.5mA |  |  |  |  |  |
|---|---|---|---|---|---|---|
| Model No. | PIMF-18EW34T-LW | PXMF-01SN | PIMF-02SN | PIMF-05SN | PIMF-HSN | PIMF-14SN |
| Frequency | 13.56MHz | |||||
| Compatibility | Mifare, Mifare Ultralight, NFC (card simulation) or compatible | Mifare, Mifare Ultralight, Mifare DESFire, NFC (card simulation) or compatible | ||||
| With LED indicator | YES | NO | NO | NO | NO | NO |
| With internal antenna | YES | NO | YES | YES | YES | YES |
| Reading range | Max. 6cm | Depending on tag size, tag type and antenna size | Max. 5cm | Max. 7cm | Max. 4cm | Max. 5cm |
| Output format | Wiegand 34 bits / UART(TTL) | Wiegand 26&34 bits / UART(TTL) / ABA | Wiegand 26&34 bits / UART(TTL) / ABA | Wiegand 26&34 bits / UART(TTL) / ABA | Wiegand 26&34 bits / UART(TTL) / ABA(Optional) | USB/ UART(TTL) |
| Operating System Support | --- | --- | --- | --- | --- | *Windows XP SP2 / Vista / 7 / 8 / 8.1 / 10 *Mac OS 8/9, OS X *Linux/Android *Windows 11(Optional) |
| Power Voltage | DC 3V~5V | DC 5V | DC 5V | DC 5V | DC 5V | DC 5V / By USB |
| Material | --- | --- | --- | --- | ABS | --- |
| Dimensions (LxWxH)mm | 58 x 29 | 53 x 23 | 64 x 38 | 64 x 56 | 32 x 32 x 8 | 63.6 x 37.3 |
Application field
 |  |  |
| Counterfeit Forestalling | Asset Management | Contactless payment system |
 |  |  |
| Healthcare | Entertainment Facilities | Access Control /Intercom |
 |  |  |
| Automobile instrument control | Logistics & Supply chain | Production control |
 |  |  |
| Robotics Navigation | Kiosk / POS system | Rental Equipment Solution |
Mifare is a registered trademark of NXP B.V.
MIFARE DESFire is a registered trademark of NXP B.V.
Specifications subject to change without notice for further modification.
