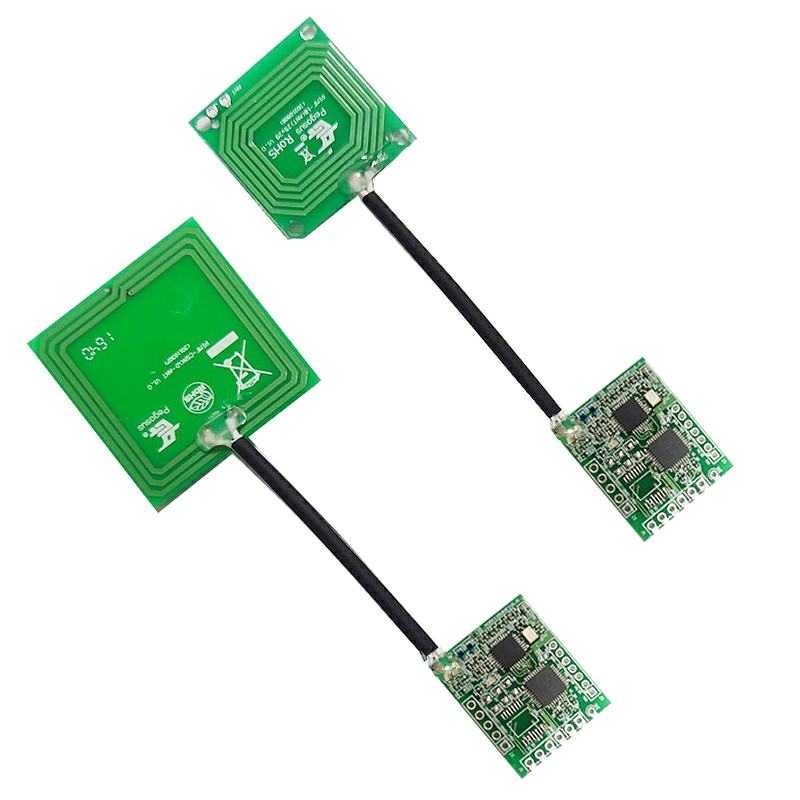

Model：PIHF-19
HF 13.56MHz RFID Read Module
Product
Introduction
- Support multi-type of cards and protocol : ISO 14443A, ISO 15693, ISO 18092, Mifare, Mifare Ultralight, Mifare DESFire, FeliCa, ICODE-2, NFC Ntag213/215/216 or compatible
- With LED indicator.
- Communications: UART(TTL)
- Provide SDK for development.

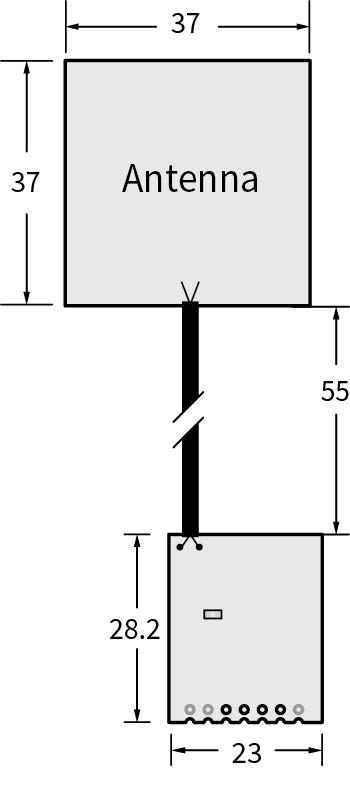

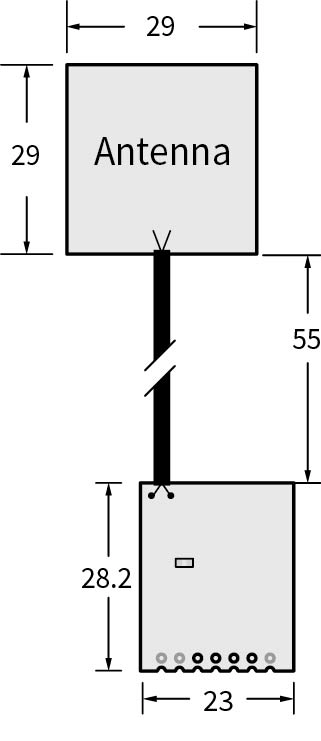

Dimension: Unit(mm)
 |
 |
| PIHF-19 | PIHF-19-1 |
Application field
 |
 |
 |
| Counterfeit Forestalling | Asset Management | Contactless payment system |
 |
 |
 |
| Healthcare | Entertainment Facilities | Access Control /Intercom |
 |
 |
 |
| Automobile instrument control | Logistics & Supply chain | Production control |
 |
 |
 |
| Robotics Navigation | Kiosk / POS system | Rental Equipment Solution |
Ordering information
| PIHF-19TH07 | Mini 13.56MHz UID reading module with antenna(37x37mm), TTL, Card number: in reverse, Hexadecimal |
| PIHF-19TH07-1 | Mini 13.56MHz UID reading module with antenna(29x29mm), TTL, Card number: in reverse, Hexadecimal |
Mifare is a registered trademark of NXP B.V.
Mifare DESFire is a registered trademark of NXP B.V.
Mifare Ultralight is a registered trademark of NXP B.V.
FeliCa is a trademark of Sony Corporation.
Specifications subject to change without notice for further modification.
Specification
Frequency
13.56MHz
Compatibility
Mifare, Mifare Ultralight, Mifare DESFire, FeliCa, ICODE-2, NFC Ntag213/215/216 or compatible
ISO standard
ISO 14443A, ISO 15693, ISO 18092
With LED indicator
YES
With internal antenna
YES
Reading range
Max. 8.2cm
Output format
UART(TTL)
Power Voltage
DC 3.8V ~ 5V
Material
---
Dimensions (L x W x D) mm
28.2 x 23
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
