22MM Mini Flush-Mount RFID Reader
Features
- Mini Flush-Mount RFID reader
- Support 13.56MHz(Mifare / DESFire / ICODE-2(Optional))
Specification
| Model No. | PP-22 |
|---|---|
| Frequency | 13.56MHz |
| Compatibility | ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESFire, NFC (card simulation), ISO14443 B(Optional), ICODE-2(Optional) |
| Power Voltage | DC 7~28V |
| Output Format/ Interface | Wiegand 26~58 bits/UART |
| IP Rating | IP68 |
| Dimesions(LXWXD)MM | Diameter28.6x22 |

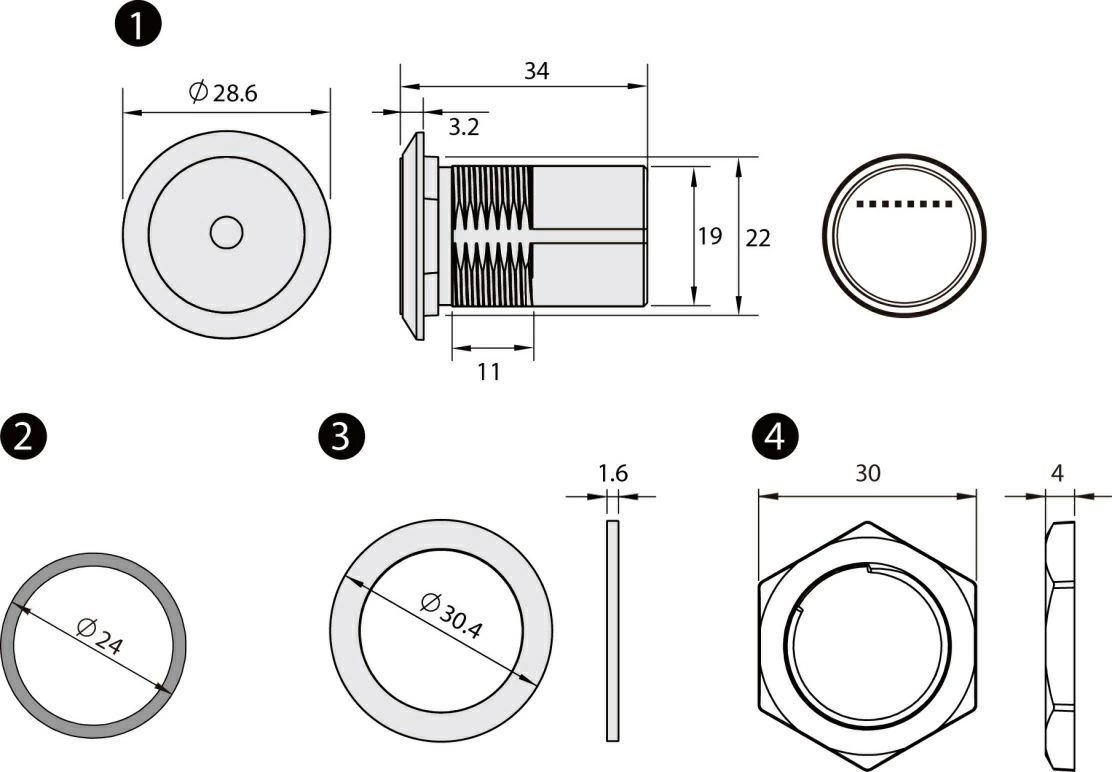

Dimension: Unit:mm
Application field
 |  |  |

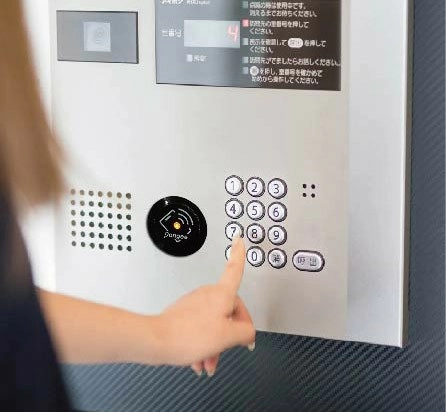

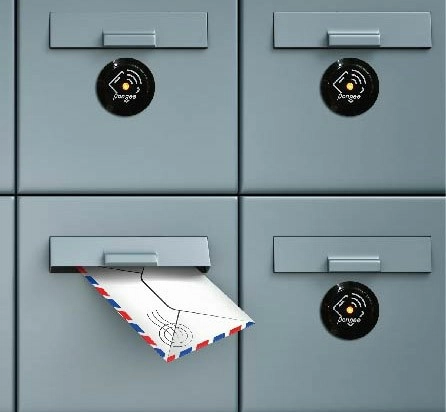

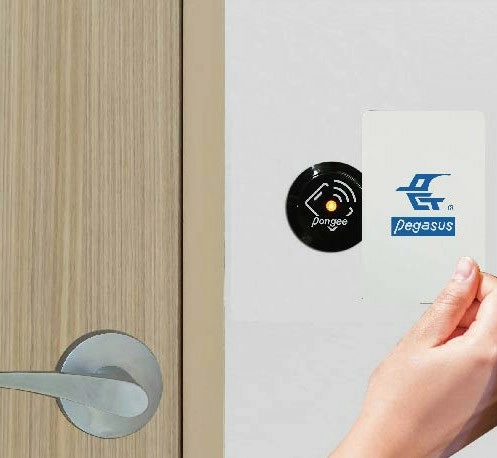

| Access control system | Mailbox management system | Intercom system |
 |  |  |

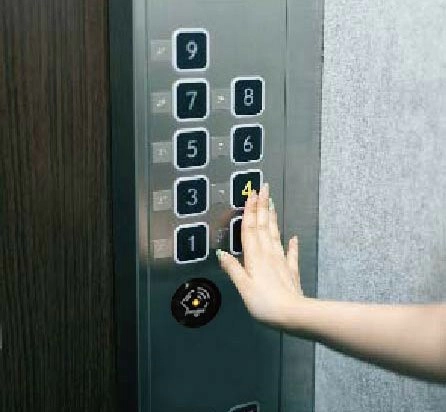

| Lift access control system | Charging station | HMI、PLC |
 |  |  |
| Production control | Vehicle rental system | Kiosk/POS System |
 |  | |
| Membership System | Library automation |

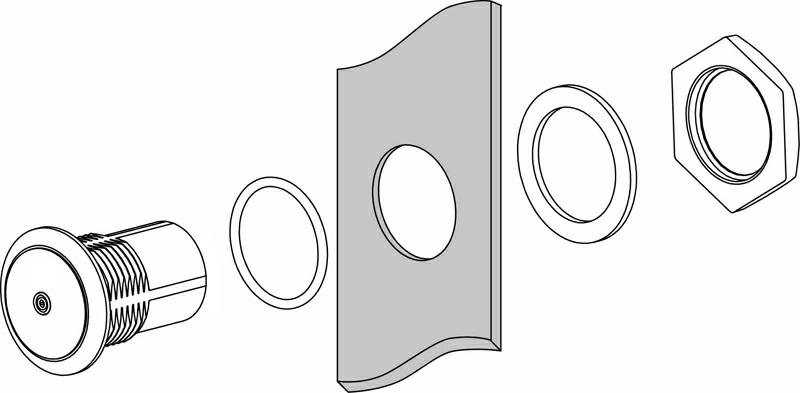

How to assembly
Ordering information
| PP-22M0WT | 22MM Mini Flush-Mount Mifare Reader, Wiegand 26~58 bits/UART |
| PP-22M0WTS | 22MM Mini Flush-Mount Mifare Reader, Wiegand 26~58 bits/UART, Card No. in positive |
Mifare is a registered trademark of NXP B.V.
Mifare DESFire is a registered trademark of NXP B.V.
Specifications subject to change without notice for further modification.
Download
| # | Name | Upload Date | Description | Download |
|---|---|---|---|---|
1 | PP-22 | 2025-09-15 | Mini Flush-Mount RFID Reader Catalog |
