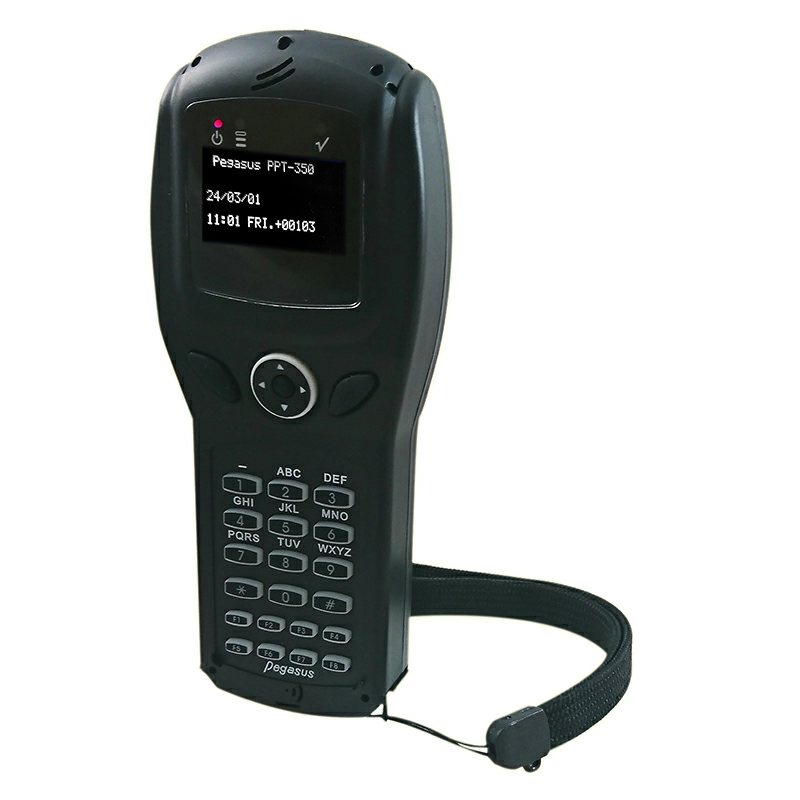

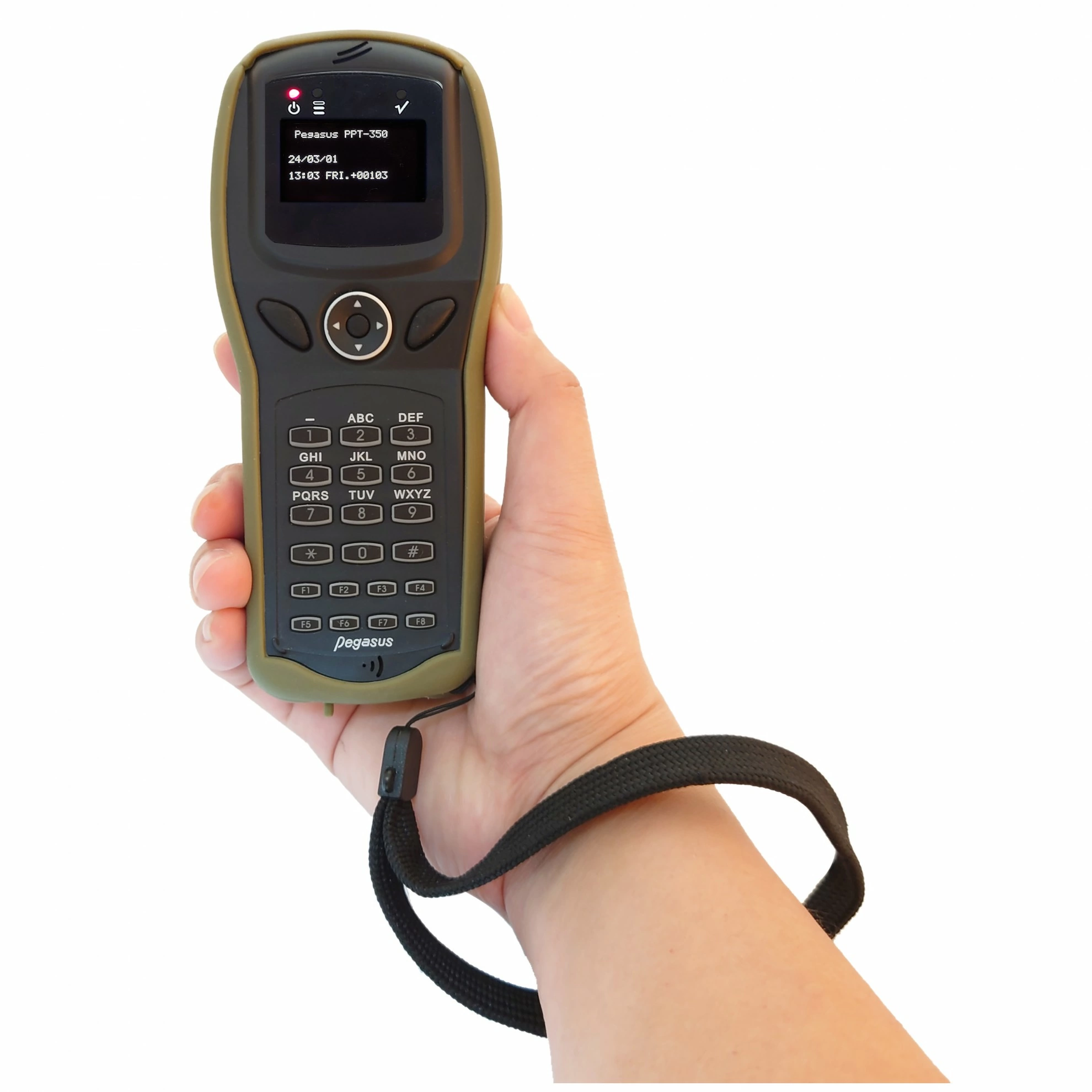

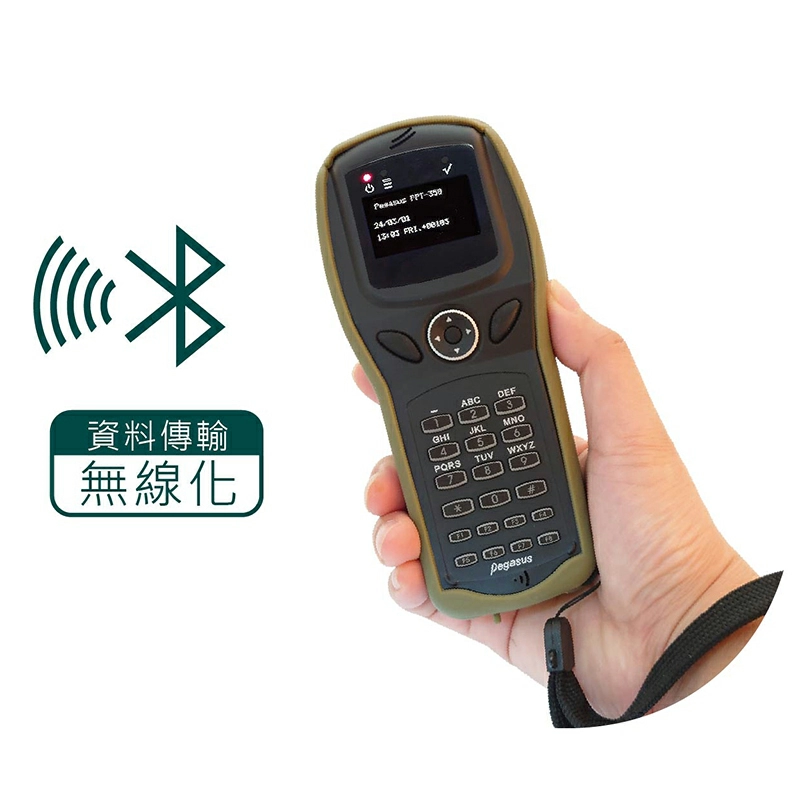

Model：PPT-350B
Bluetooth Guard Patrol System
Compare
Product
- One-touch operation: pressing a button for reading ID card.
- Modern design with multiple function code.

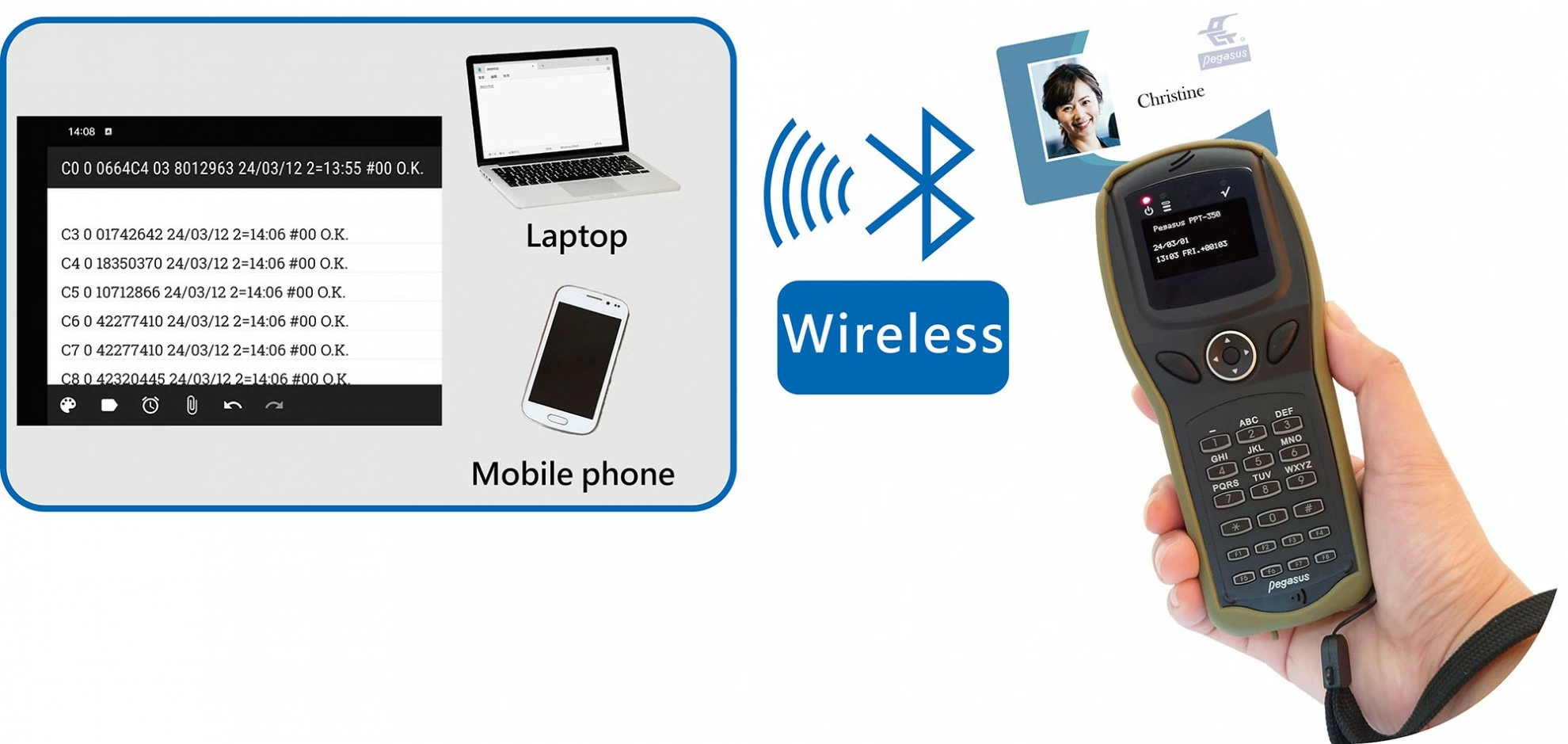

- Interface: USB / Bluetooth

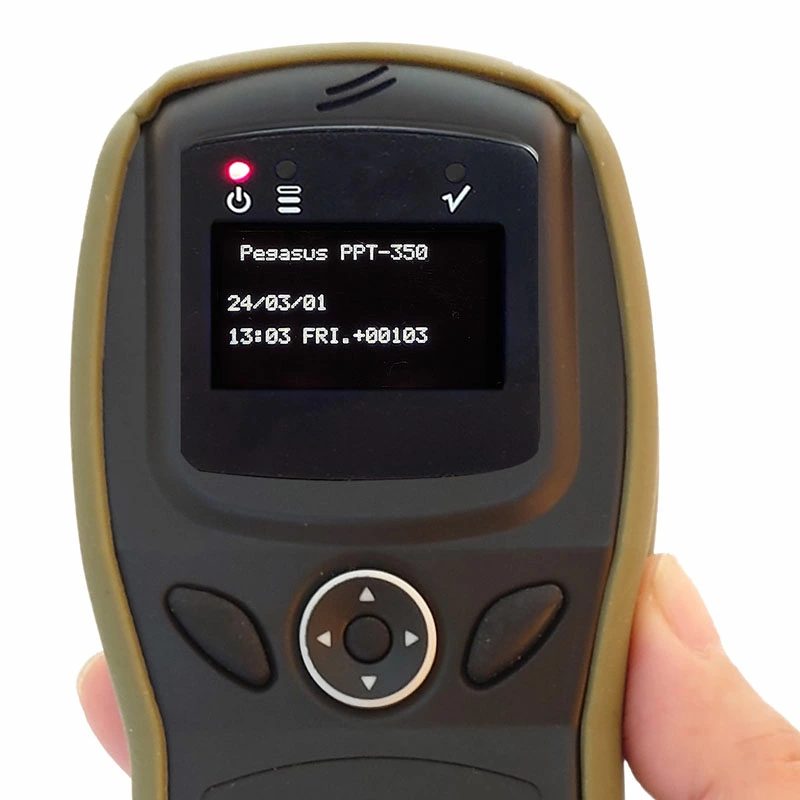

- OLED display, real time clock

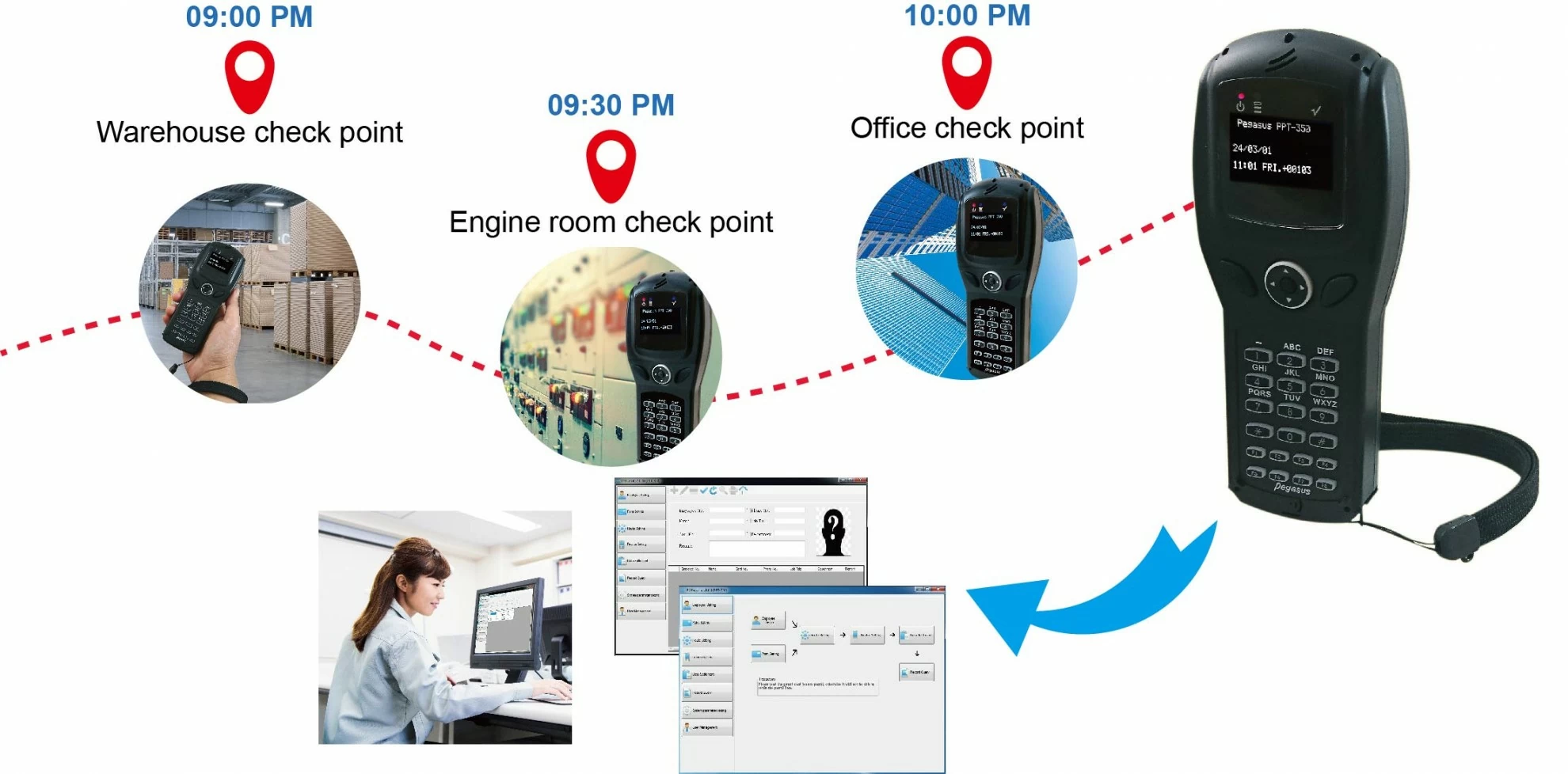

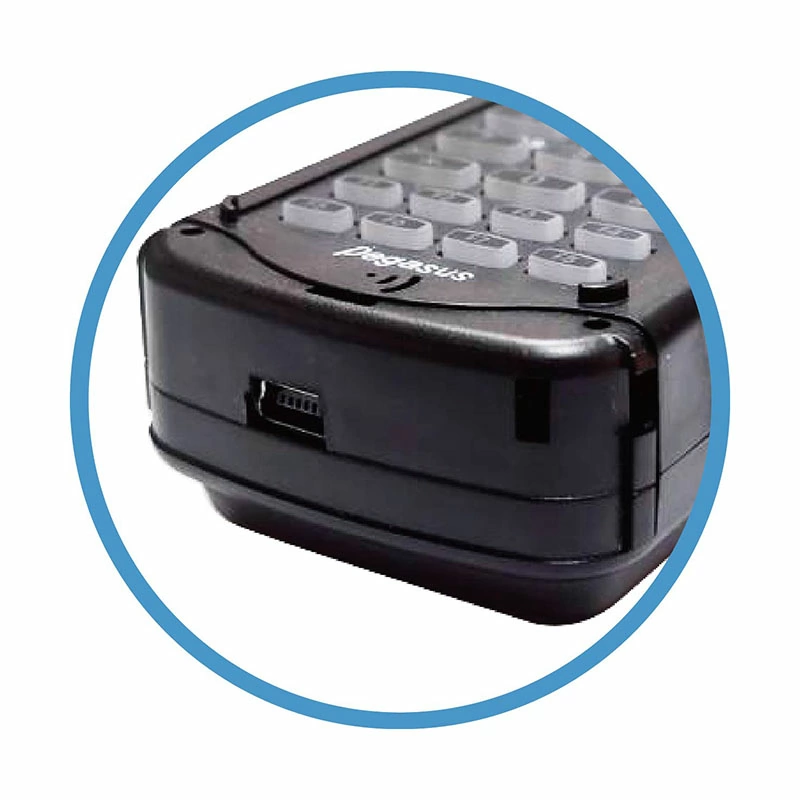

- Download the data thru. USB interface and then generate the report by the PATROL MANAGER software.
- Battery Embedded.
- Free SDK available.
- Modify the card no. display time(01~60sec.)
- Device Driver Operating System Support:
*Windows XP SP2 / Vista / 7 / 8 / 8.1 / 10 /11
*Mac OS 8/9, OS X
*Linux/Android
Applications
- Policeman or Military patrolling
- Security personnel patrolling
- Remote equipment inspections/maintenance
- Goods delivery, transportation management
- Time attendance
- Data collector

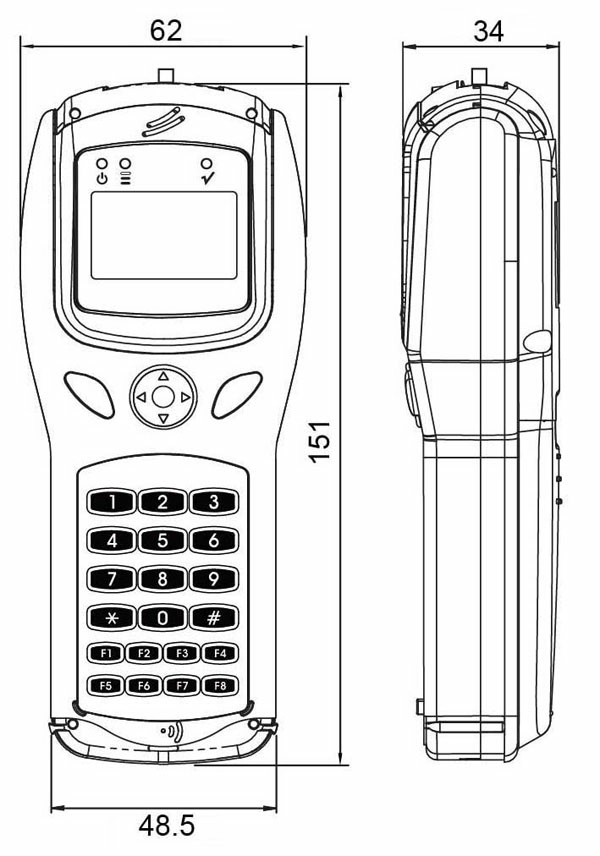

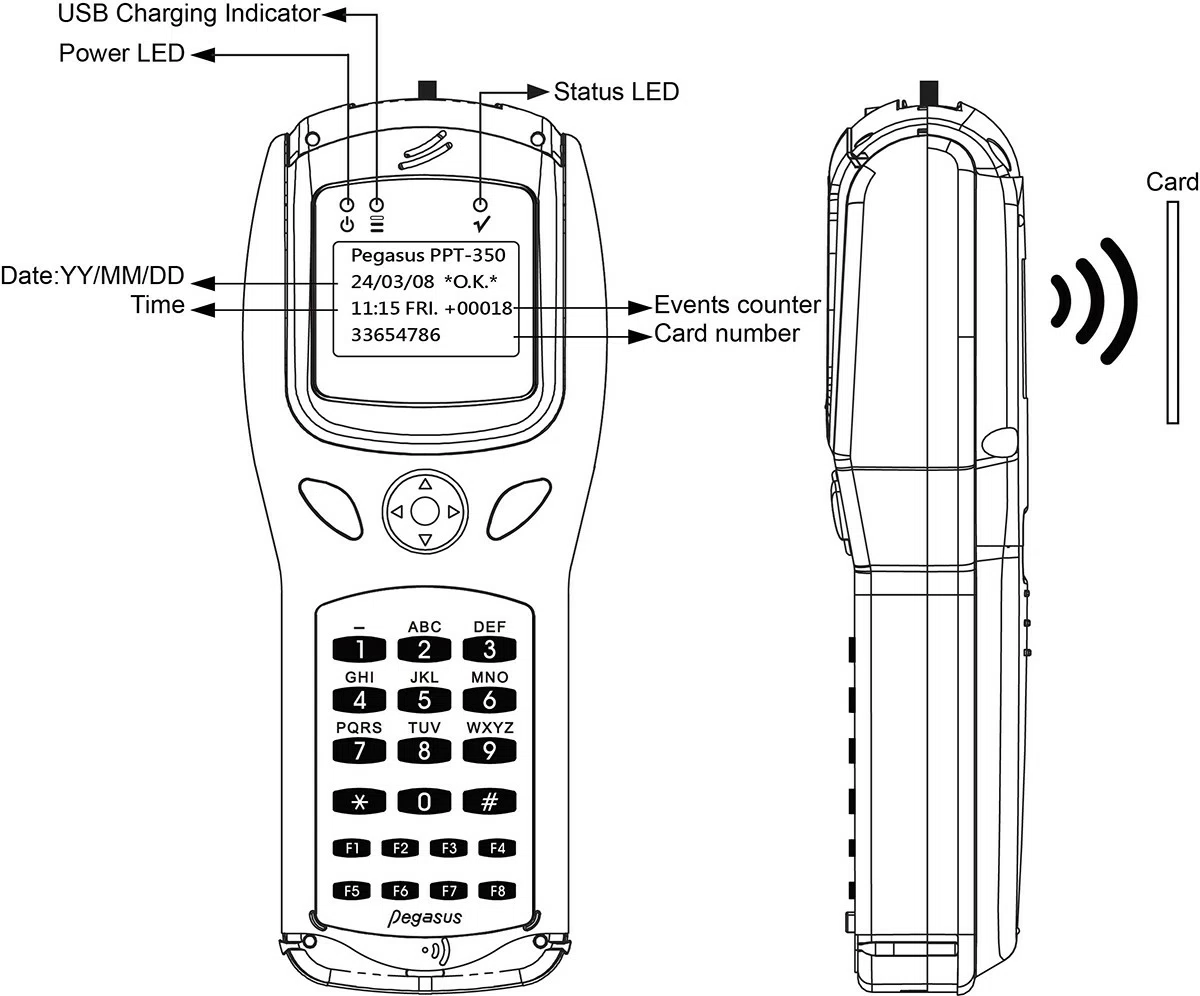

Dimension: Unit(mm)

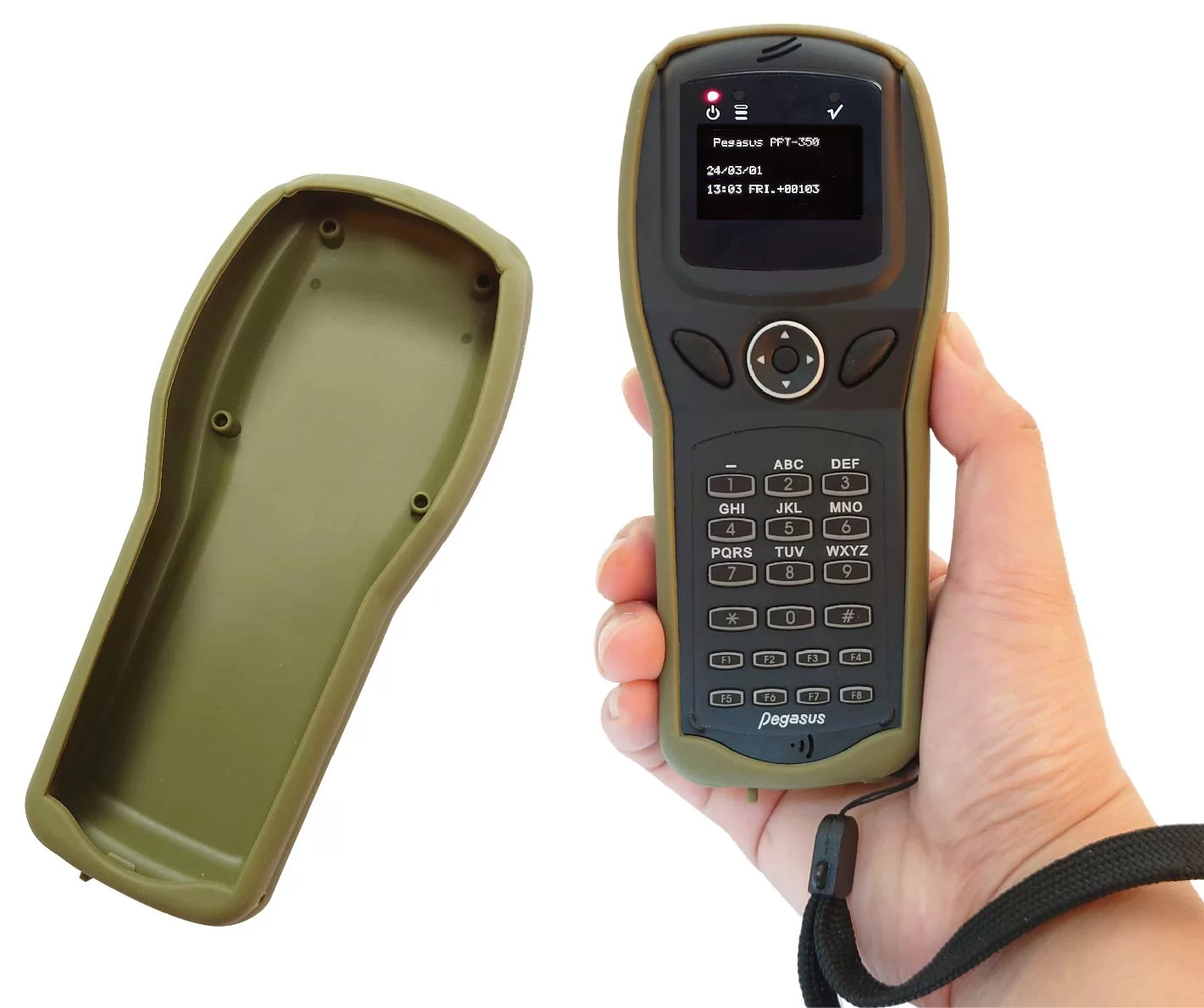

Accessories
| Protective Case | |
| Model No. | R-26-350-4 |
| Material | Silicone |
| Color | Cadet Green |
Ordering information
| PPT-350N | 125KHz EM Guard Patrol Tour Terminal, 32000 events |
| PPT-350M0 | 13.56MHz Mifare Guard Patrol Tour Terminal, 32000 events |
| PPT-350M3 | ICODE-2 Guard Patrol Tour Terminal, 32000 events |
| PPT-350G | Mifare, ISO14443B, ICODE-2, FeliCa Guard Patrol Tour Terminal, 32000 events |
| PPT-350NB | 125KHz EM Guard Patrol Tour Terminal, 32000 events, Bluetooth |
| PPT-350M0B | 13.56MHz Mifare Guard Patrol Tour Terminal, 32000 events, Bluetooth |
| PPT-350M3B | ICODE-2 Guard Patrol Tour Terminal, 32000 events, Bluetooth |
| PPT-350GB | Mifare, ISO14443B, ICODE-2, FeliCa Guard Patrol Tour Terminal, 32000 events, Bluetooth |
FeliCa is a trademark of Sony Corporation.
We reserve the right to change the specification without prior notice or obligation!
Specification
Operating temperature
-10℃ ~ 75℃
Storage temperature
-10℃ ~ 85℃
LED
Power and status LED
Reading range
Max.8cm(EM) / Max.3.5cm(Mifare) / Max.8cm(Depending on UHF label)
Interface
USB / Bluetooth
Power supply
USB 5V / 3.7V(Lithium Battery)
Events
32,000
RFID frequency
125KHz EM / 13.56MHz Mifare / 860~928MHz
Stand-by time
20 hours
Identity code
Decimal, 8 digits
