24 Relay Box (TCP/ IP Embedded)

Configuratons

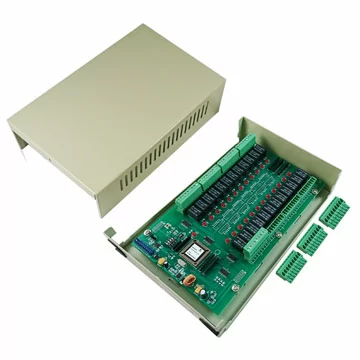

• The Pegasus POM-24T3 is a relay box of lift access control system for 24 floors.
• Connecting this relay box with lift access controller for programming accessibility for each proximity card holder.
• An installation of Bypass switch is proposed for switching free access.

Specifications

• Dimensions : 220(L) ×151(W) ×46(H) mm
• Enclosure material : Metal case
• Interface : TCP/IP
• Power supply : DC12V / 620mA± 10%
• Operating temperature : 0℃ ~ 50℃
• Operating humidity : 20% ~ 90%
• Relay : 24 pcs

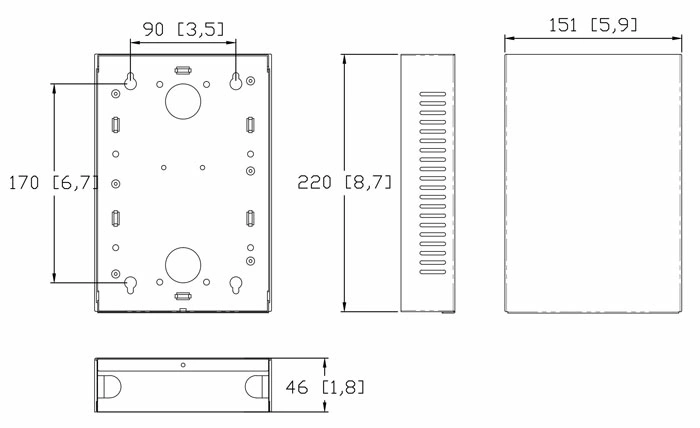

Dimensions : mm[inch]

We reserve the right to change the specification without prior notice or obligation!
