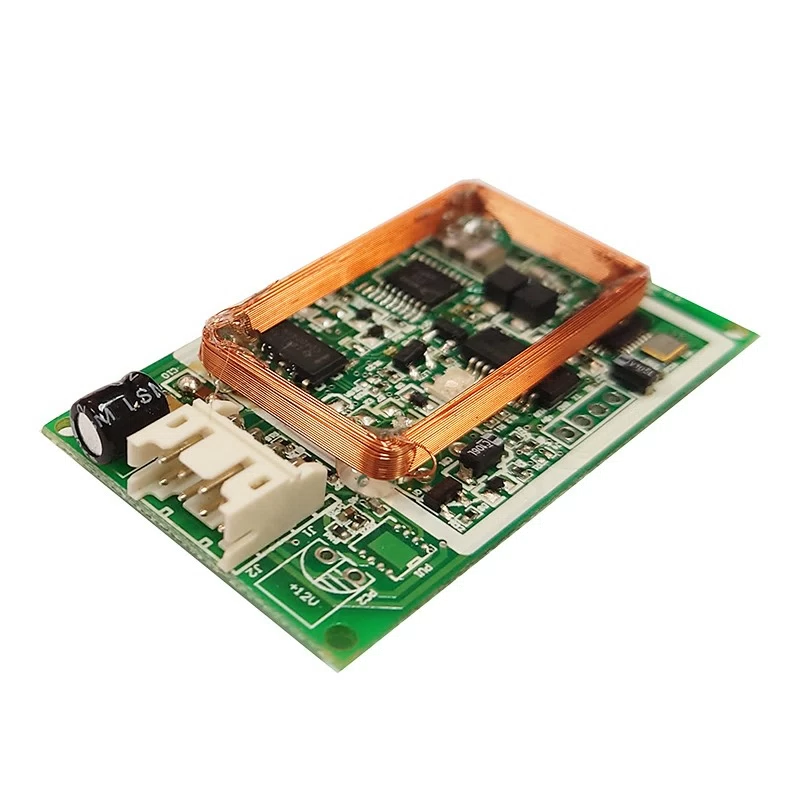

Model：PIDF-20WT
125KHz & 13.56MHz Read Module
Compare
Product
Introduction

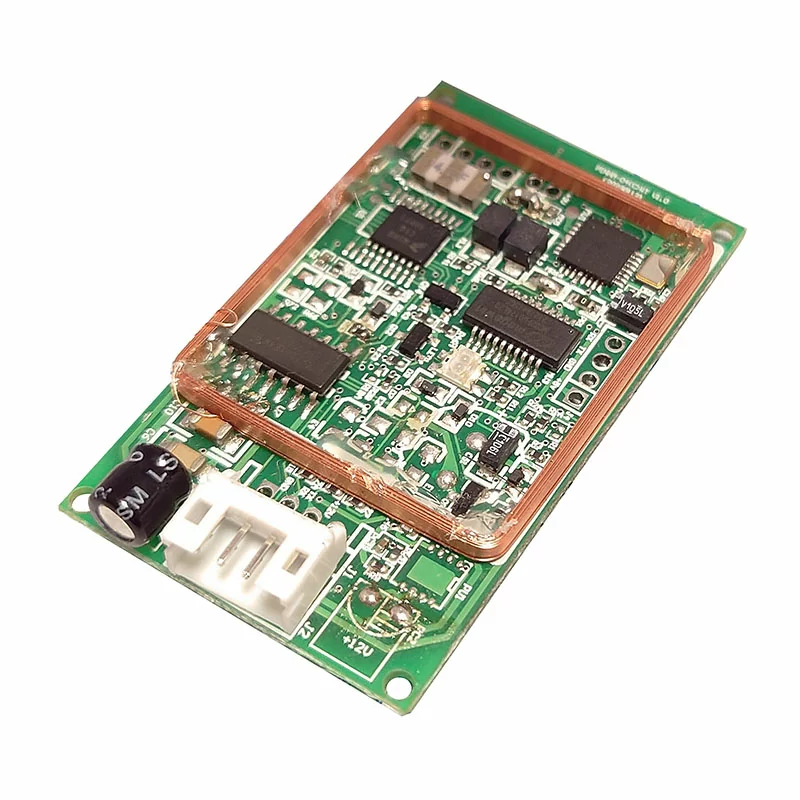

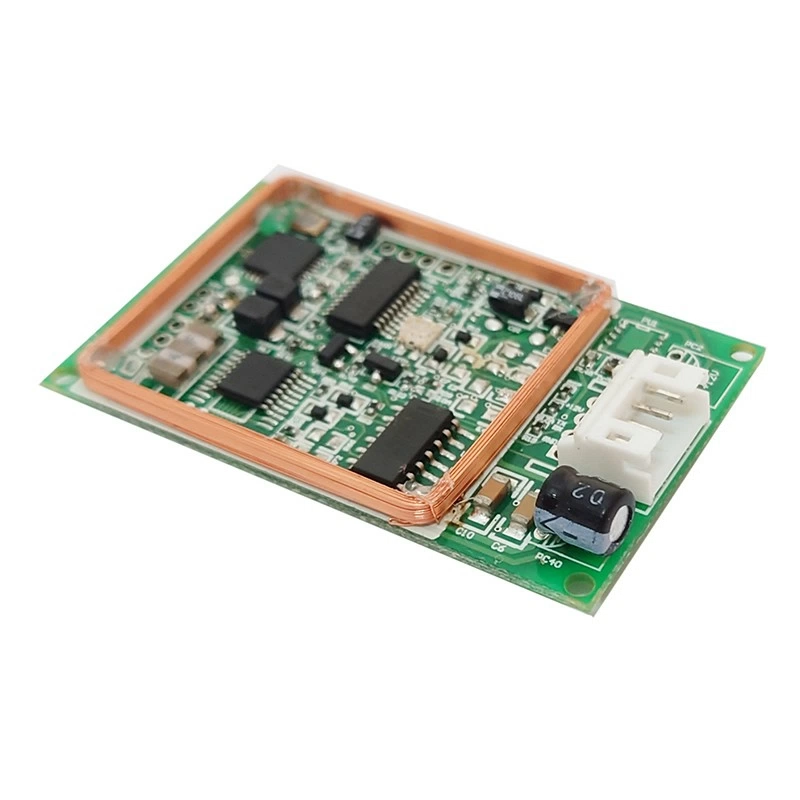

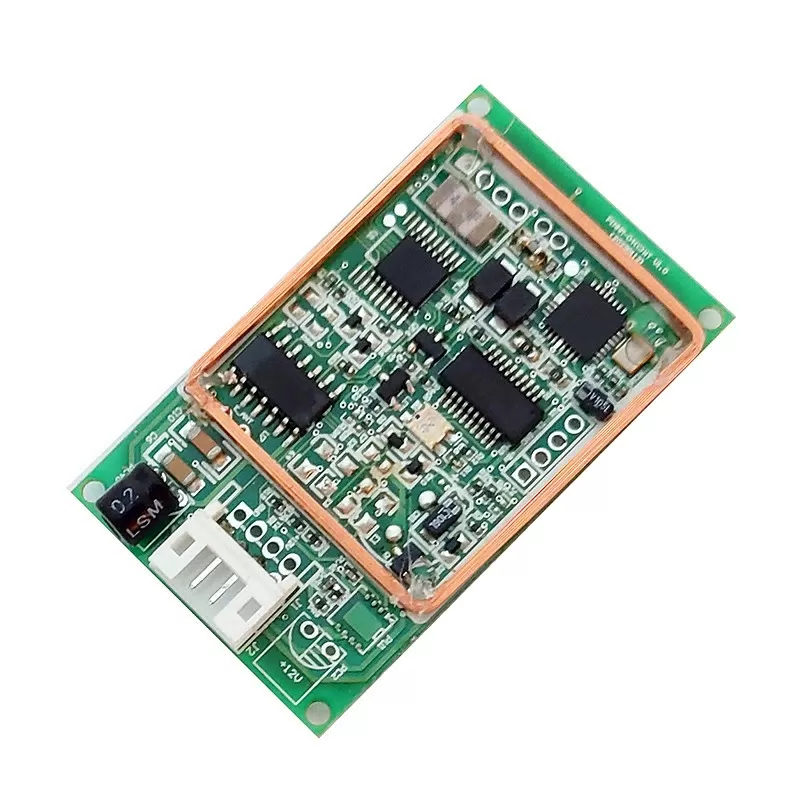

- PIDF-20WT is a LF 125KHz & HF 13.56MHz module can read EM ASK 125KHz, H.I.D. FSK 125KHz, 13.56 MHz for Mifare, Mifare Ultralight, Mifare DESFire, NFC Ntag213/215/216 contactless card/keytag etc. then send out some standard data format, such as Wiegand for ID data collection.
- The users may select the suitable models for connecting to dedicate controller or PC for various applications.
- We provide complete software/Hardware support and shorten schedule of RFID product development.
- OEM/ODM service is available.
Dimension: Unit(mm)
Application field
 |
 |
 |
| Counterfeit Forestalling | Asset Management | Contactless payment system |
 |
 |
 |
| Healthcare | Entertainment Facilities | Access Control /Intercom |
 |
 |
 |
| Automobile instrument control | Logistics & Supply chain | Production control |
 |
 |
 |
| Robotics Navigation | Kiosk / POS system | Rental Equipment Solution |
Ordering information
| PIDF-20WT | 125KHz & 13.56MHz Read Module, Wiegand26~58 bits, TTL |
| PIDF-20W26 | 125KHz & 13.56MHz Read Module, Wiegand 26 bits |
Mifare DESFire is a registered trademark of NXP B.V.
Mifare Ultralight is a registered trademark of NXP B.V.
Specifications subject to change without notice for further modification.
Specification
Reading range
Max. 4cm
Frequency
125KHz & 13.56MHz
ISO standard
ISO 14443A
Output format
Wiegand26~58 bits, TTL
Power Voltage
DC 4.5V ~ 5.3V
Dimensions (LxWxH)mm
50 x 30
Compatibility
EM, H.I.D., Mifare, Mifare Ultralight, Mifare DESFire, NFC Ntag213/215/216
With internal antenna
YES
With LED indicator
YES
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
