Model：PR-2752
RF Remote Type Vehicle Access Control System
Product
Product Description
- For car parking or door access control system with reading.
- With 2 RF receiver ports and anti-pass back function.
- Up to 9999 card holder / 6000 events.
- Support Standalone operation or PC On-line communication through RS -232C or RS-422 or RS-485.

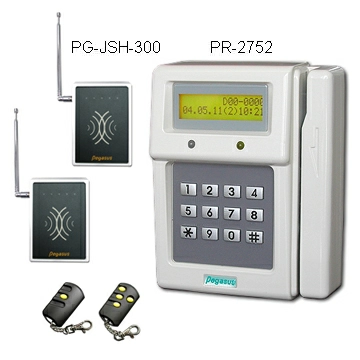

- PR-2752 (controller) + PG-JSH-300 (Receiver/antenna) + Transmitter, for 15 meters reading.
Features
- With built-in quartz real time clock for time zone control & time recording.
- With tamper switch and one loop sensor input to trigger alarm when case is tampered or loop is intruded.
- Standalone / Network communication through RS -232C /RS-422/ RS-485
- Up to 9999 card holder / 6000 events.
- Operation modes : Transmitter only.
- 10 years for real time clock and transaction data retention at power failure CMOS CPU with low power consumption & watchdog function.
Specifications
- PR-2752
| Dimensions (L x W x H) | 156 x 123 x 42 mm |
| Weight | 1,370 g |
| Operating Temperature | 0°C ~ 55°C |
| Humidity | 20% ~ 90% RH (Non-condensing) |
| Code | Hopping code / Pegasus code |
| Card | Transmitter |
| Communications | RS-232C / RS-422 / RS-485 |
| Display | 16 x 2 lines LCD with LED backlight |
| Keypad | 4 x 3 membrane (System programming, Password entry, Duty code selection) |
| Anti-passback | One-door anti-passback |
| Reset | Watchdog timer, Power reset, Self-recovery watchdog (Optional) |
| Indicators | LEDs (1 bicolor, 1 yellow) & Buzzer for sound indication |
- PTX-201 (Single Button)
| Operating Frequency / IC | Fixed frequency 433.9 MHz / Hopping code anti-copy IC |
| Dimensions (L x W x H) | 65 x 36 x 13 mm |
| Weight | 26 g |
| Material / Color | ABS / Black housing, yellow button |
| Operating Environment | Operating temperature: -15°C ~ 55°C / Relative humidity: 10% ~ 90% |
| Remote Control Range | 15 m ~ 20 m |
| Battery | 12V A27 battery x 1 |
| Status Indicator | Red LED x 1 |
| Output Characteristics | Relay activates for approx. 1 second upon button press then shuts off (delay time adjustable on the electric lock) |
| Related Optional Model | PTM-201 : HOPPING anti-copy single-button proximity remote control |
- PTX-204 (Four Buttons)
| Operating Frequency / IC | Fixed frequency 433.9 MHz / Hopping code anti-copy IC |
| Dimensions (L x W x H) | 65 x 36 x 13 mm |
| Weight | 26 g |
| Material / Color | ABS / Black housing, yellow buttons |
| Operating Environment | Operating temperature: -15°C ~ 55°C / Relative humidity: 10% ~ 90% |
| Remote Control Range | 15 m ~ 20 m |
| Battery | 12V A27 battery x 1 |
| Status Indicator | Red LED x 1 |
| Related Optional Model | PTM-204 : HOPPING anti-copy four-button proximity remote control |
Transmitter
- Dimensions : 36(W) x 65(L) x13(H)mm
- PTX-201:Single key transmitter
- PTM-201:Single key transmitter with internal 125KHz transponder
- PTX-204:Four keys transmitter
- PTM-204:Four keys transmitter with internal 125KHz transponder

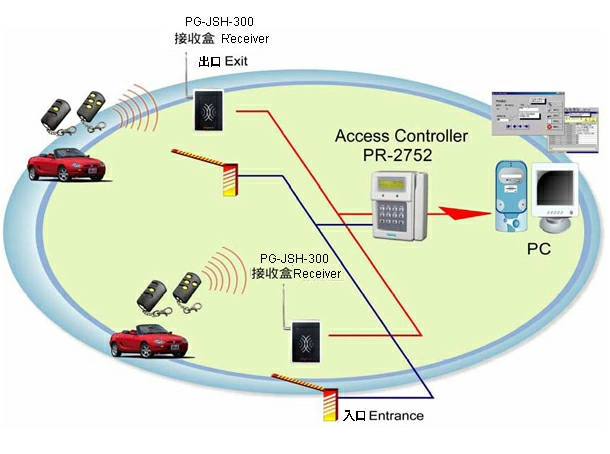

System configuration
We reserve the right to change the specification without prior notice or obligation!
Specification
Model No
PR-2752
Dimensions
156(L)x 123(W)x 42(H) mm
Weight
1370g
Operation temperature
0°C ~ 55°C
Humidity
20%~90% RH, Non condensation
Identity code
Hopping code or Pegasus code
Card
transmitter
Interface
RS -232C , or RS-422 or RS-485
Display
16 x 2 lines LCD and LED backlighted
Keypad
4 x 3 membrane for system programming, Password entry, duty code selection
Anti-pass back
back For one door anti-pass back
Reset
Watchdog timer, power reset, self recovery watchdog ( optional )
Indicators
LED's ( one bicolor and one yellow ) and buzzer for sound indication
