Features
- Holding force: 2600LBs (1200KGs)
- Max. magnetic distance up to 5mm (@24V)
- Voltage : 12V/24V DC(auto-adjusting)
- Compact size; Easy to install
- Suitable for 90° or 180° door open aluminum or wooden doors.
- Automatic repeated locking (Max. 60 times) when door is not locked at the correct position

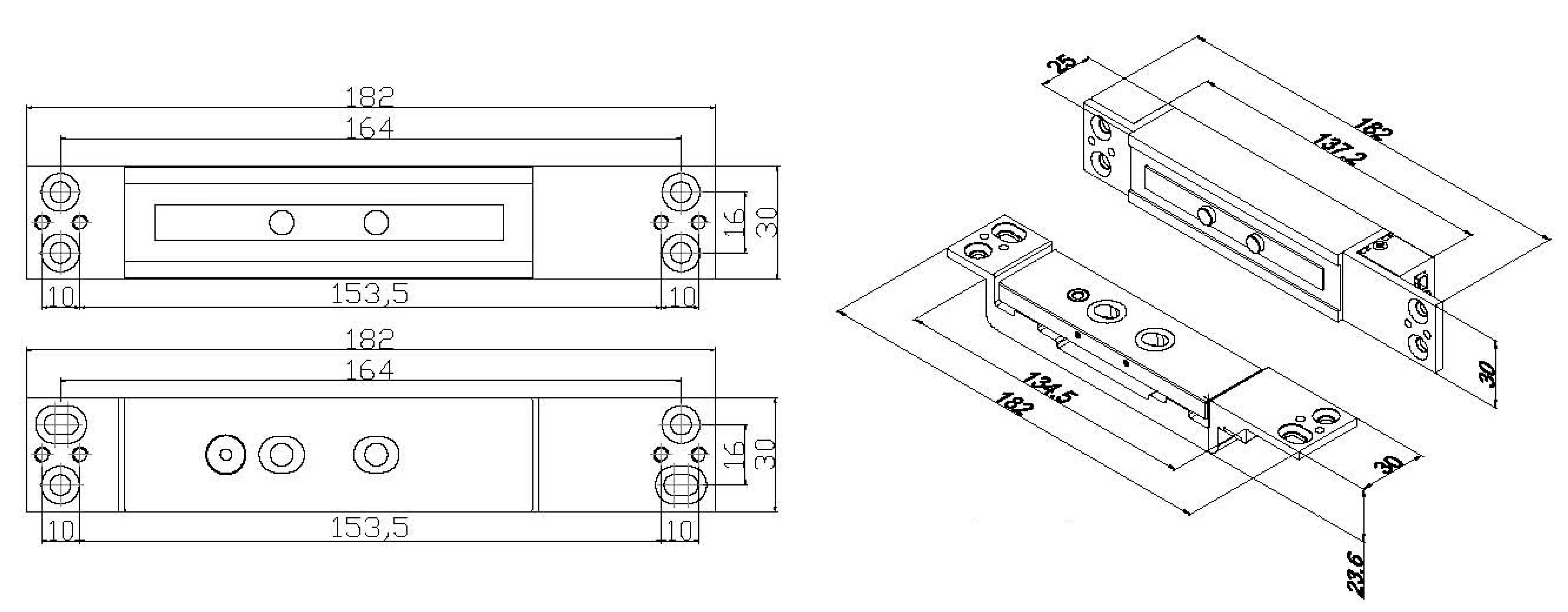

Dimension: mm
We reserve the right to change the specification without prior notice or obligation!
Specification
Weight
1.2kgs
Operation temperature
-30℃~50℃
Power input
DC 12V±15% / DC 24V±15%
Monitor Output
N.O. & N.C.(Max. 24V/1A)(Hall Effect Sensor)
Operation Delay Time
0.5 Sec.~25Sec.
Magnetic Distance
(Max.) 3.0mm@12V / 5.0mm@24V
Operation Current
Operation Current : 900mA(min)±5% / 12VDC Holding Current : 220mA±5% / 12VDC Operation Current :900mA(min)±5% / 24VDC Holding Current : 190mA±5% / 24 VDC
