Long Range RFID Car Parking Access Controller (Metal case)

Product Description

For car parking access control, the RFID Hand free card can be stick to any where within the car even through windshields and clothes but not on the metal and to get access to the gate or any electrical door, just approach to the effective distance without getting off the car or opening the window .

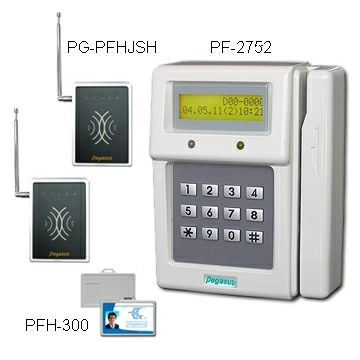

PF-2752 (controller) + PG-PFHJSH (reader) + PFH-300 (card), for 3~15 meters reading.

Features

• With built-in quartz real time clock for time zone control & time recording.
• With tamper switch and one loop sensor input to trigger alarm when case is tampered or loop is intruded.
• Standalone / Network communication through RS -232C /RS-422
• 9999 card holder / 6000 events.
• Operation modes : card only, free access.
• 10 years for real time clock and transaction data retention at power failure CMOS CPU with low power consumption & watchdog function.
• Low cost and easy installation.

Specifications

• Dimensions : 156(L)x 123(W)x 42(H)mm
• Weight : 1370g ±5%
• Operation temperature : 0°C ~ 55°C
• Humidity : 10%~90% RH, Non condensation
• Power supply : 12V DC, 300mA
• Communications : RS -232C , RS-422, RS-485 jumper selectable
• Display : 16 x 2 lines LCD and LED back lighted
• Keypad : 4 x 3 membrane for system programming, Password entry, duty code selection
• Reset : Watchdog timer, power reset, self recovery watchdog ( optional )
• Indicators : LED's ( one bicolor and one yellow ) and buzzer for sound indication

We reserve the right to change the specification without prior notice or obligation!
