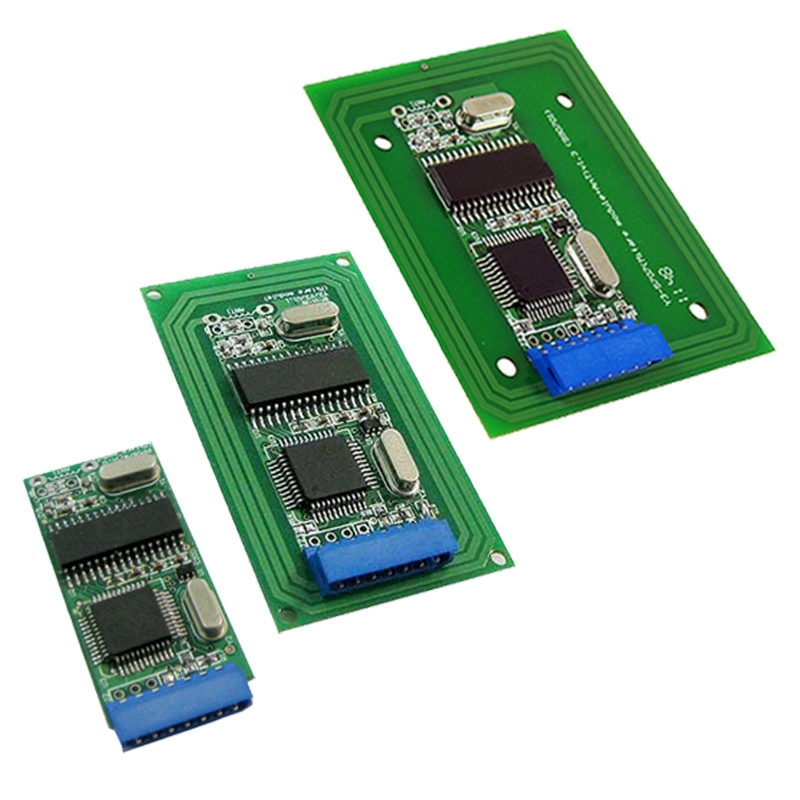

13.56MHz RFID Read/Write Module

Introduction

• The Mifare contactless card Read/Write module is completely Integrated Protocol Handling for ISO 14443 A and B, ISO 15693, and NFC Forum.
• They come with the choice of internal antenna or external antenna and are suitable and for embedded applications and general Electronic Devices. OEM/ODM service is available.

Features

• Support multi-type of cards and protocol: ISO14443 A and B, MIFARE® Classic, MIFARE® Plus, MIFARE® Ultralight and MIFARE® DESfire, NFC Tags
• Communications: Wiegand, USB, UART (TTL), RS-232
• Anti-collision function that simultaneously reads multiple cards

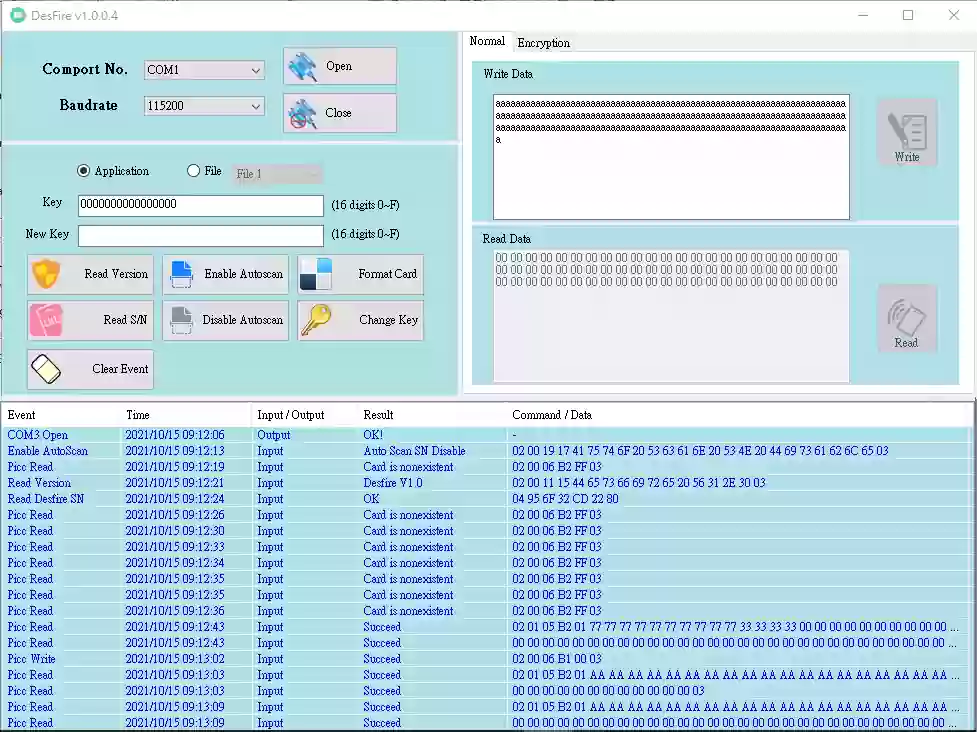

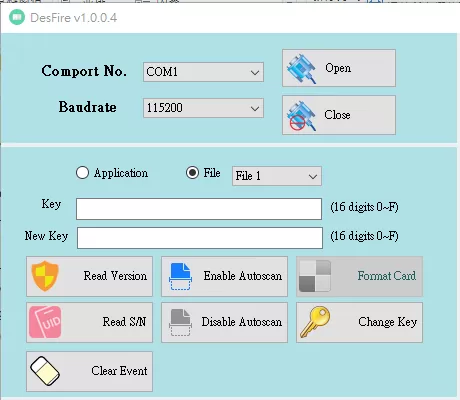

• Provide SDK for development

Specification

Appearance

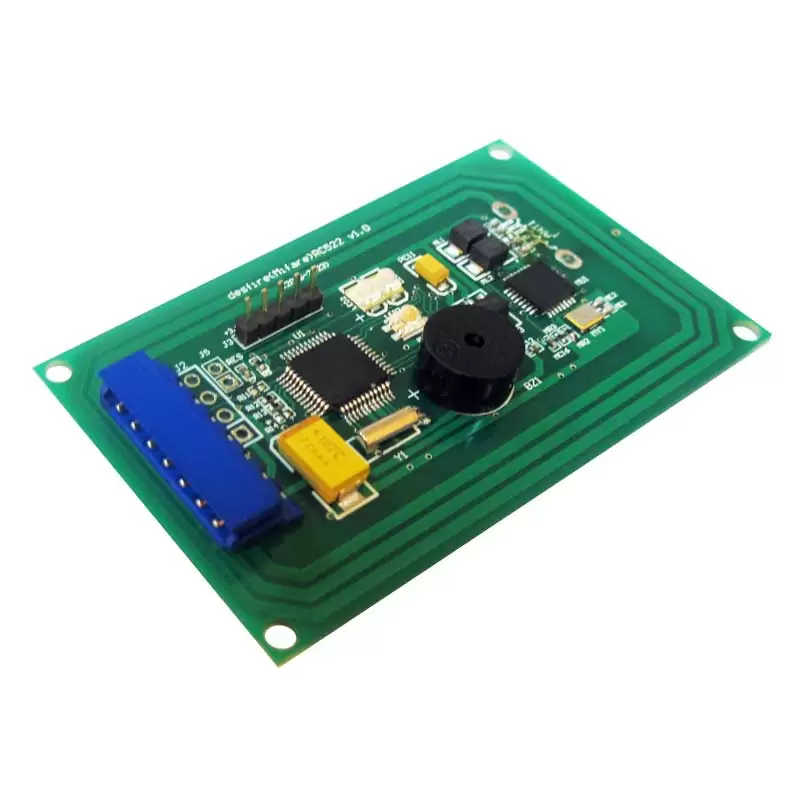

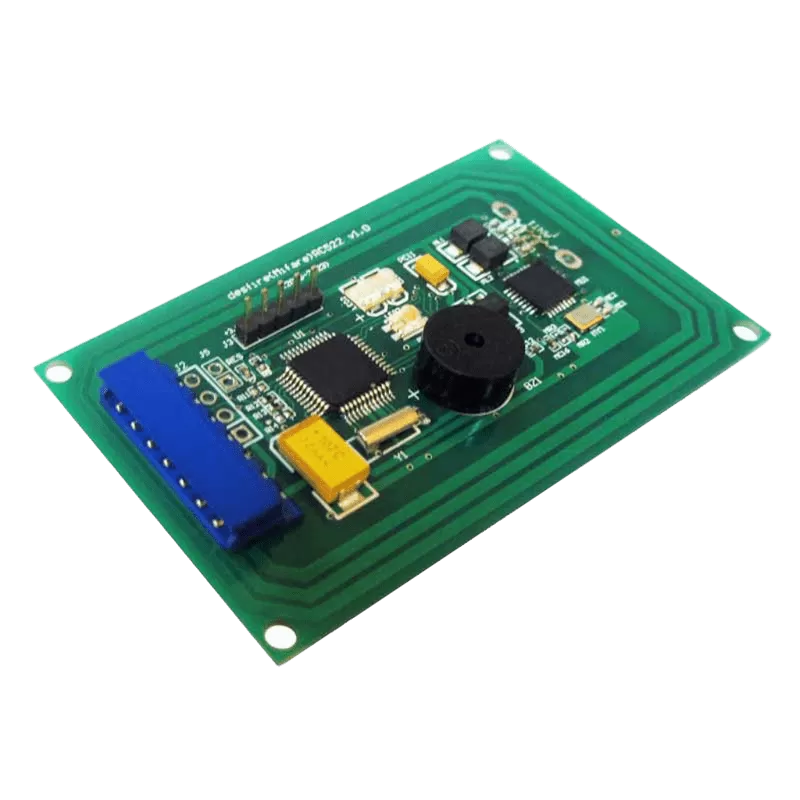

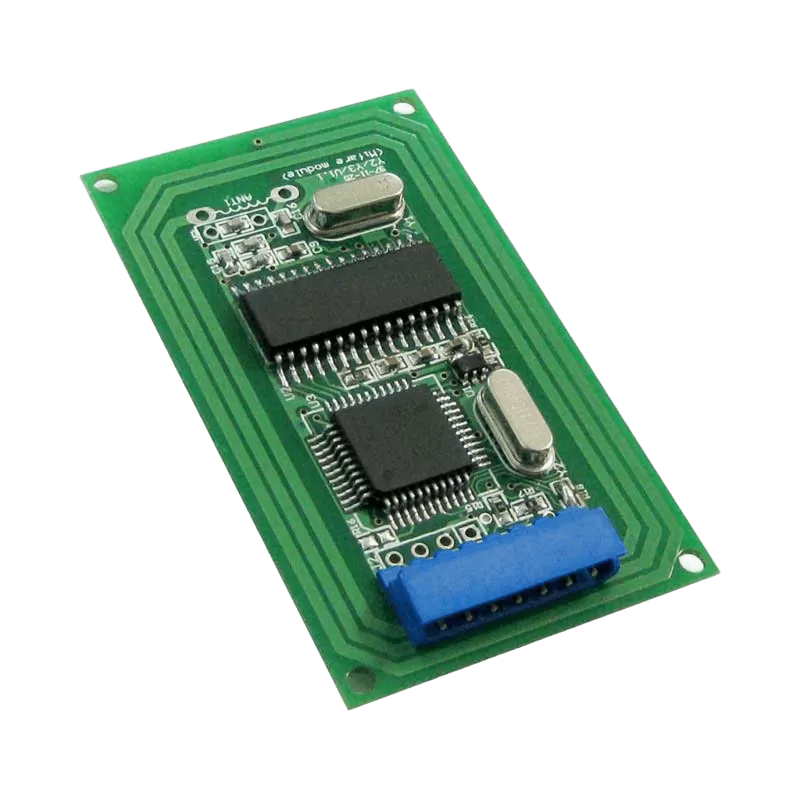

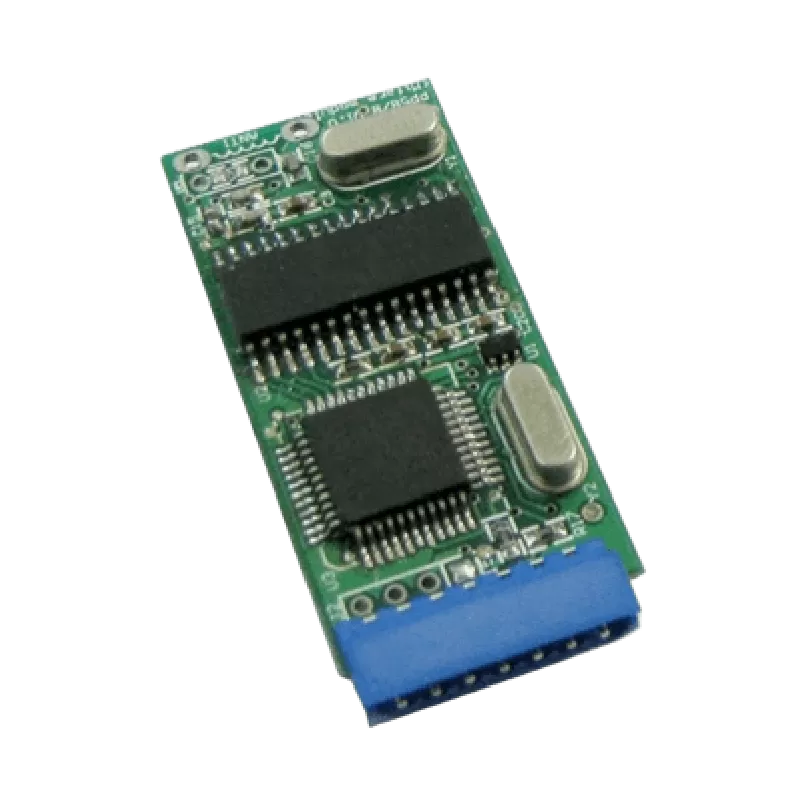

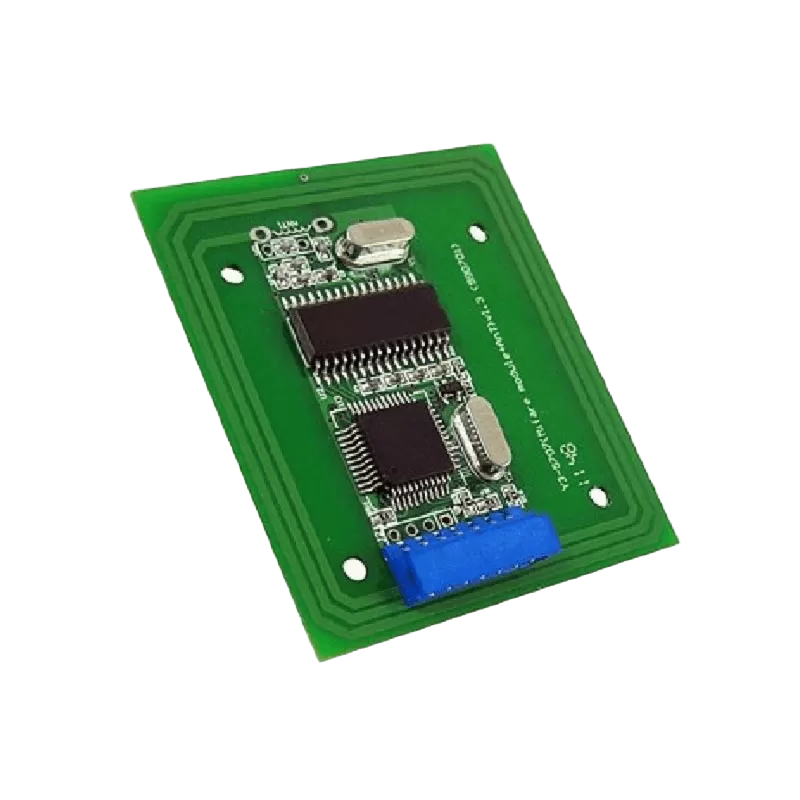

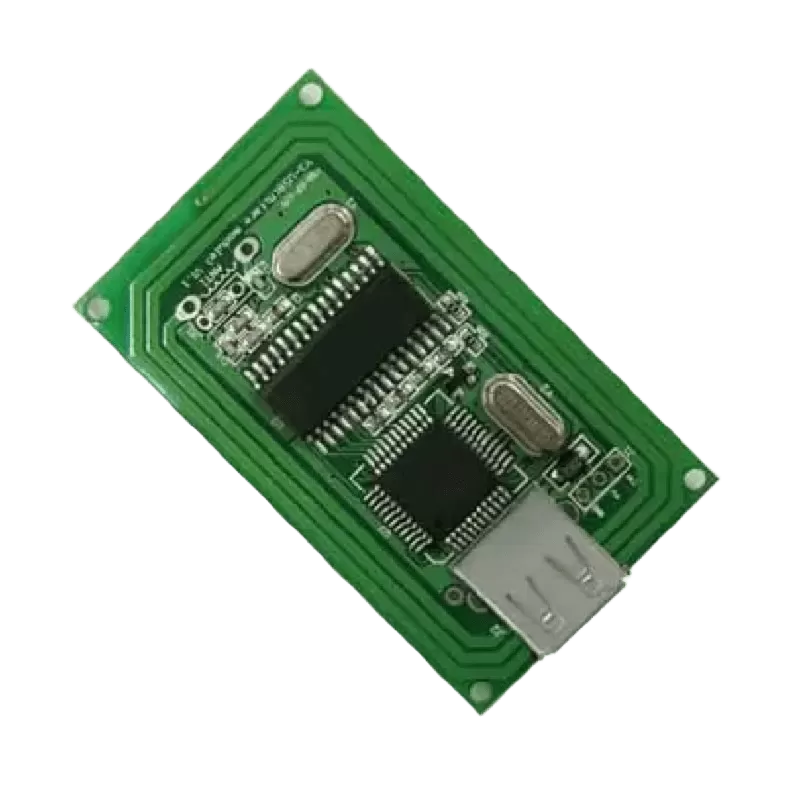

Model No.		PXMF-01BK	PIMF-02BK	PIMF-02BK/U	PIMF-05BK	PIMF-02MDTDS02
Frequency		13.56MHz
Compatibility	Read	Mifare S50 / S70 , NFC (card simulation) or  compatible	Mifare S50 / S70 , NFC (card simulation) or  compatible	Mifare S50 / S70 , NFC (card simulation) or  compatible	Mifare S50 / S70 , NFC (card simulation) or  compatible	Mifare, Mifare Ultralight, NFC (card simulation) Mifare DESFire EV1 8K / Mifare DESFire EV2
	Write	Mifare S50 / S70 , NFC (card simulation) or  compatible	Mifare S50 / S70 , NFC (card simulation) or  compatible	Mifare S50 / S70 , NFC (card simulation) or  compatible	Mifare S50 / S70 , NFC (card simulation) or  compatible	Mifare DESFire EV1 8K / Mifare DESFire EV2
With internal antenna		NO	YES	YES	YES	YES
Reading range		Depending on tag size, tag type and antenna size	Max. 5 cm	Max. 5 cm	Max. 7 cm	Max. 3 cm
Output format		Wiegand 26&34 bits / UART(TTL) / ABA	Wiegand 26&34 bits / UART(TTL) / ABA	USB	Wiegand 26&34 bits / UART(TTL) / ABA	UART(TTL) / RS-232(Optional)
Operating System Support		---	---	*Windows XP SP2 / Vista / 7 / 8 / 8.1 / 10   *Mac OS 8/9, OS X *Linux/Android  *Windows 11(Optional)	---	---
Power Voltage		DC 5V	DC 5V	By USB	DC 5V	DC 5V
Material		---	---	---	---	---
Dimensions (LxWxH)mm		53 x 23	64 x 38	64 x 38	64 x 56	64 x 38

Counterfeit Forestalling	Asset Management	Contactless payment system
Healthcare	Entertainment Facilities	Access Control /Intercom
Automobile instrument control	Logistics & Supply chain	Production control
Robotics Navigation	Kiosk / POS system	Rental Equipment Solution
