Model：PIFC

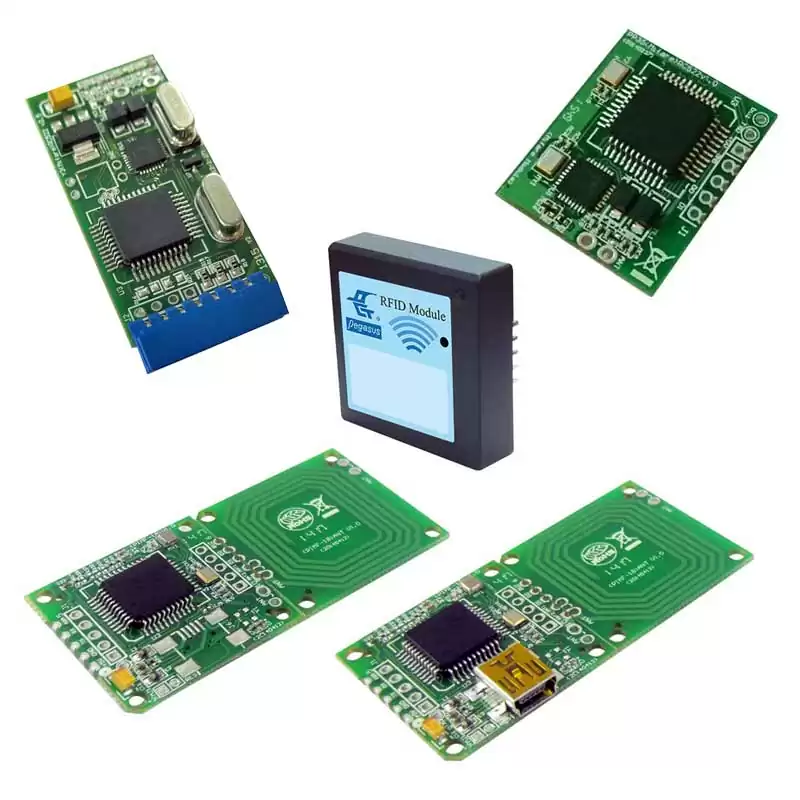

13.56MHz RFID Felica/Mifare Read Module
Product
Introduction
- The Felica/Mifare contactless card Read module is completely Integrated Protocol Handling for ISO 14443 A, ISO 18092 and NFC Forum.
- They come with the choice of internal antenna or external antenna and are suitable and for embedded applications and general Electronic Devices. OEM/ODM service is available.
Features
- Support multi-type of cards and protocol: ISO 18092 NFC, FeliCa, ISO 14443 Type A, MIFARE® Classic, MIFARE® Plus, MIFARE® Ultralight
- Communications: Wiegand, USB, UART (TTL), RS-232
- Anti-collision function that simultaneously reads multiple cards
- Provide SDK for development
Specification
| Appearance | With LED indicator
|
|
|
|
|
|
|---|---|---|---|---|---|---|

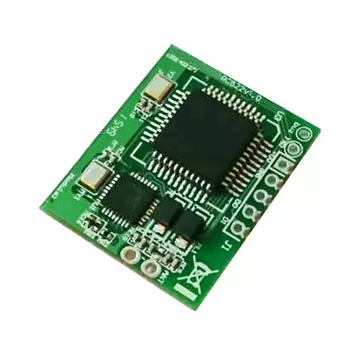

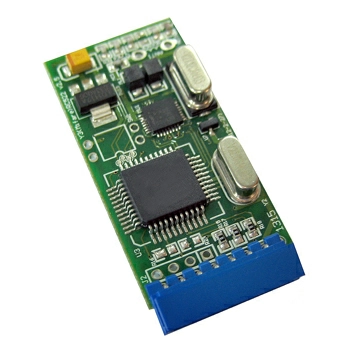

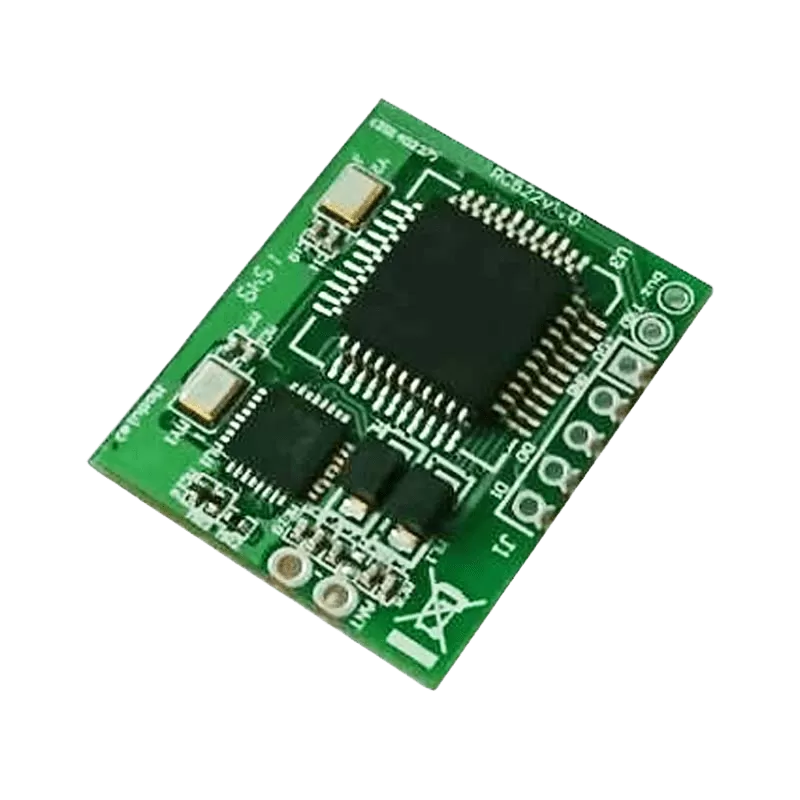

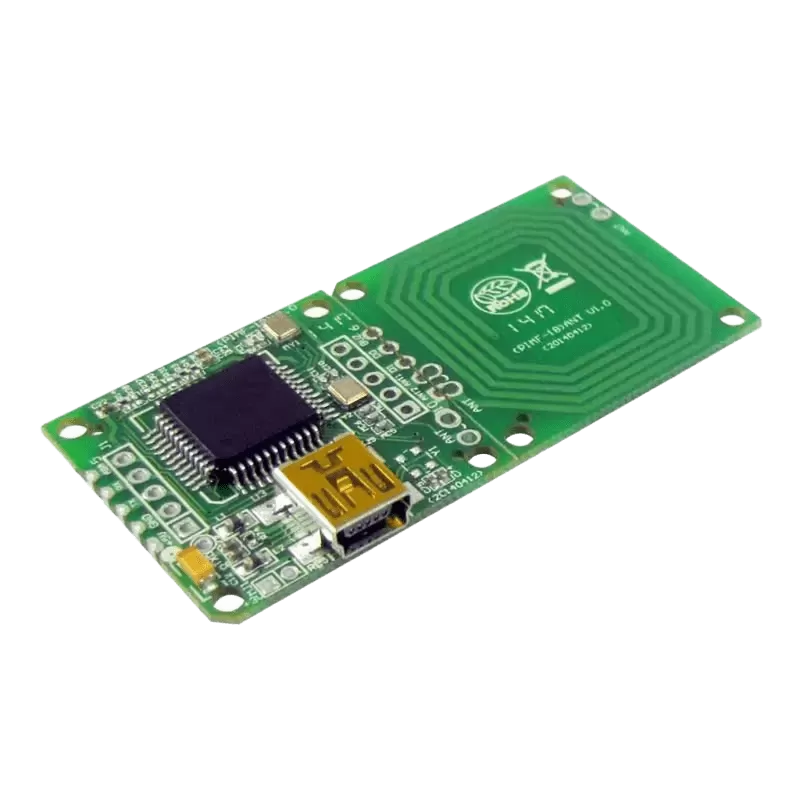

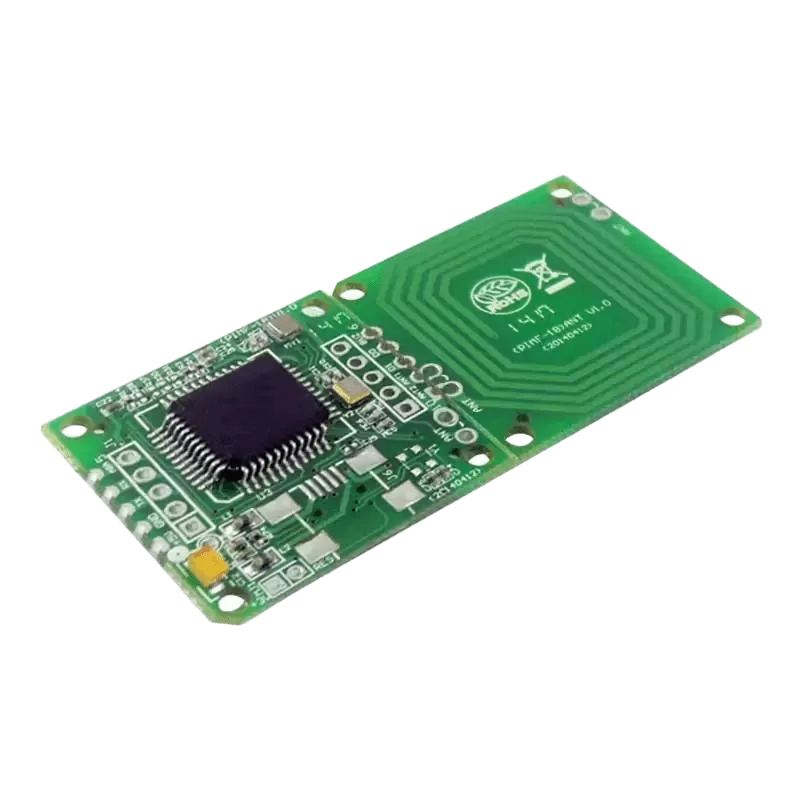

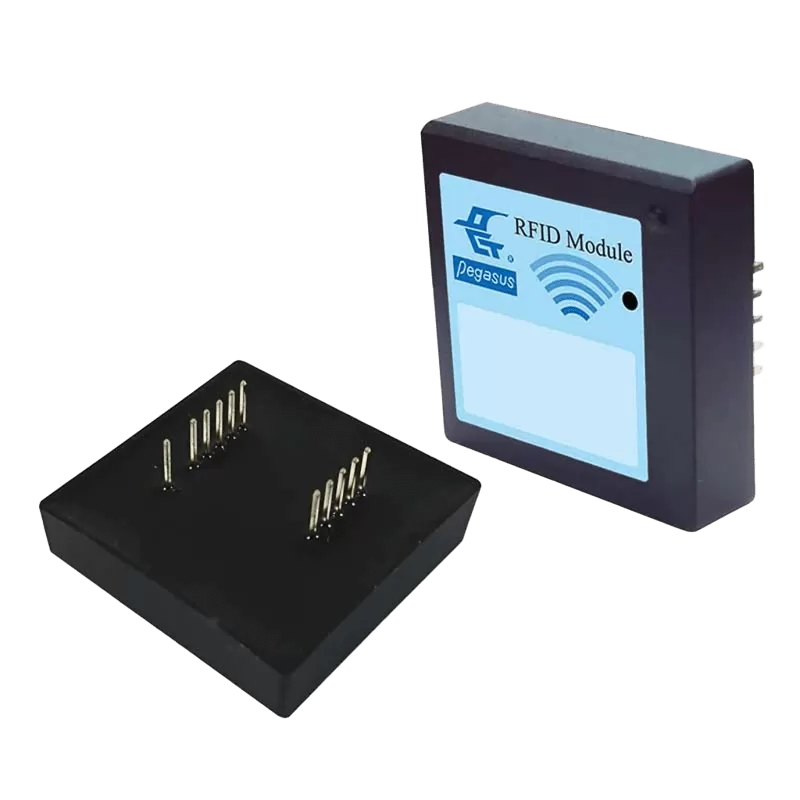

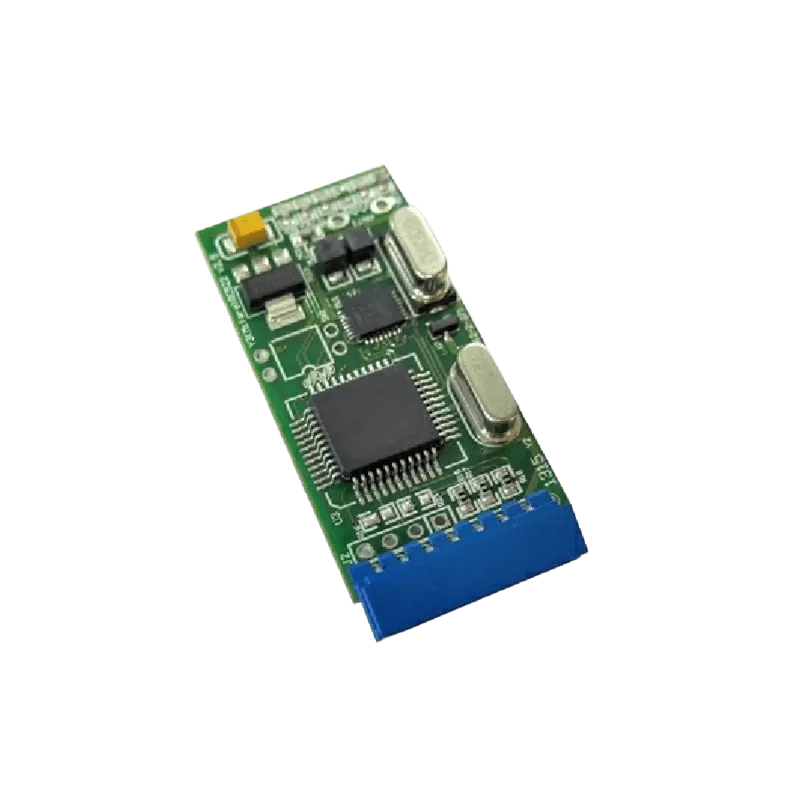

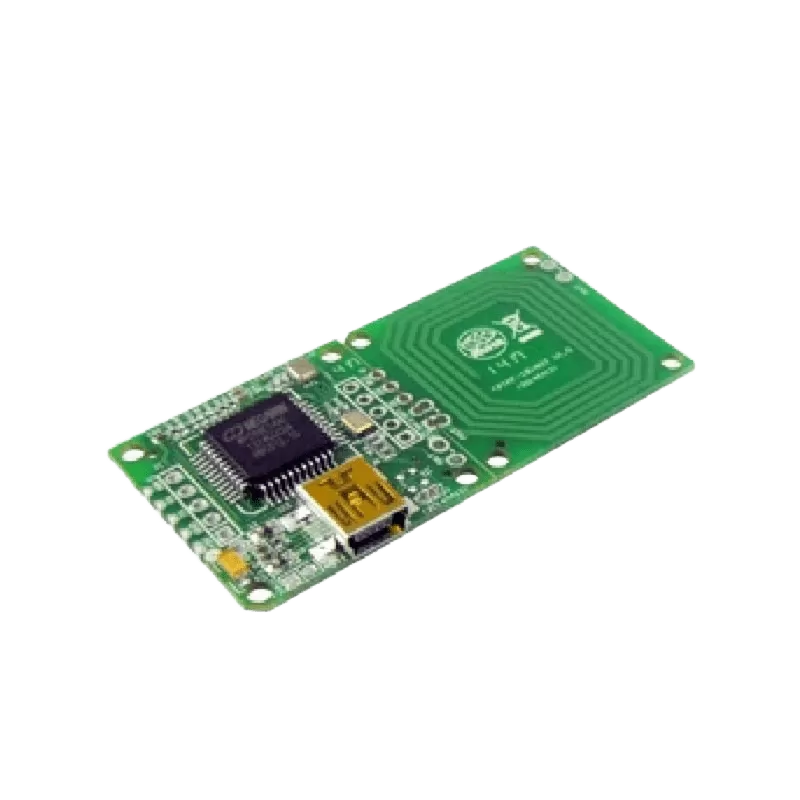

| Model No. | PIFC-18EU1 | PXFC-13SN | PIFC-18SN | PIFC-18SN/U | PIFC-HSN | PXFC-01SN |
| Frequency | 13.56MHz | |||||
| Compatibility | Mifare S50 / S70,Mifare Ultralight, Felica, NFC (card simulation) or compatible | |||||
| With internal antenna | YES | NO | YES | YES | YES | NO |
| Reading range | Max.4 cm | Depending on tag size, tag type and antenna size | Max.3 cm | Max.3 cm | Max.3 cm | Depending on tag size, tag type and antenna size |
| Output format | USB Optional: Wiegand 26/34/58 bit, UART(TTL) |
Wiegand 26, 34 bits, UART(TTL), Optional:RS-232 | Wiegand 26/34 bits, UART(TTL) / ABA(Optional) | USB, Wiegand 26/34 bits, UART(TTL), | Wiegand 26/34 bits, UART(TTL) / ABA(Optional) | Wiegand 26, 34 bits, UART(TTL), Optional:RS-232 |
| Power Voltage | By USB | DC 5V | DC 5V | By USB | DC 5V | DC 5V |
| Material | --- | --- | --- | --- | ABS | --- |
| Dimensions (LxWxH)mm | 58 x 29 | 23 x 29 | 58 x 29 | 58 x 29 | 32 x 32 x 8 | 53 x 23 |
Application field
 |
 |
 |
| Counterfeit Forestalling | Asset Management | Contactless payment system |
 |
 |
 |
| Healthcare | Entertainment Facilities | Access Control /Intercom |
 |
 |
 |
| Automobile instrument control | Logistics & Supply chain | Production control |
 |
 |
 |
| Robotics Navigation | Kiosk / POS system | Rental Equipment Solution |
Mifare is a registered trademark of NXP B.V.
FeliCa is a trademark of Sony Corporation.
Specifications subject to change without notice for further modification.
Specification
Model No
PIFC-18EU1 ;PXFC-13SN ; PIFC-18SN ; PIFC-18SN/U ; PIFC-HSN ;PXFC-01SN
Frequency
13.56MHz
Compatibility
Mifare S50 / S70,Mifare Ultralight, Felica, NFC (card simulation) or compatible
LED indicator
YES ; NO ; YES ; YES ; YES ; NO
With internal antenna
YES ; NO ; NO ; NO ; NO ; NO
Reading range
Max.4 cm ;Depending on tag size, tag type and antenna size ; Max.3 cm ; Max.3 cm ; Max.3 cm ; Depending on tag size, tag type and antenna size
Output format
USB Optional: Wiegand 26/34/58 bit, UART(TTL) ; Wiegand 26, 34 bits, UART(TTL), Optional:RS-232 ; Wiegand 26/34 bits, UART(TTL) / ABA(Optional) ; USB, Wiegand 26/34 bits, UART(TTL) ; Wiegand 26/34 bits, UART(TTL) / ABA(Optional) ; Wiegand 26, 34 bits, UART(TTL), Optional:RS-232
Power Voltage
By USB ; DC 5V ; DC 5V ;DC 5V ; By USB ; DC 5V ; DC 5V
Material
PIFC-HSN ( ABS )
Dimension (LxWxD)mm
58 x 29 ; 23 x 29 ; 58 x 29 ; 58 x 29 ; 32 x 32 x 8 ; 53 x 23
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
