Features
- Classical RFID reader
- Support 125KHz & 13.56MHz

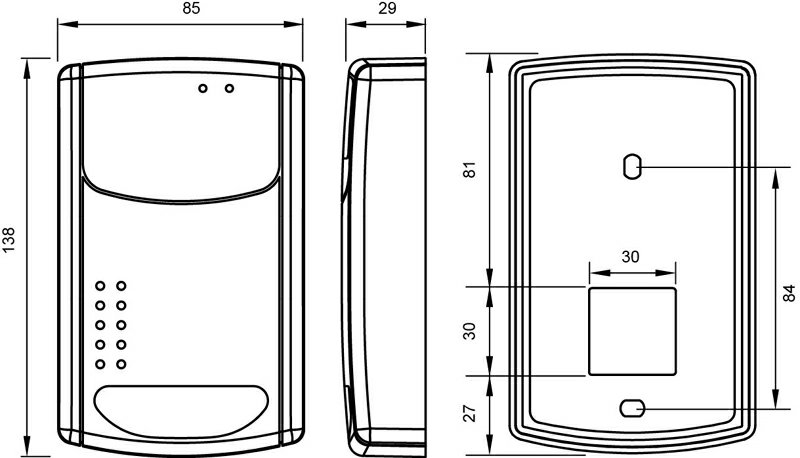

Dimension: Unit(mm)
Application field
 |
 |
 |
 |
| Charging station | HMI、PLC | Production control | Vehicle rental system |
 |
 |
 |
| Kiosk/POS System | Membership System | Library automation |
Ordering information
| PP-610-1/NW34 | 125KHz ASK EM Proximity Reader With Epoxy, Wiegand 34bits |
| PP-610-0M0W34S | 13.56MHz Mifare Proximity Reader Without Epoxy, Wiegand 34bits, Read card number : in positive |
| P-610-0NT3D05 | 125KHz ASK EM Proximity Reader Without Epoxy, TCP/IP, Decimal, 10 digits, Read card number 5byte |
Mifare is a registered trademark of NXP B.V.
MIFARE DESFire is a registered trademark of NXP B.V.
Specification
Frequency
125KHz / 13.56MHz
IP Rating
IP54
Power Voltage
DC 12V
Dimensions (LxWxH)mm
137x85x29
Compatibility
125KHz ASK: ISO18000-2 EM4001, 4100, 4102, TEMIC 5567 / 13.56MHz: ISO14443 A, MIFARER Classic, Plus, Ultralight, DESFire, NFC (card simulation), ISO14443 B(Optional), ICODE-2(Optional)
Output Format/ Interface
Wiegand / TCP/IP
