125KHz RFID FSK H.I.D. Read Module

Introduction

• The 125KHz contactless card Read module is completely Integrated Protocol Handling for H.I.D. or compatible.
• They come with the choice of internal antenna or external antenna and are suitable and for embedded applications and general Electronic Devices. OEM/ODM service is available.

Features

• Communications: Wiegand 25~40 bits, ASCII, ABA
• Built-in LED & Buzzer alert.
• Provide SDK for development.

Specification

Appearance	Micro Power Standby current:  10μA~15μA

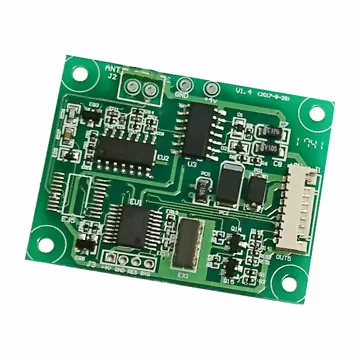

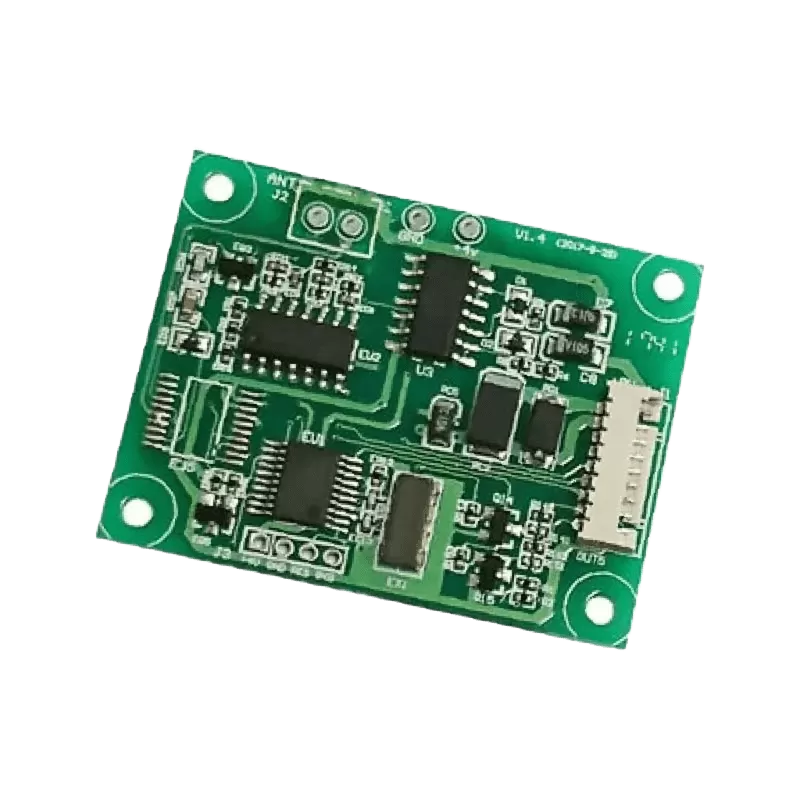

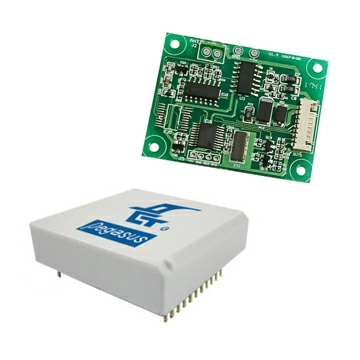

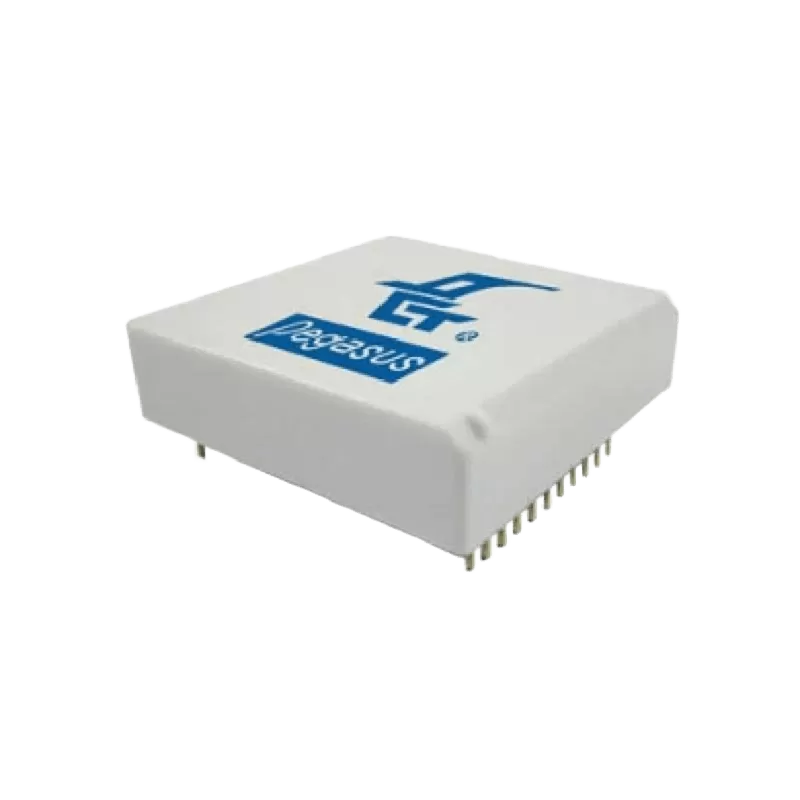

Model No.	PXHD-12W-LW1	PIHD-CWAS
Frequency	125KHz FSK
Compatibility	H.I.D. or compatible
With internal antenna	NO	YES
Reading range	Depending on tag size, tag type and antenna size	Max.7cm
Output format	Wiegand 25~40 bits (Depending on the internal data bits configured on the card)	Wiegand 26 bits, ASCII, ABA
Power Voltage	DC 4V~DC 9V	DC 3.7V ~ 5.4V
Material	---	ABS
Dimensions (LxWxH)mm	43.2 x 33	40 x 40 x 10

Application field

Counterfeit Forestalling	Asset Management	Contactless payment system
Healthcare	Entertainment Facilities	Access Control /Intercom
Automobile instrument control	Logistics & Supply chain	Production control
Robotics Navigation	Kiosk / POS system	Rental Equipment Solution

We reserve the right to change the specification without prior notice or obligation!
