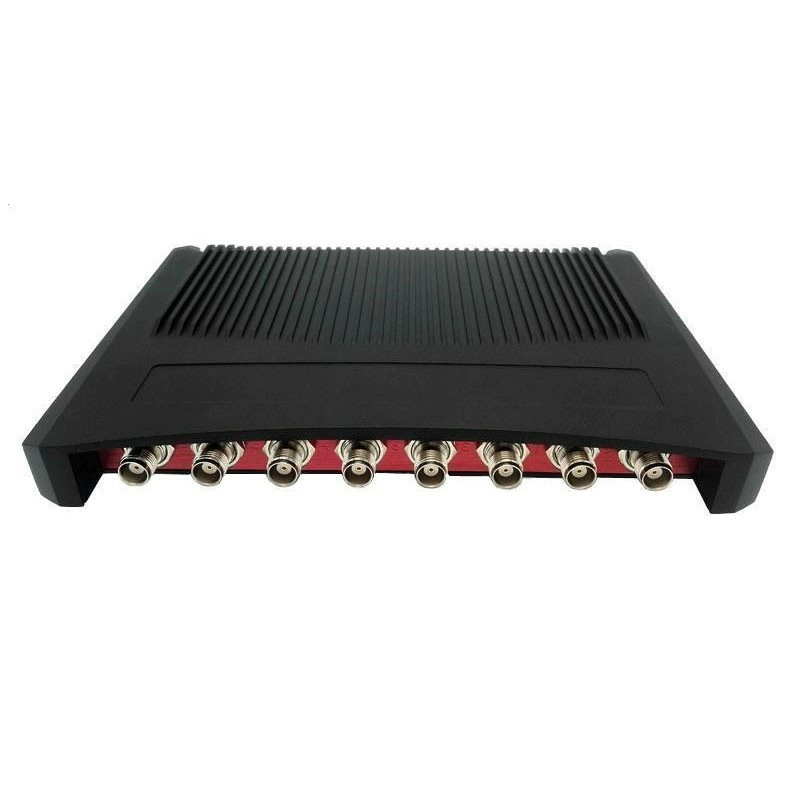

• UHF High Performance Fixed Reader is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. The reader can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.

• Self-intellectual property.
• 865~960MHz frequency band (frequency customization optional).
• Based on Impinj R2000 high performance RF engine, excellent multi-tag anti-collision operation, fully support EPC CLASS1 G2 \ ISO18000-6B protocol tags
• FHSS or Fix Frequency transmission with maximum inventory speed over 700pcs.
• Support RSSI.
• RF output power up to 33dbm (adjustable).
• Support 8 TNC antenna port with antenna failure detection.
• Tag buffer: 1000pcs@96bitsEPC.
• Low power dissipation with single +9 DC power supply, POE (Power over Ethernet) is optional.
• Support RS232, USB(Slave), RJ45 (TCP/IP) interface.
• Provide DLL and Demonstration Software Source code to facilitate further development.
• High reliability design, meet the requirements of harsh working environment.

We reserve the right to change the specification without prior notice or obligation!
