Fixed Code Remote Receiver
Features
- Compatibility : PT2262 / PT2260 / PT2264 / EV1527 / HS2240 / SC2262

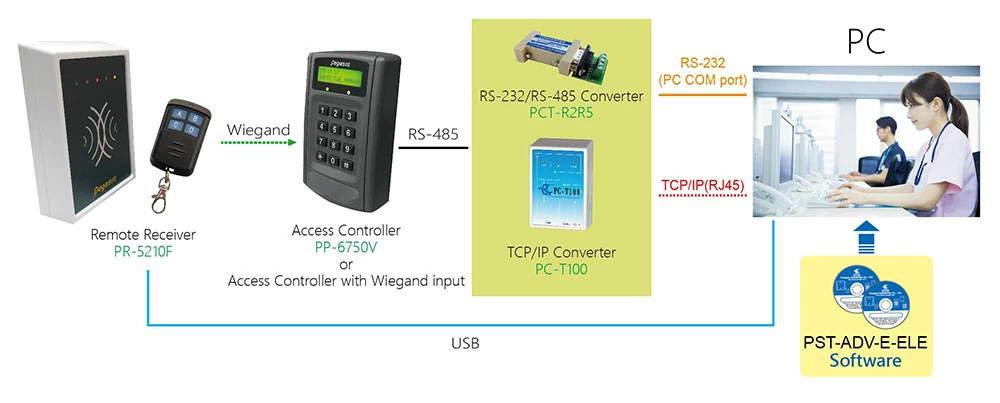

- It can connect with on-line controller to configure complete proximity Access control / Car parking system / Security alarm system.
- Built-in CPU watch dog device to prevent the shot down.
- It can connect Pongee’s off-line and on-line controller.
Off-line system：PP-87 or 5878G series controller
On-line system：It can come with PP-6750V / 3702T / 85 / 45 / 53 / 33 controller
Specification
| FREQUENCY | 433.9MHz | |
| COMPATIBILITY | PT2262 / PT2260 / PT2264 / EV1527 / HS2240 / SC2262 | |
| READING RANGE | Max. 25m | |
| OUTPUT FORMAT/ INTERFACE | Wiegand 26bits / USB | |
| POWER VOLTAGE | DC7V~24V / USB | |
| Standby current/Working current | DC 7V | 54mA / 62mA |
| DC 12V | 49mA / 60mA | |
| DC 24V | 30mA / 35mA | |
| Material | ABS | |
| DIMENSIONS (LXWXH)MM | 115×78× 31 | |
Dimension: Unit(mm)
Accessories

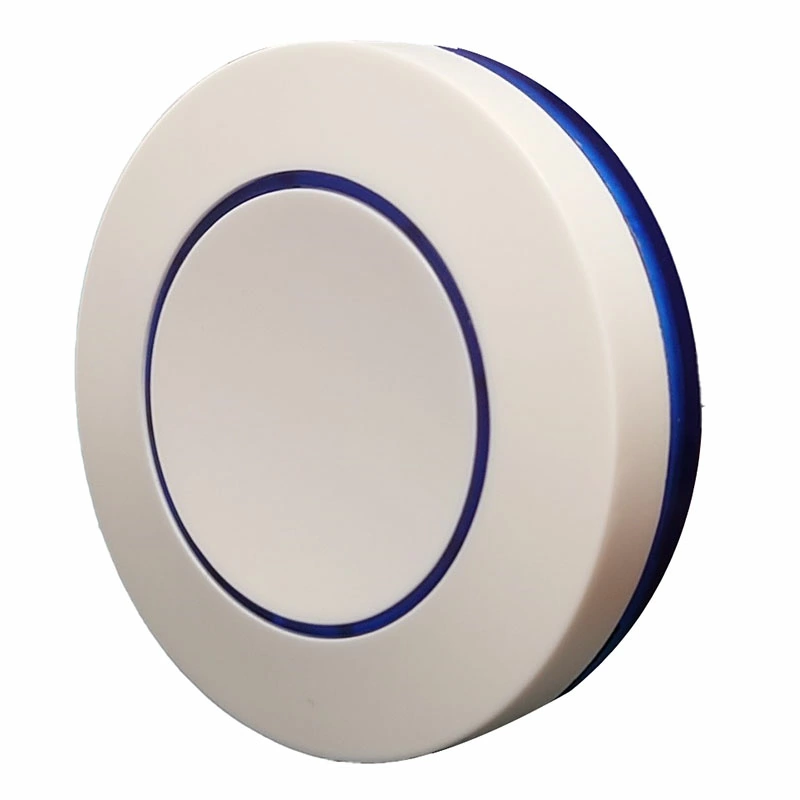

| Model No. | PTX-201FS | PTX-204FS | PTX-704FV | PTX-801FV |
| Appearance |  |  |  |  Diameter: 5cm |
| Features | 433.9MHz Single key transmitter (Chip: HS2240) | 433.9MHz Four keys transmitter (Chip: HS2240) | Waterproof 433.9MHz Four keys transmitter (Chip: EV1527) | Remote Control Switch (Chip: EV1527) |
Specifications subject to change without notice for further modification.
Download
| # | Name | Upload Date | Description | Download |
|---|---|---|---|---|
1 | PR-5210F | 2024-03-28 | Fixed Code Remote Receiver |
