Latch bolt mechanical lock
Features
- Latch bolt mechanical lock.
- Operation : Pair with PGS-703 / PGS-704 / PGS-501 latch bolt lock.
- Application For aluminum or steel door.
- Door thickness: 40~50mm
- Could be released by key or knob(By Key : MK-738-1(optional))

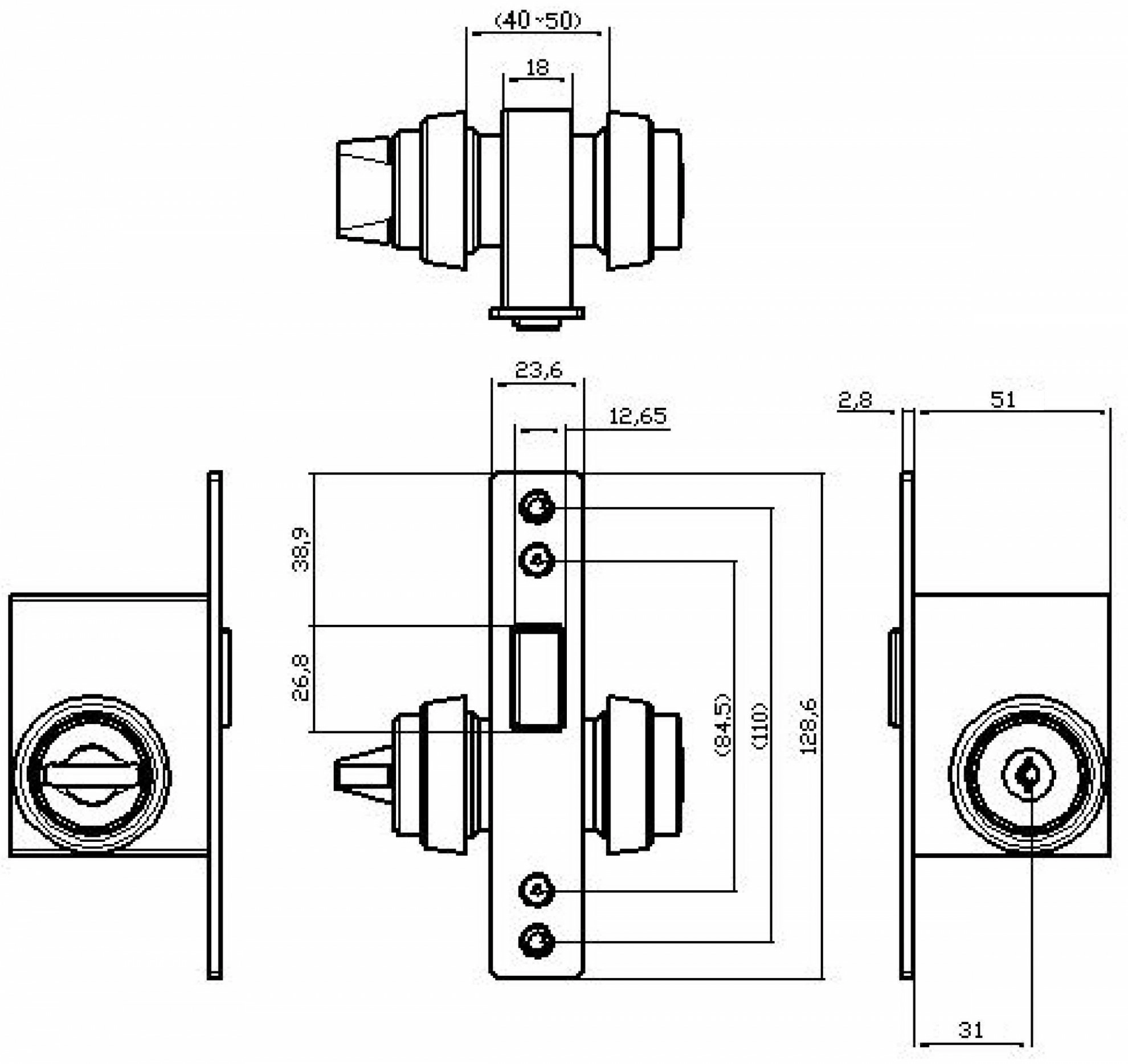

Dimensions
Unit: mm
![Latch bolt mechanical lock]( "Latch bolt mechanical lock")
We reserve the right to change the specification without prior notice or obligation!
Download
| # | Name | Upload Date | Description | Download |
|---|---|---|---|---|
1 | MK-738 | 2025-06-20 | Latch bolt mechanical lock |
