ANSI standard Fail-Safe / Secure Adjustable Electric Strike

PGS-501 Fail-Safe / Secure Adjustable Electric StrikePGS-501 Fail-Safe / Secure Adjustable Electric StrikePGS-501 Fail-Safe / Secure Adjustable Electric Strike

Model number： PGS-501

Selection Guides For Electric Strike
Inquiry
Quantity
    Share

    Features

    • Fail Secure / Fail Safe Selectable Electric type(ANSI Strike plate)。
    • All metal construction, safe and durable
    • Suitable for Aluminum door, iron door, copper sulfide door, wooden door

    Specification

    Model No.PGS-501PGS-501-24V
    PGS-501LPGS-501L-24V
    PGS-501SPGS-501S-24V
    PGS-501SLPGS-501SL-24V
    TypeFail Secure / Fail Safe selectable
    Voltage /CurrentDC12V (230mA)DC24V (115mA)
    Latch boldUp to 15mm
    Suitable for spring latch bolt38(W) x16(H)mm

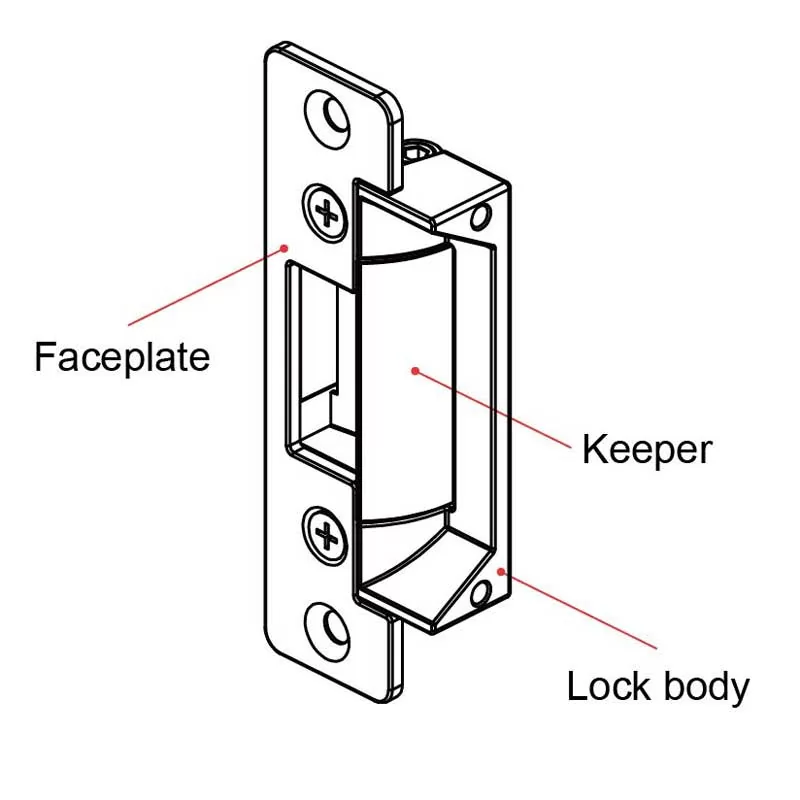

    MaterialFaceplateAluminum / Stainless steel
    LockAluminum alloy
    KeeperStainless steel
    Dimensions(LxWxD)mmFaceplate124x32x3 / 202x36x3
    Lock85x32x32
    Net Weight (g)PGS-501:165g±1%
    PGS-501L:280g±1%

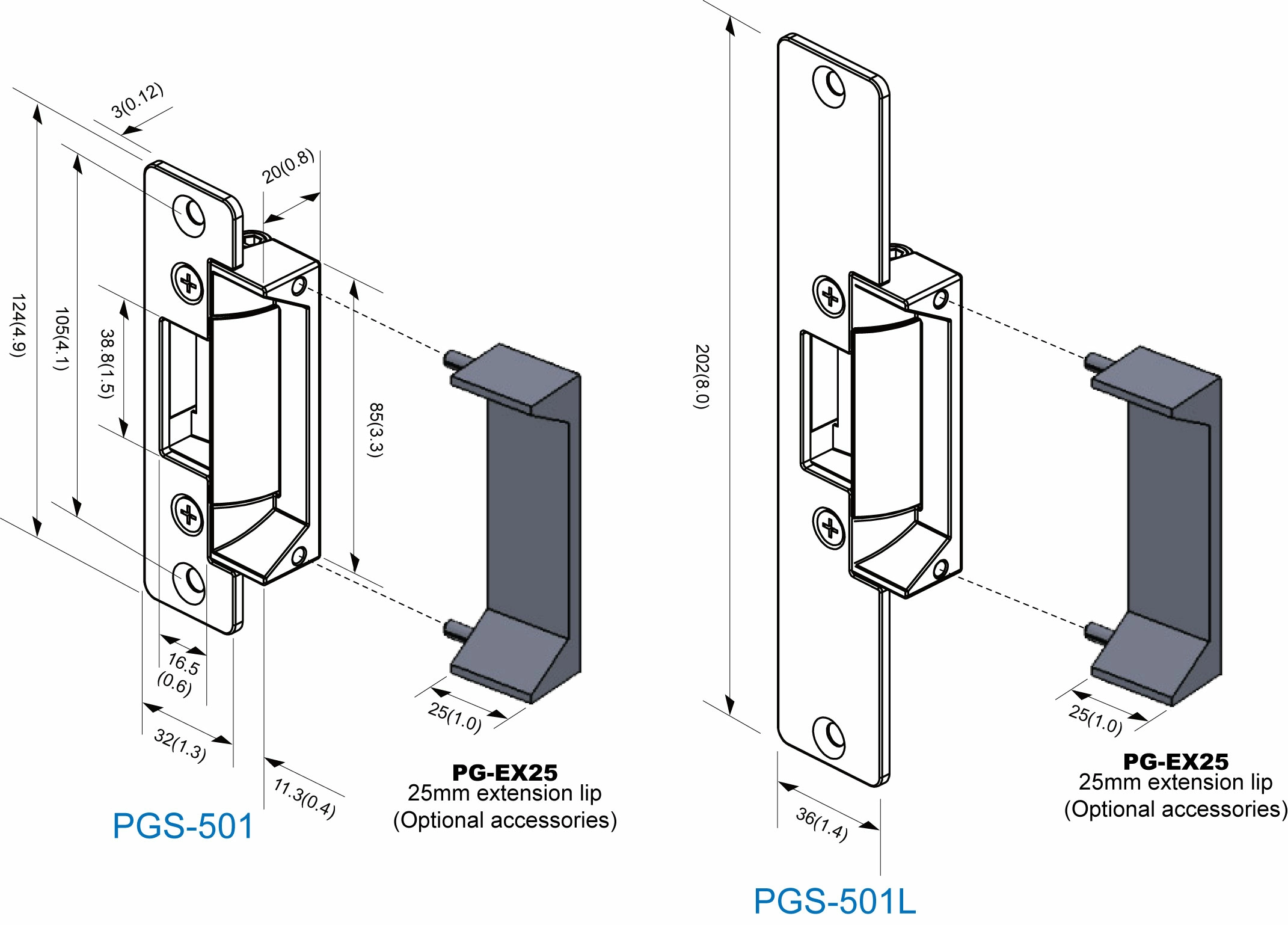

    Dimensions: mm[inch]

    /storage/system/electric_lock/Dimensions-for-PGS-501.webp

    Optional accessories

    /storage/system/electric_lock/extension-lip-for-electric-strike-25mm.webp/storage/system/electric_lock/extension-lip-for-electric-strike-50mm.webp
    PG-EX25
    25mm extension lip    		PG-EX50
    50mm extension lip

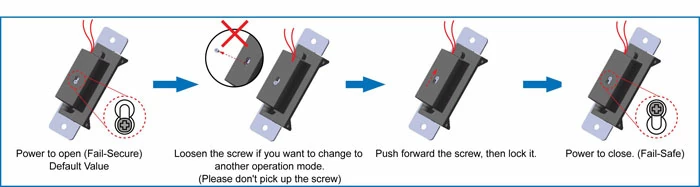

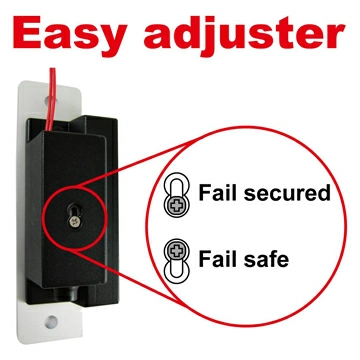

    How to change operation mode of electric strike

    /storage/system/electric_lock/How-to-change-operation-mode-of-electric-strike2.webp

    Accessories


    ANSI standard Fail-Safe / Secure Adjustable Electric StrikeANSI standard Fail-Safe / Secure Adjustable Electric Strike

    Model No.MK-738
    Dimensions(LxWxD)mm130x24.5x50
    Approx. weight690g±1%
    FeaturesPair with latch bolt lock.
    Could be released by key or knob.
    (By key: MK-738-1(optional)
    ApplicationsFor Aluminum door, iron door, copper sulfide door
    Door thickness36~56mm

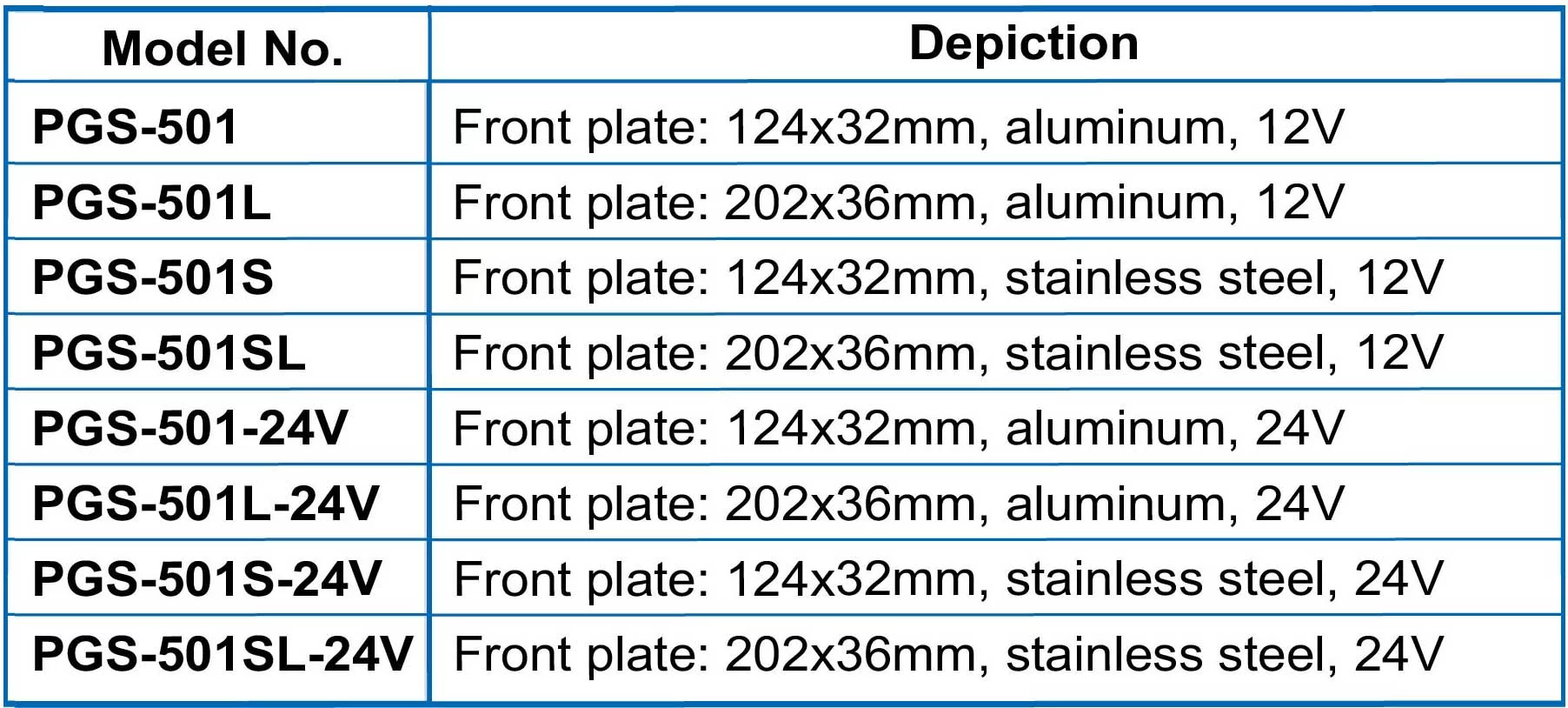

    Ordering information

    /storage/system/electric_lock/Ordering_information_for_501.webp

    Front plate(Optional)※The minimum order quantity: 200 pcs

    Model No.AppearanceDimensionsMaterial

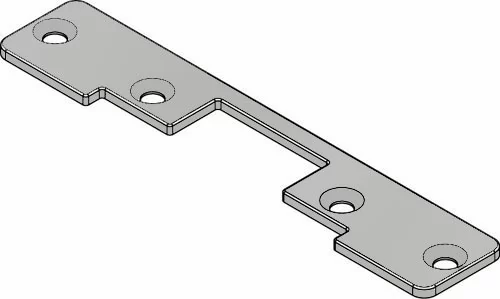

    PG-FP150proimages/electric_lock/PG-FP150.jpg150 x 28.6mmStainless steel

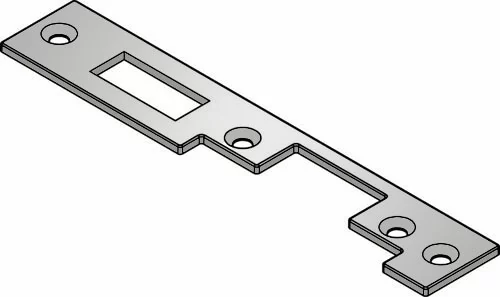

    PG-FP182proimages/electric_lock/PG-FP182.jpg182 x 32mmStainless steel

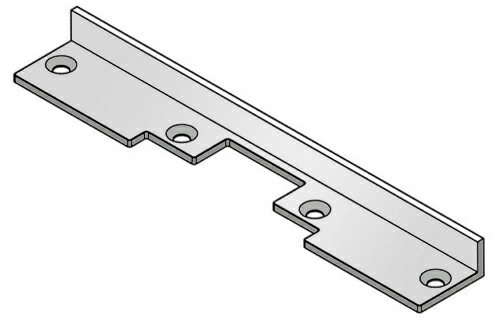

    PG-FP202proimages/electric_lock/PG-FP202.jpg201.6 x 32 x 16mmAluminum

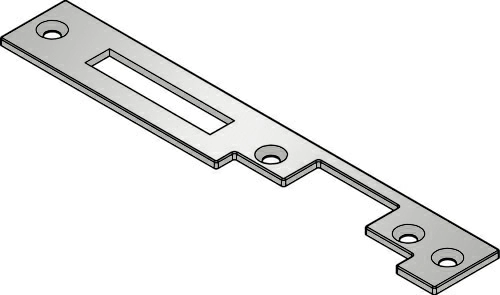

    PG-FP209proimages/electric_lock/PG-FP209.jpg209 x 31.7mmStainless steel

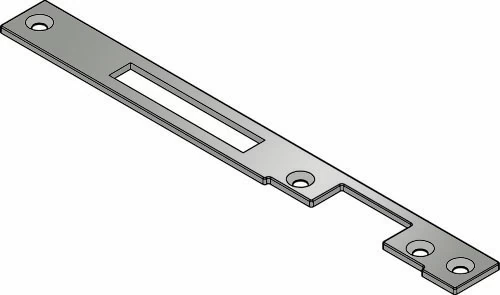

    PG-FP251proimages/electric_lock/PG-FP251.jpg251 x 25mmStainless steel

    We reserve the right to change the specification without prior notice or obligation!

    proimages/declaration-from-Pongee-Taiwan.jpg

    Download

    #NameUpload DateDescriptionDownload
    1
    PGS-501
    2025-03-05
    ANSI standard Fail-Safe / Secure Adjustable Electric Strike catalog
