Fail Secure / Fail Safe Electric Strike
Features
- Fail Secure / Fail Safe Electric type
- SW: Support door monitoring switch
- All metal construction, safe and durable
- Suitable for Aluminum door, wooden door
Specification
| MODEL NO. | PGS-705FS | PGS-705NSA | ||
|---|---|---|---|---|
| PGS-705FS/SW | PGS-705NS/SWA | |||
| PGS-705FS/SW-24V | PGS-705NS/SWA-24V | |||
| TYPE | Fail Safe | Fail Secure | ||
| VOLTAGE /CURRENT | DC12V (200mA) / DC24V (115mA) | DC12V (200mA) / DC24V (100mA) | ||
| DOOR MONITORING SWITCH | YES | |||
| LATCH BOLT | 8mm | |||
| MATERIAL | FACEPLATE | Stainless steel | ||
| LOCK BODY | Zinc alloy | |||
| KEEPER | Zinc alloy | |||
| DIMENSIONS(LXWXD)MM | FACEPLATE | 153x25x2.5 | ||
| LOCK BODY | 112x21x28 | |||
| Net Weight (g) | 310g±1% | |||

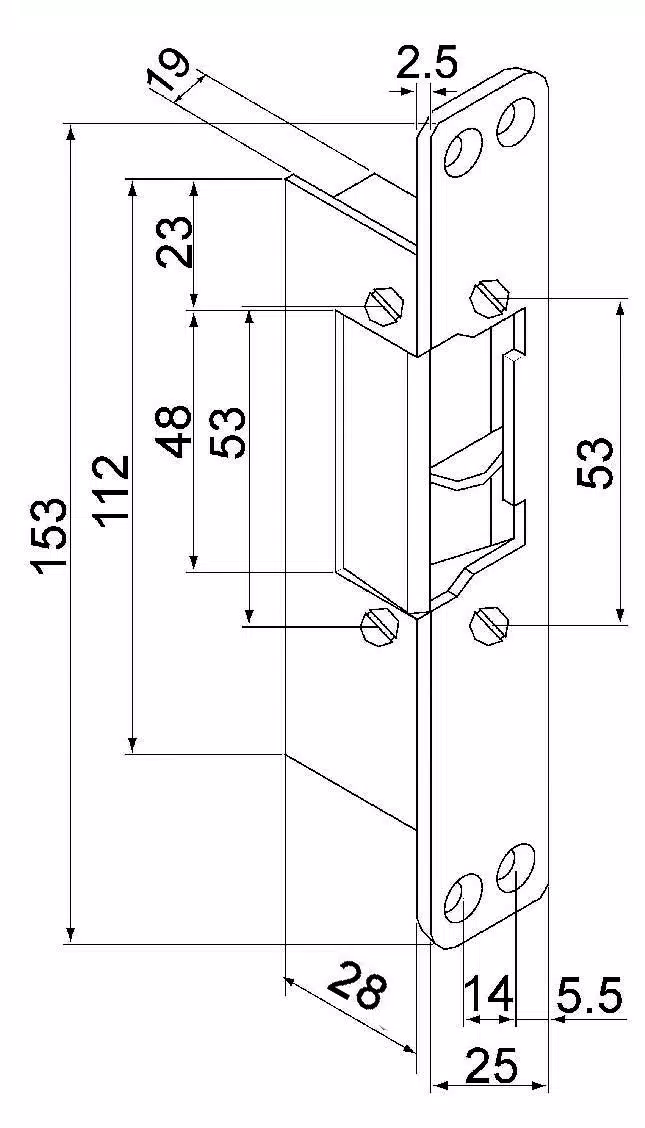

Dimension: mm

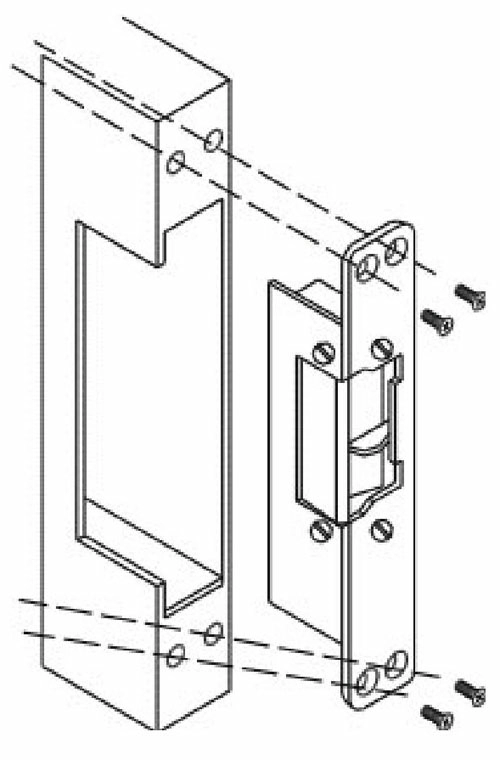

| Installation for Wooden Door | Installation for Metallic Door |
 |  |
Ordering information
| PGS-705FS | Fail Safe Electric Strike, DC 12V |
| PGS-705FS/SW | Fail Safe Electric Strike, with door monitoring switch, DC 12V |
| PGS-705FS/SW-24V | Fail Safe Electric Strike, with door monitoring switch, DC 24V |
| PGS-705NSA | Fail Secure Electric Strike, DC 12V |
| PGS-705NS/SWA | Fail Secure Electric Strike, with door monitoring switch, DC 12V |
| PGS-705NS/SWA-24V | Fail Secure Electric Strike, with door monitoring switch, DC 24V |
We reserve the right to change the specification without prior notice or obligation!
