Classical RFID reader

Classical RFID reader

Model number： PP-610

Inquiry
Quantity
    Share

    Features

    • Classical RFID reader
    • Support 125KHz & 13.56MHz

    Specifications

    Frequency125KHz / 13.56MHz
    Compatibility125KHz ASK: ISO18000-2 EM4001, 4100, 4102, TEMIC 5567 / 13.56MHz: ISO14443 A, MIFARER Classic, Plus, Ultralight, DESFire, NFC (card simulation), ISO14443 B(Optional), ICODE-2(Optional)
    Power VoltageDC 12V
    Output Format/ InterfaceWiegand / TCP/IP
    IP Rating IP54
    Dimensions (LxWxH)mm137x85x29

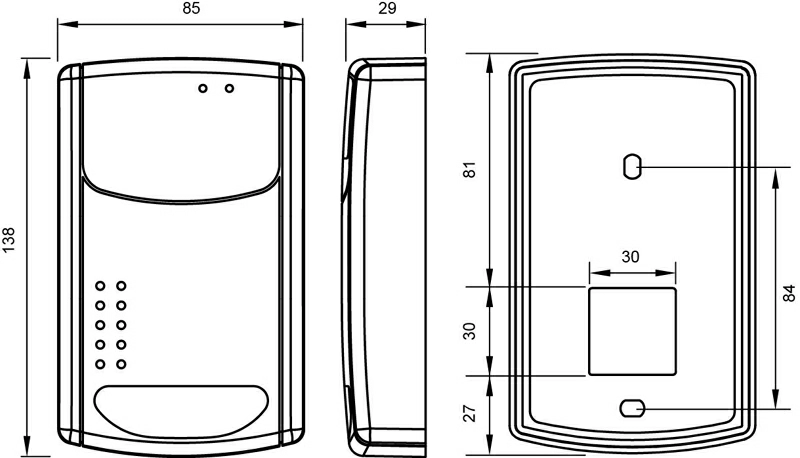

    Dimension: Unit(mm)

    Classical RFID reader

    Application field

    RFID Reader-Charging stationRFID Reader-HMI、PLCRFID Reader-Production controlRFID Reader-Vehicle rental system
    Charging stationHMI、PLCProduction controlVehicle rental system

    RFID Reader-Kiosk/POS SystemRFID Reader-Membership SystemRFID Reader-Library automation
    Kiosk/POS SystemMembership SystemLibrary automation

    Ordering information

    PP-610-1/NW34125KHz ASK EM Proximity Reader With Epoxy, Wiegand 34bits
    PP-610-0M0W34S13.56MHz Mifare Proximity Reader Without Epoxy, Wiegand 34bits, Read card number : in positive
    P-610-0NT3D05125KHz ASK EM Proximity Reader Without Epoxy, TCP/IP, Decimal, 10 digits, Read card number 5byte

    Mifare is a registered trademark of NXP B.V.
    MIFARE DESFire is a registered trademark of NXP B.V.

    Download

    #NameUpload DateDescriptionDownload
    1
    PP-610
    2025-05-26
    Classical RFID Reader Catalog
      PP-610
