Two-doors access controller

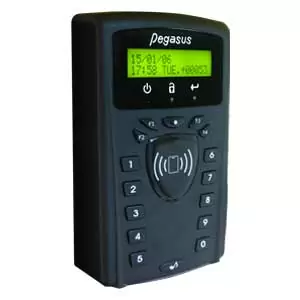

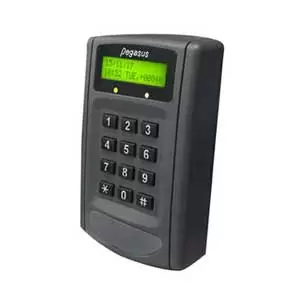

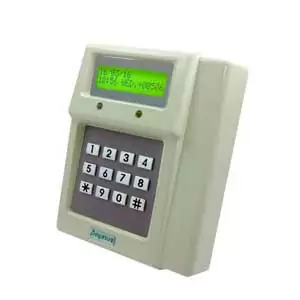

PC-6750VX/C2 Two-doors controllerPC-2750VX/C2 Two-doors controllerPC-3702T/C2 Two-doors controller

Model number： PC-6750VXC2

Inquiry
Quantity
    Share

    Features

    • Communications: Built-in RS485, RS-232 ; PC-3702/TC2 with TCP/IP
    • Support Anti-Passback; be able to assign which door is for entry and which door is for exit.
    • Support 2 Wiegand readers.

    Specification

    AppearanceTwo-doors access controllerTwo-doors access controllerTwo-doors access controller
    Model No.PC-6750VX/C2PC-2750VX/C2PC-3702T/C2
    Serial interfaceRS-485,
    RS-232(Optional)    		RS-485,
    RS-232(Optional)    		RS-485,
    TCP/IP
    Events32,000
    Card capacity32,000
    Anti-pass backYES
    Power supply/
    Consumption current    		DC 12V / 0.07A
    External readerWiegand 26/34 bits
    MaterialABSZinc alloyABS
    Dimensions
    (L×W×H)mm    		138x85x29157x124x42174x100x45

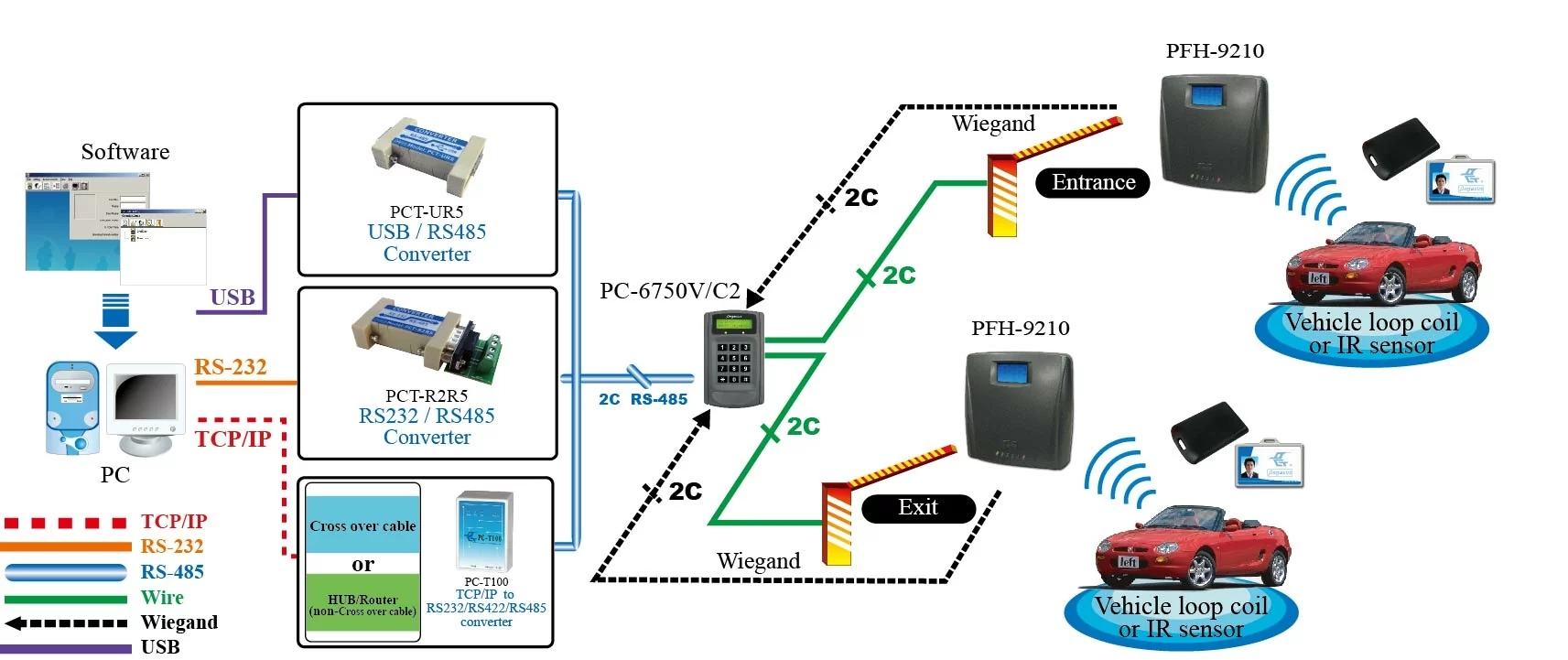

    System configuration

    proimages/multi_door/configuration-for-PC-6750VC2E.jpg

    We reserve the right to change the specification without prior notice or obligation!

    proimages/declaration-from-Pongee-Taiwan.jpg
