Thin Model Mifare Card UID Reader
Example Applications
Product Description
PUA-310V1/M is designed in accordance with ISO14443 type A standard to read or write the contactless card. This smart card reader utilizes Mifare® technology to read the memory cards, the advanced system to reduce the risk of tampered data or duplicated cards.
Supplies buzzer & LED responding signal.
- With multi card formats output thru DIP switch selection.(ASCII ID, Decimal and Hexadecimal)
- For higher security, our M3 series is applied with anti-duplication HF card.
- Free SDK available.
Specifications
| Dimension | 118 (L) x 75(W) x 17(H) mm |
|---|---|
| Mounting | Surface mount, waterproof |
| Reading range | Max. 8cm |
| Frequency | 13.56MHz |
| Applicable cards | Mifare S50 / S70, Mifare Ultralight, NFC Tag or compatible |
| Power supply | DC 5V / 12V / 24V±10%, DC 7V~32V(Optional) |
| Output interface / format | Wiegand 26/34/42/44/64 bits / ABA Track2 / RS232 / RS485 / USB |
| Card number type | Decimal / Hexadecimal, 8 digits / 10 digits |
| Operating Temperature | -10°C ~ 75°C |
Accessories
| Feature | Avoid intervention |
|---|---|
| Model No. | R-21-310-3N(White) / R-21-310-3B(Black) |
| Dimension | 119.6(L) x 76.5(W) x 15(H)mm |
| Material | Acrylic |

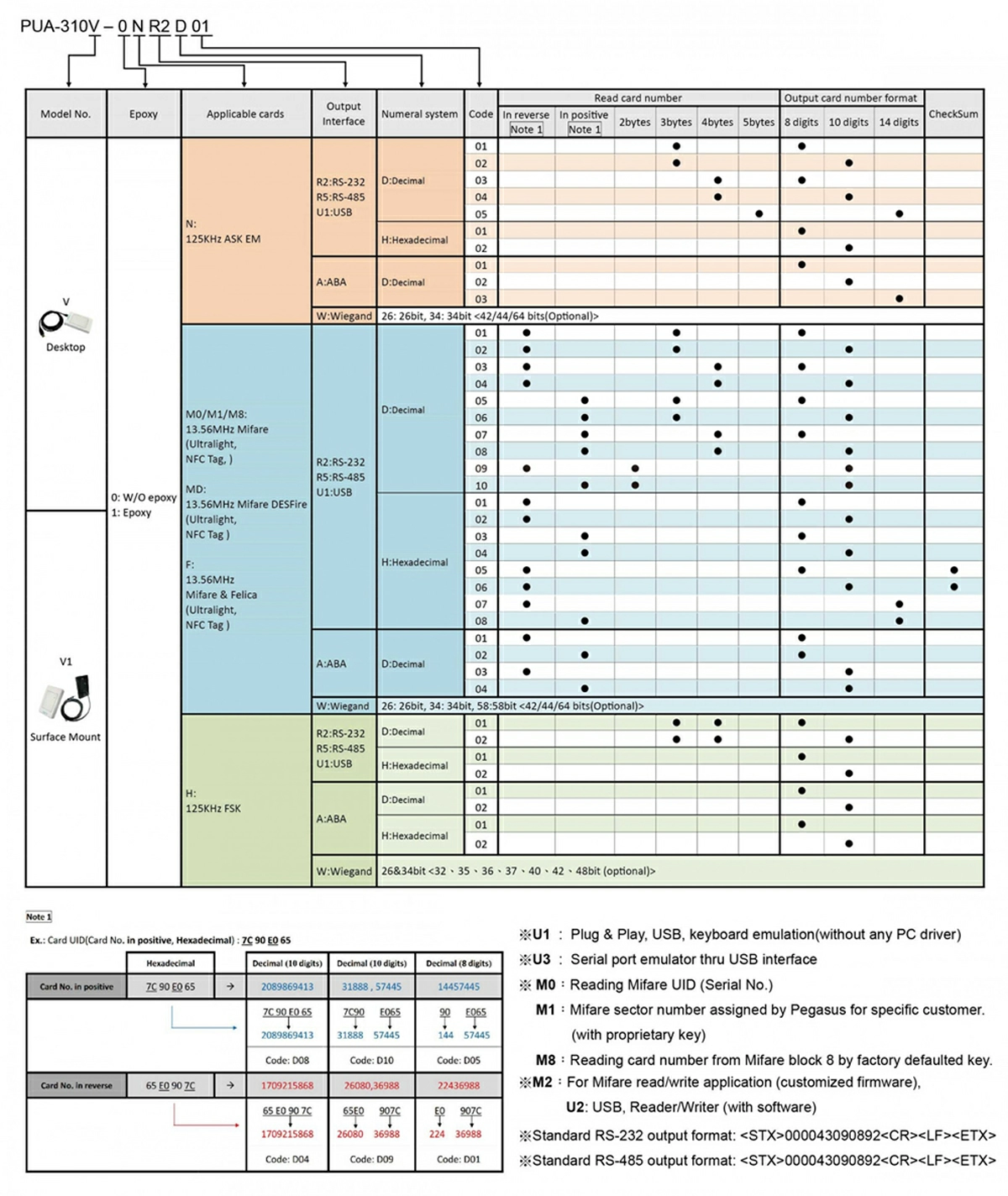

Ordering information
Mifare is a registered trademark of NXP B.V.
We reserve the right to change the specification without prior notice or obligation!
Download
| # | Name | Upload Date | Description | Download |
|---|---|---|---|---|
1 | PUA-310V1M catalog | 2024-04-01 |
