Electric Bolt Lock – Fail Safe (Ultra Narrow)
Features
- Ultra Thin & Narrow innovative design, Smart / Simple / Elegant
- Door position status monitor output contact
- Adjustable door lock delay timer
- For emergency door, glass door and frameless glass door. Wooden door
Specifications
| Model No. | DA-66S | |
|---|---|---|
| Type | Fail Safe | |
| Voltage / Current | DC12V(Standby:120mA, Working:1000mA) | |
| Time Delay | 10 Sec. / 5 Sec. / 4 Sec. | |
| LED indicator | YES | |
| Door position sensor | YES | |
| Dimension (LxWxD)mm | Faceplate | 203x25.4x3 |
| Lock | 140x23x33 | |
| Net Weight (g) | 570g±1% | |
| Bracket | --- | |

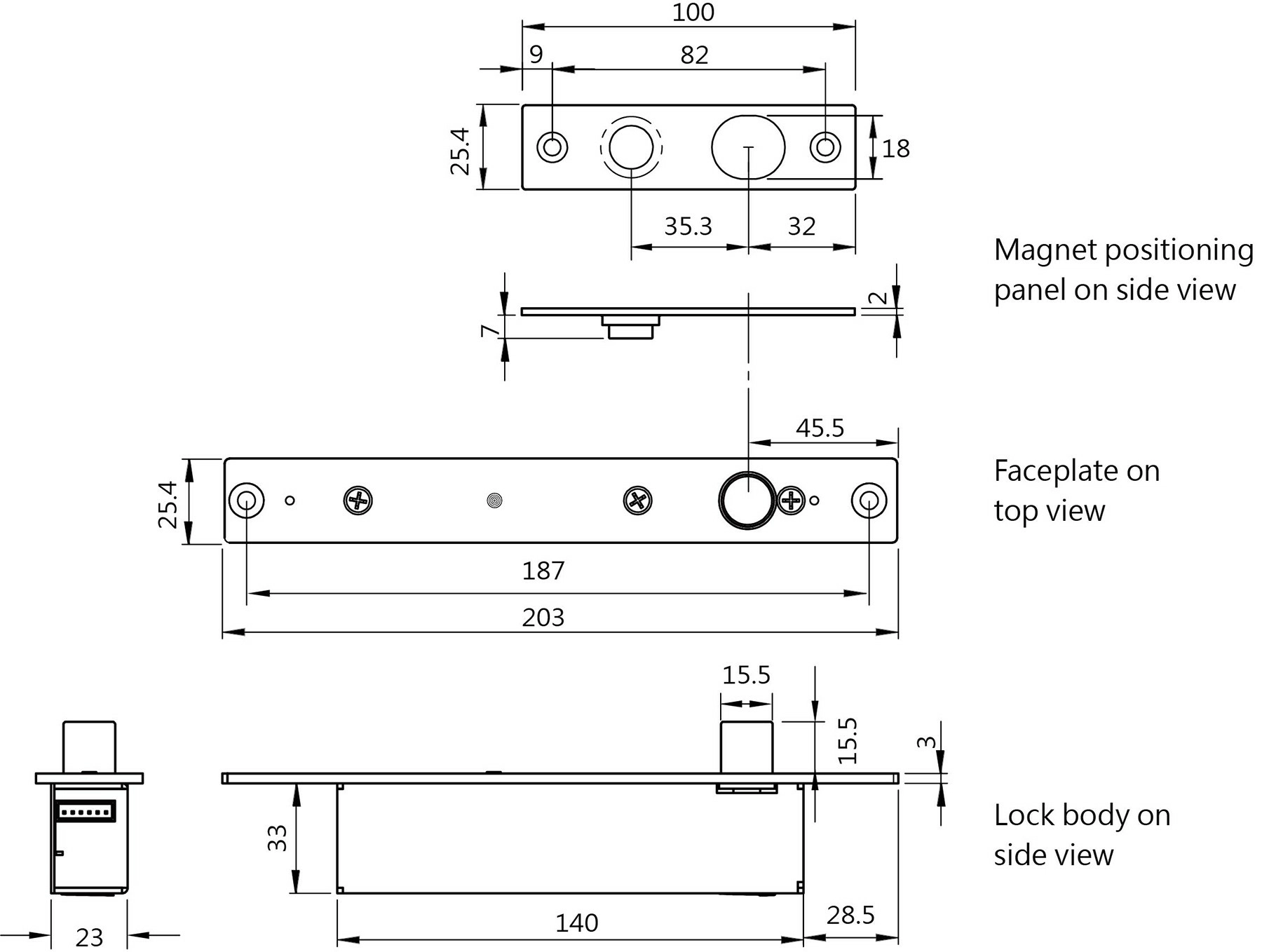

Dimension: Unit(mm)
Ordering information
| DA-66S | Fail safe type Flush Mounted Electric Drop Bolt, Door Release Time(4, 5, 10sec.) |
|---|---|
| DA-66S-I | Fail safe type Flush Mounted Electric Drop Bolt, Lock immediately |
We reserve the right to change the specification without prior notice or obligation!
Download
| # | Name | Upload Date | Description | Download |
|---|---|---|---|---|
1 | DA-66S | 2024-04-23 | Electric-Bolt-Lock-Fail-Safe-(Ultra-Narrow) catalog |
