UART(TTL), RS-232, RS-485 / Ethernet Converter Module
Product Description
PM-S2E-H01TR25 is an embedded module for conversion between UART (TTL)/RS-232/RS-485 signal and Ethernet network data signal. This module is suitable for direct connection with the MCU and CPU. Through this module, your device can be treated as internet host for sending and receiving data.
Features
- Auto-connection
- Auto-recovery
- Protocol conversion
- Easy to upgrade
- Digital TTL I/O controlled via Ehternet
Specifications
| Dimensions | 58(L) x 25(W)mm |
|---|---|
| Protocol | TCP, IP, ARP, ICMP, IGMP, UDP, DCHP |
| Network interface | 10/ 100Mbps |
| Serial line format | none parity, 8 data, 1 stop |
| Serial signal | RX(TTL), TX(TTL), RS-232, RS-485 |
| Transmission speed | 300bps ~ 921,600bps |
| Working Mode | TCP CLIENT,TCP SERVER, UDP CLIENT, UDP SERVER |
| Power input | DC 3.3V, 160mA / 5V, 170mA |
| Operating temperature | -10℃ ~ 80℃ |
| Operating humidity | 10%~90% |

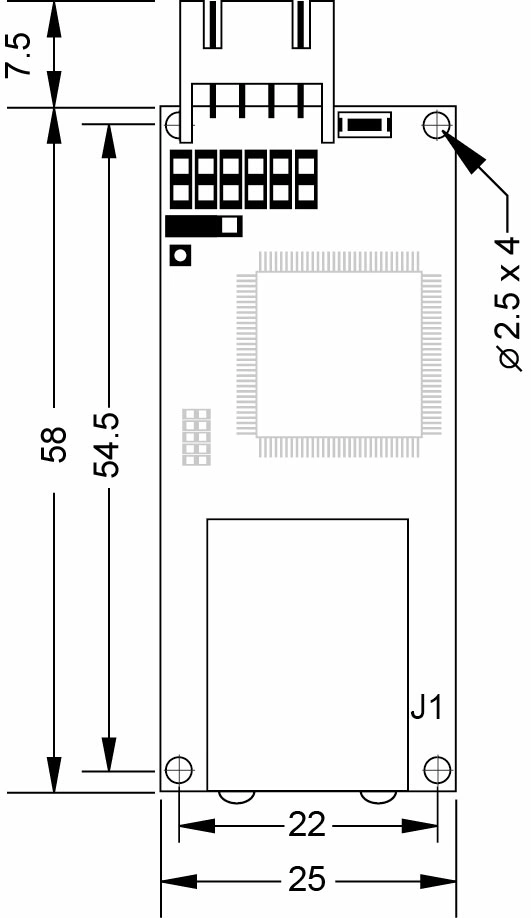

Dimensions: Unit(mm)
We reserve the right to change the specification without prior notice or obligation!
