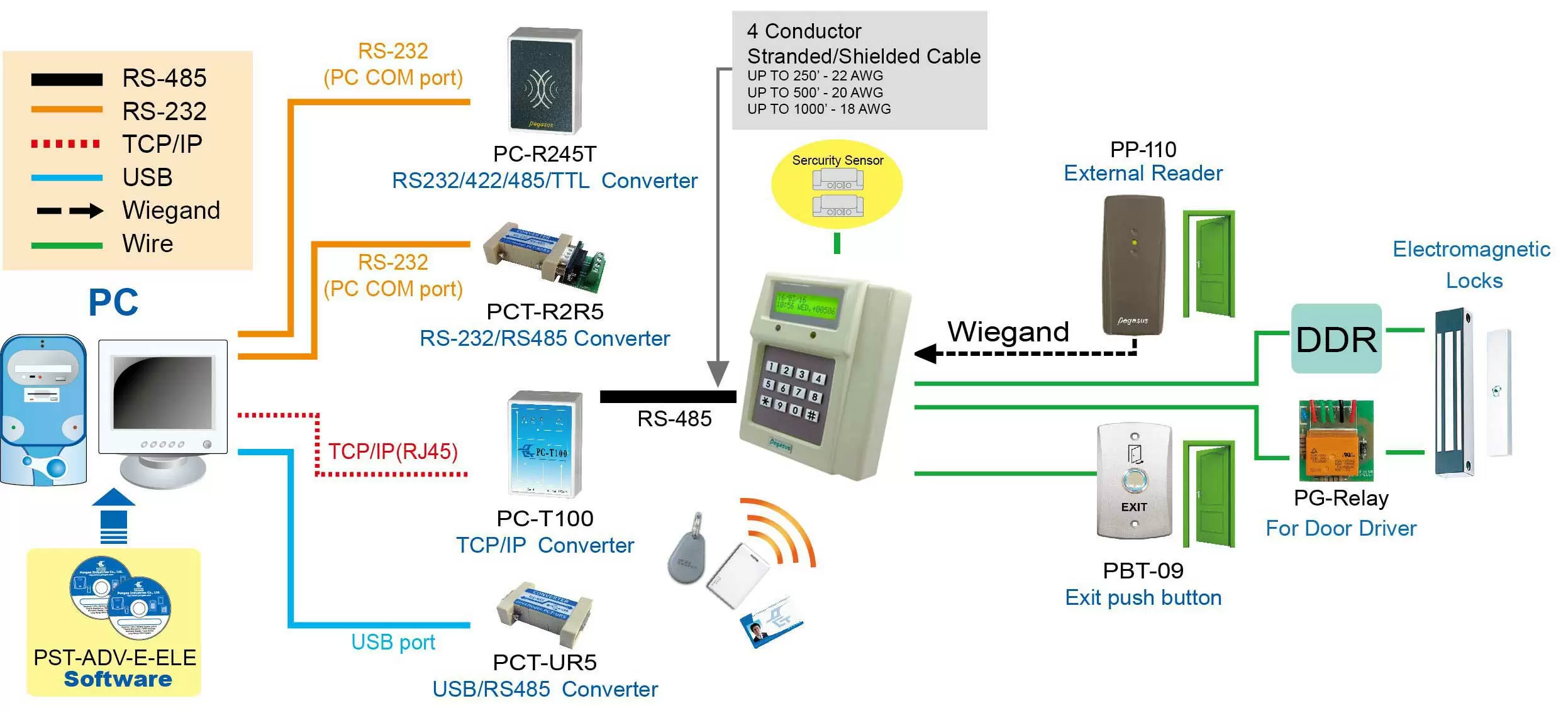

• PP-2750V is an intelligent time recording terminals designed to meet variant applications in time attendance and access control, lift control & ARM/DISARM security requirements. Each terminal can be operated independent simply or through PC/Internet adapter PC-T100 to fulfill the multiple doors access system. The recording terminal includes nearly all the necessary functions for time recording and access control with bountiful manual & PC executed commanded functions as well as friendly operation commanded for manual operation.
• With Freescale CPU supported working temperature -55~155℃
• Switching on alarm automatically, if failed input password for three times and warning management to avoid illegal entrance.
• Relay supported with shockproof, to avoid illegal open door entrance.

Features for time recording application:

• Selectable batch or real time operation mode.
• 79 duty codes, duty name defined by PC.
• Possible in 8 digits ID for time attendance recording.
• Totally 192 alarm schedules (8 schedules per hour) dry contacts output for periodic belling.
• Could collect data by real time or one by one events or massive block dump.
• High capacity with 8 digits card number. ( Either checking or without checking personal map )
• 16*2 rows of LCD display with 8 digits for displaying year, month, day, week, time & events counter.

Main features for access control application:

• Up to 90 codes 4 digits door PIN.
• Setting door monitoring time becomes second unit or minute unit. Up to 98 minutes.
• Setting door release time becomes second unit or minute unit. Up to 97minutes.
• System parameters and personal access map can be downloaded by PC or manually programmed through keypad.
• The personal access map is consisted of card ID, staff number and name, PIN and Time Zone Status, expiry date and Anti-passback.
• Excellent multiple operation modes :(1) Card only (2) Card + PIN (3)Door PIN only  (4)Card Number+PIN (5)Free access (6) Automatic operation mode by time zones.
• All operation modes with PIN are supported by selectable duress function. Also, keypad is lockable to become dumb.
• Individual personal access map can be edited by block range add or delete card in group basis by on-lined PC or by manual thru. single / block range card number or by directly reading card thru. learning mode.
• Selectable immediate or batched conditional sorting and then printing out events thru. serial output interface.
• With complete door release, held monitoring and intruded alarm period and error trials.
• Supports 8/24/48/64/96 floors lift access control.
• Full APB (anti-passback), time zone.
• Could dump all personal map in system by single PC or manual command.
