Exit Push Button

Model number: PBT-2861

Inquiry
Quantity

Specification

Size5(plate) / 26.7(total depth) x 86(W) x 86(L)mm
Net Weight115g±5%
Hole distance60mm
MaterialFace plate: stainless steel / Button: stainless steel
Operating temperature-20℃ ~ 55℃
CircuitPUSH ON
Maximum limit power2A / 36V
Contact resistance≦50mΩ
Insulation resistance≧50MΩ
Insulation strength500VAC 1min
Life1,000,000 cycles (Mechanical) / 200,000 cycles (Electrical)
Key stroke2 mm
IP RATINGSwitch sealed to IP65
​​​​​

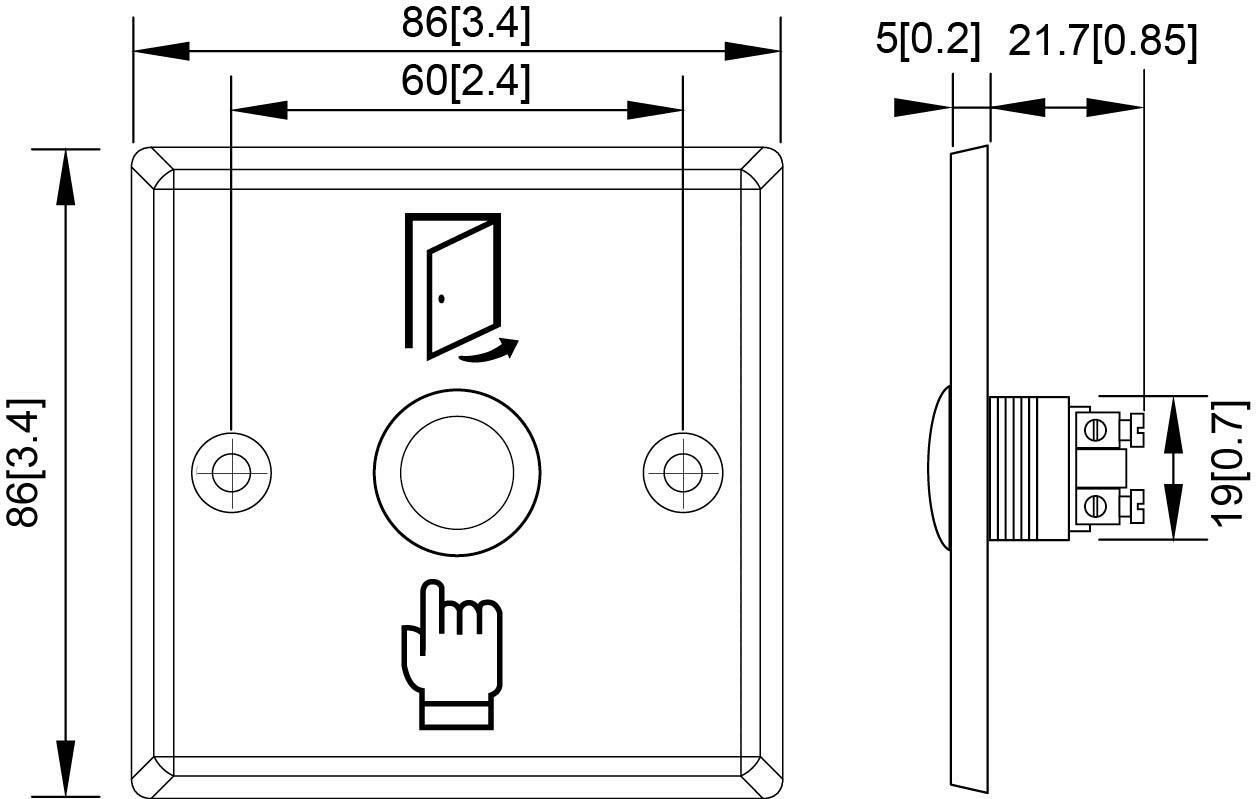

Dimension: mm[inch]

/storage/system/Exit_push_button/Dimension_for_PBT-2861.jpg

We reserve the right to change the specification without prior notice or obligation!
