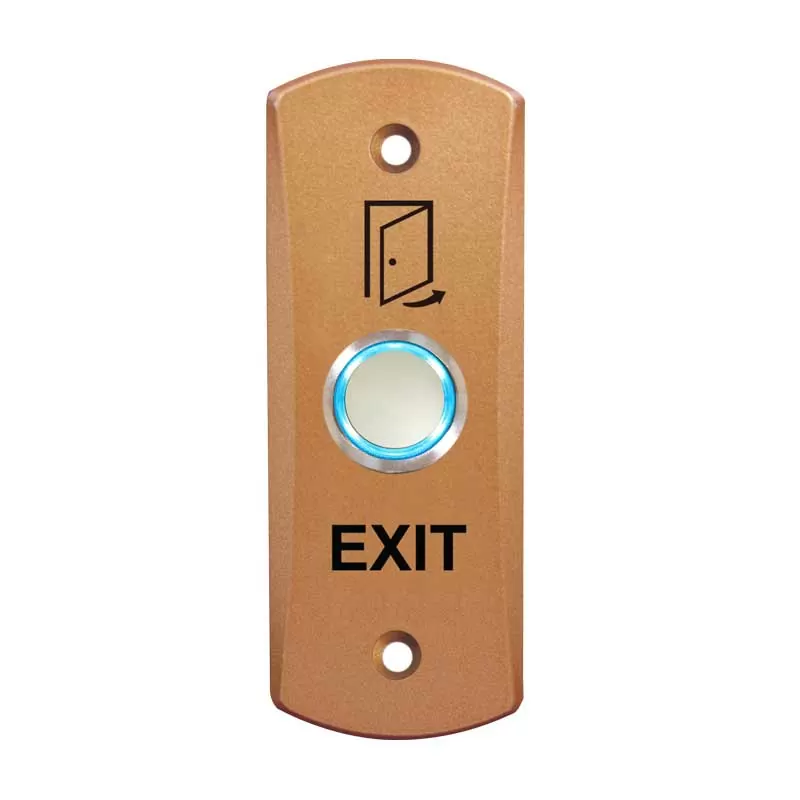

PBT-08 Exit Push Button (With LED)

Model number: PBT-08

※The minimum order quantity:1,000 pcs

Inquiry
Quantity

Product Description

  • Size : 5(plate) / 21(total depth) x 42(W) x 115(L)mm
  • Net Weight : 85g±5%
  • Hole distance : 83mm
  • Material : Zinc alloy
  • Operating temperature : 0℃ ~ 55℃
  • Humidity : 10%~80%
  • Power : DC 12V 1A
  • LED : DC12V 15mA
  • Life : 3,000,000 cycles (Mechanical) / 200,000 cycles(Electrical)
  • Key stroke : 1.0mm
  • N.O. / N.C. / COM.
  • Using OMRON basic switches.

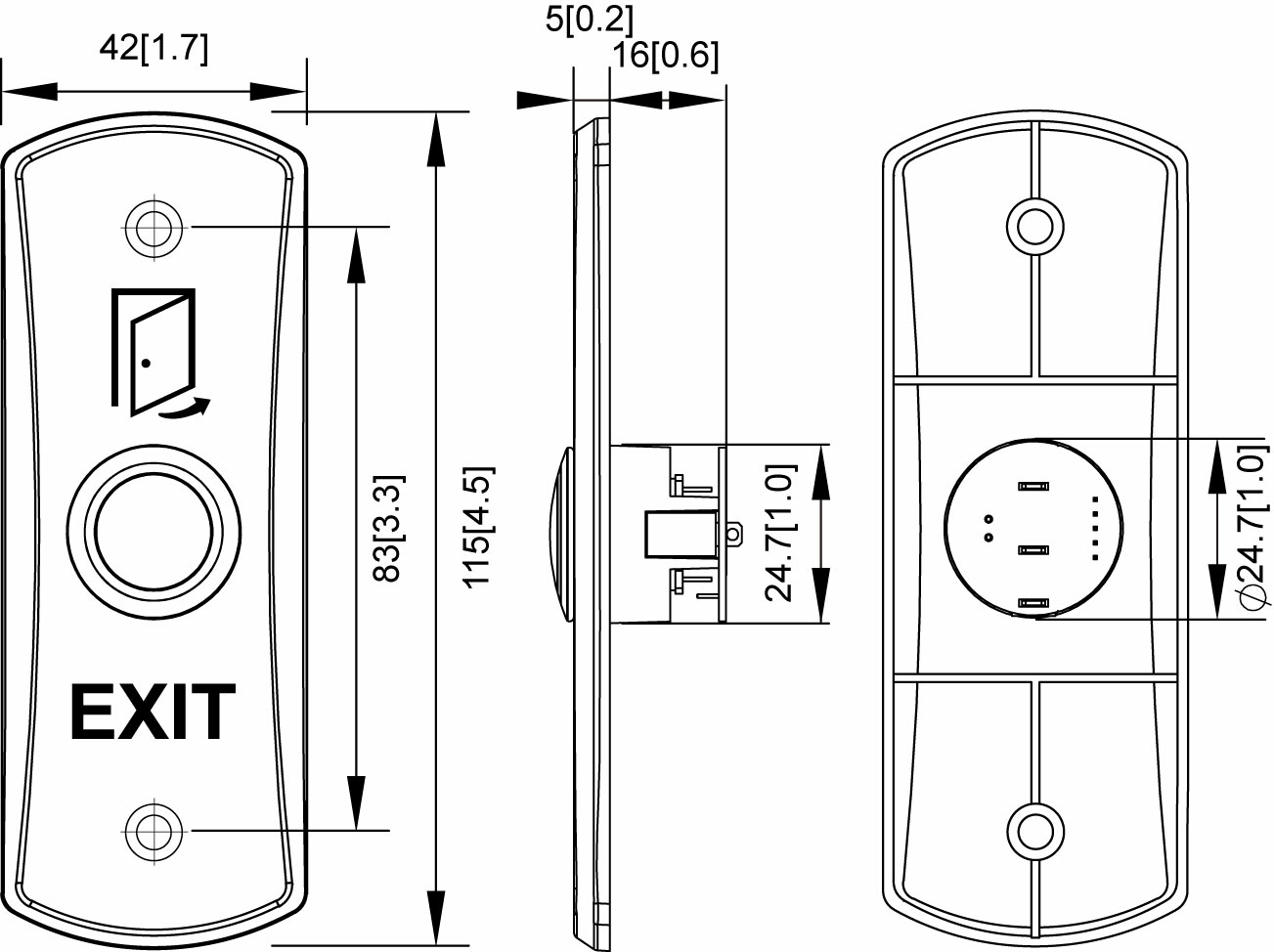

Dimension : mm[inch]

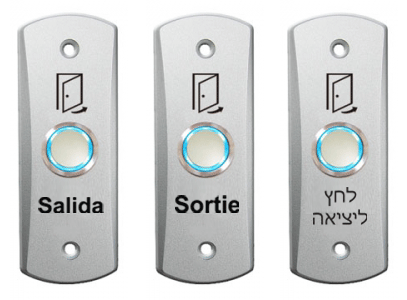

/storage/system/Exit_push_button/Dimensions_for_PBT-07.jpg/storage/system/Exit_push_button/PBT-07-mulit-language.gif

We reserve the right to change the specification without prior notice or obligation!
