600LBs, 270KGs Waterproof Electromagnetic Lock(Side Mount)

Waterproof Electromagnetic LockWaterproof Electromagnetic LockWaterproof Electromagnetic Lock

Model number： PGL-271

Selection Guides For EM Lock
Inquiry
Quantity
    Share

    Features

    • Holding force: 600LBs (270KGs)
    • Voltage : 12V/24VDC (Selectable)
    • Optional bracket available to install

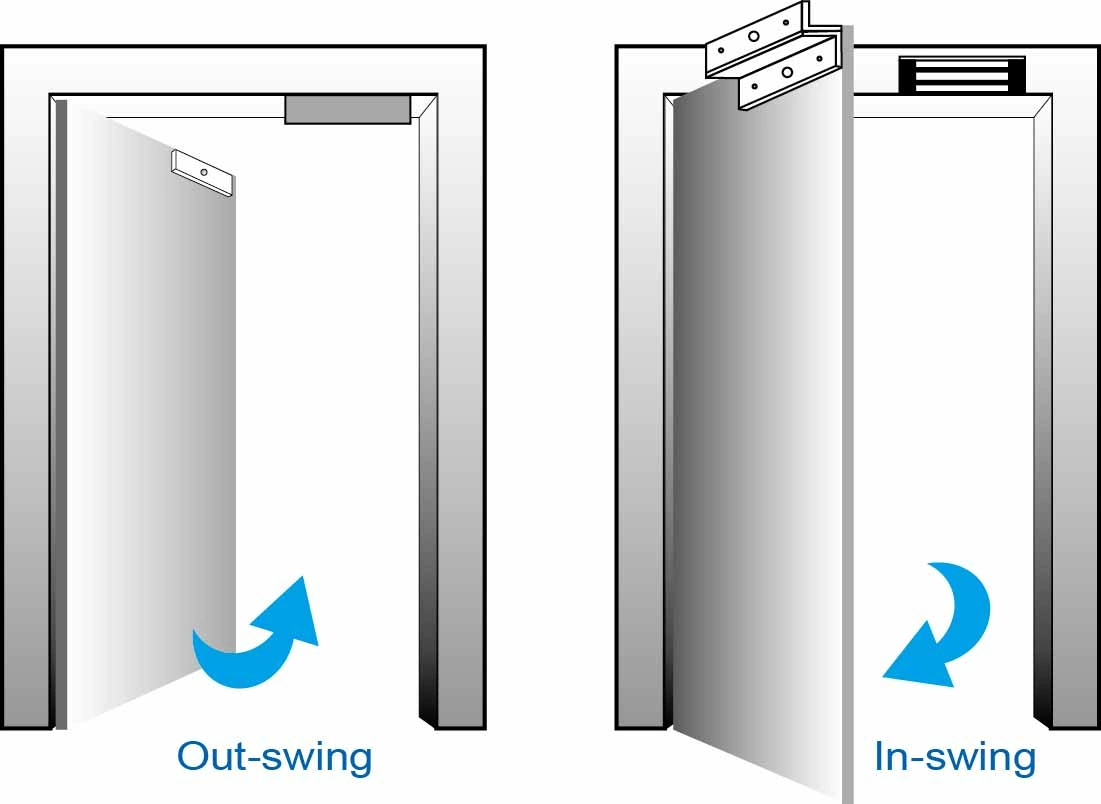

    • Suitable for security door (IN & Out Swing)
    • Waterproof IP rate for outdoor installation



    Specification

    Holding Force600LBs (270KGs)
    Voltage /CurrentDC 12V(500mA) / DC 24V(250mA)
    Door monitoringYES
    LED indicator---
    TIMER---
    Relay dry contact rating---
    MaterialMagnetStainless steel
    ArmatureSteel
    Dimensions(LxWxD)mmMagnet200x40x26
    Armature185x38x12
    Unit weight (kg)2.3kgs±1%
    Ingress Protection(IP) YES
    Bracket TypeZ Bracket: PG-BOZ110A
    /storage/system/electric_lock/PGL-271/out_in_swing_door_fot_PGL-271E.webp

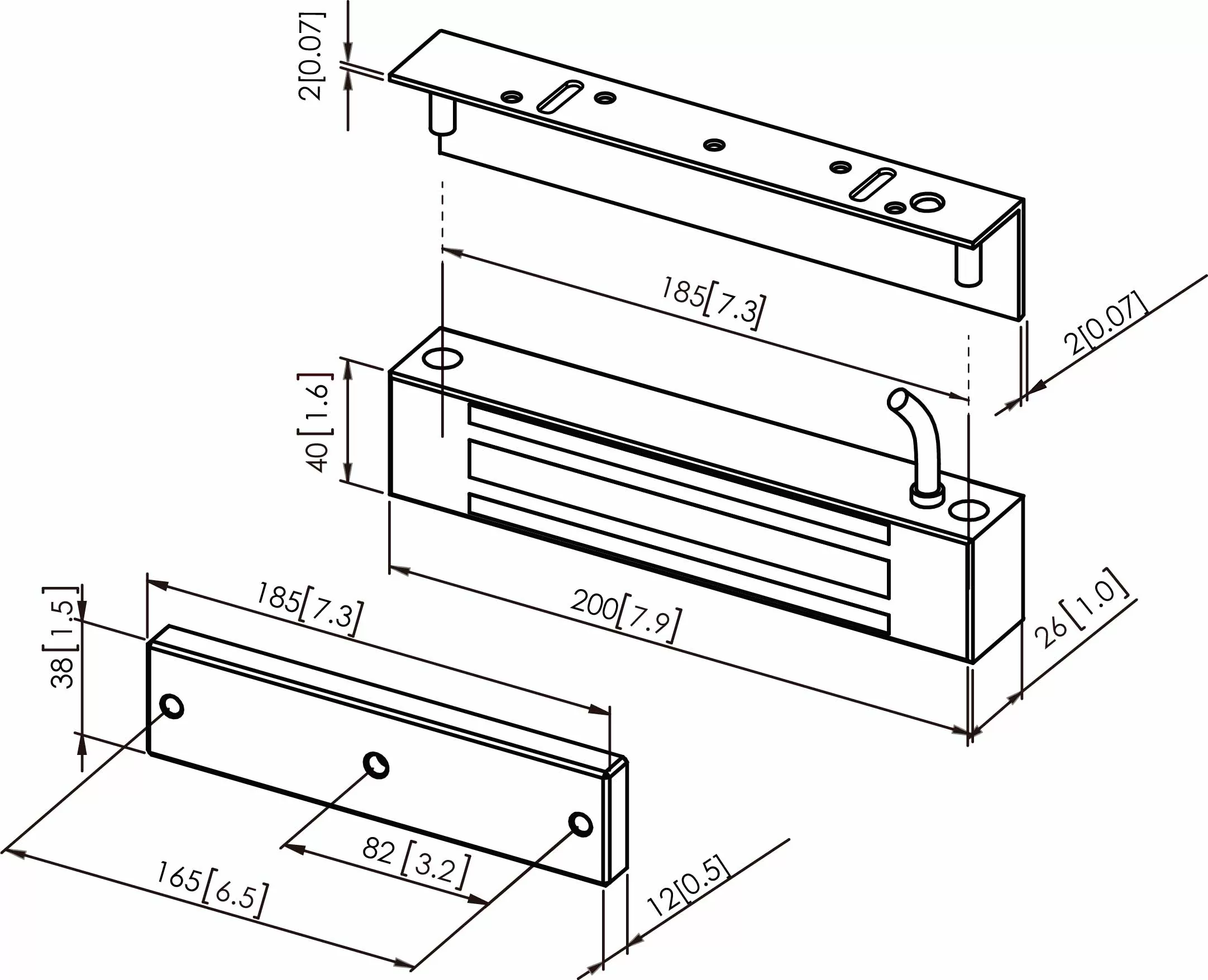

    Dimensions: mm[inch]

    /storage/system/electric_lock/PGL-271/Dimensions_for_PGL-271.webp

    Application

    For aluminum steel or wooden door, brass door, glass door with frame

    Accessories

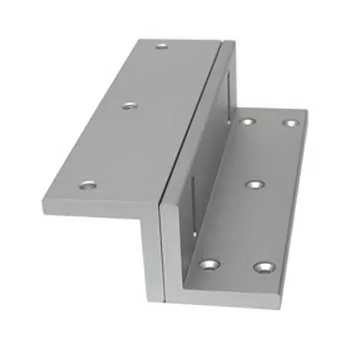

    Z fixed bracket (For In-Swing Door) PG-BOZ110A
    /storage/system/electric_lock/PGL-271/PG-BOZ110A.webp

    We reserve the right to change the specification without prior notice or obligation!

    proimages/declaration-from-Pongee-Taiwan.jpg

    Download

    #NameUpload DateDescriptionDownload
    1
    PGL-271
    2025-09-15
    600LBs, 270KGs Waterproof Electromagnetic Lock catalog
      PGL-271
