24 Relay Box (TCP/ IP Embedded)

24 Relay Box (TCP/ IP Embedded)24 Relay Box (TCP/ IP Embedded)24 Relay Box (TCP/ IP Embedded)

Model number： POM-24T3

Inquiry
Quantity
    Share

    Configuratons

    • The Pegasus POM-24T3 is a relay box of lift access control system for 24 floors.
    • Connecting this relay box with lift access controller for programming accessibility for each proximity card holder.
    • An installation of Bypass switch is proposed for switching free access.

    Specifications

    • Dimensions : 220(L) ×151(W) ×46(H) mm
    • Enclosure material : Metal case
    • Interface : TCP/IP
    • Power supply : DC12V / 620mA± 10%
    • Operating temperature : 0℃ ~ 50℃
    • Operating humidity : 20% ~ 90%
    • Relay : 24 pcs

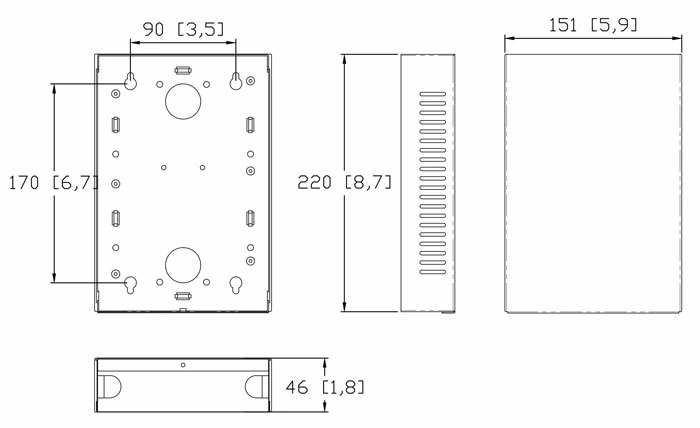

    Dimensions : mm[inch]

    proimages/lift_access_control_system/Dimensions-for-POM-24.jpg

    We reserve the right to change the specification without prior notice or obligation!
