Introduction

  • PIDF-20W26 is a LF 125KHz & HF 13.56MHz module can read EM ASK 125KHz, H.I.D. FSK 125KHz, 13.56 MHz for Mifare, Mifare Ultralight, Mifare DESFire, NFC contactless card/keytag etc. then send out some standard data format, such as Wiegand for ID data collection.
  • The users may select the suitable models for connecting to dedicate controller or PC for various applications.
  • We provide complete software/Hardware support and shorten schedule of RFID product development.
  • OEM/ODM service is available.
125KHz & 13.56MHz Read Module

Specification

RFID frequency125KHz & 13.56MHz
Applicable cardsEM, H.I.D., Mifare, Mifare Ultralight, Mifare DESFire, NFC Tag
Output formatWiegand 26 bits, TTL(Optional)
Power inputDC 4.5V ~ 5.3V

125KHz & 13.56MHz Read Module

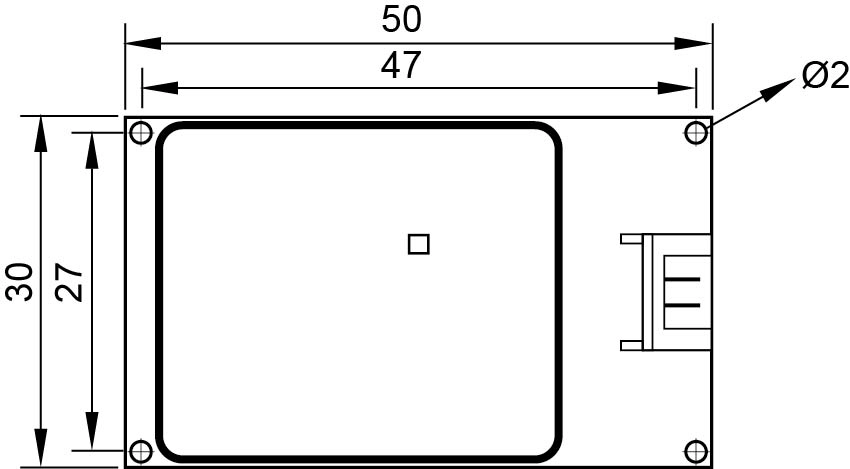

Dimension : Unit: mm

125KHz & 13.56MHz Read Module

We reserve the right to change the specification without prior notice or obligation!
