2.4GHz Long Range Active RFID Solutions

PFH-6750V Long Range 2.4G Active RFID Access Control / Reader

Model number： PFH-6750V

Inquiry
Quantity
    Share

    Features

    • Hands-Free access, Long Range Identification
    • Anti-collision function that simultaneously reads multiple cards (Up to 80 cards)
    • Reduced unnecessary belongings such as keys and petty cash
    • Applications in Time & Attendance, Automation System, Logistics, Parking system,
      Personnel and Vehicle Safety Alert
    • Applications in Residential Area: Lobby – Hands-free Access, Mailbox –Automatically unlock, Lift – Automation System with high security

    Specification

    Model No.PFH-6750V
    (2.4GHz Active Controller )    		2.4GHz Long Range Active RFID Solutions
    Identification AngleHorizontal 360, vertical 360
    Reading Range≧15M
    Power VoltageDC 12V±10%, 98mA(Standby) / 120mA(Operating)
    InterfaceRS-485 / RS-232(Optional)
    Wiegand InputWiegand (26/34 bits)
    MATERIALABS
    Dimensions(LxWxH)mm137 x 85 x 29
    IP RATINGIP45
    Model No.PFH-5210
    (2.4GHz Active Reader)    		2.4GHz Long Range Active RFID Solutions
    Reading Range≥15M(Depending on the environment)
    Power VoltageDC 12V±10%, 23mA(Standby) / 29mA(Operating)
    FormatWiegnad 26/34 bit, RS-485, RS-232
    (can be interfaced with Pegasus or other standard access controller)
    MaterialABS
    Dimensions(LxWxH)mm122 x 85 x 32
    Model No.PFH-240
    (2.4G Active Card)     		2.4GHz Long Range Active RFID Solutions
    RF Power<1mW
    Data Rate≦2Mbps
    Reading range≥15M
    Operating ModeReading only, with Anti-Collision
    Capable of batteryBattery (CR2032)x 4 pieces
    MaterialPC
    Dimensions(LxWxH)mm87 x 55 x 7


    /storage/system/Long_reader/PIC-for-PFH-6750V-E.webp

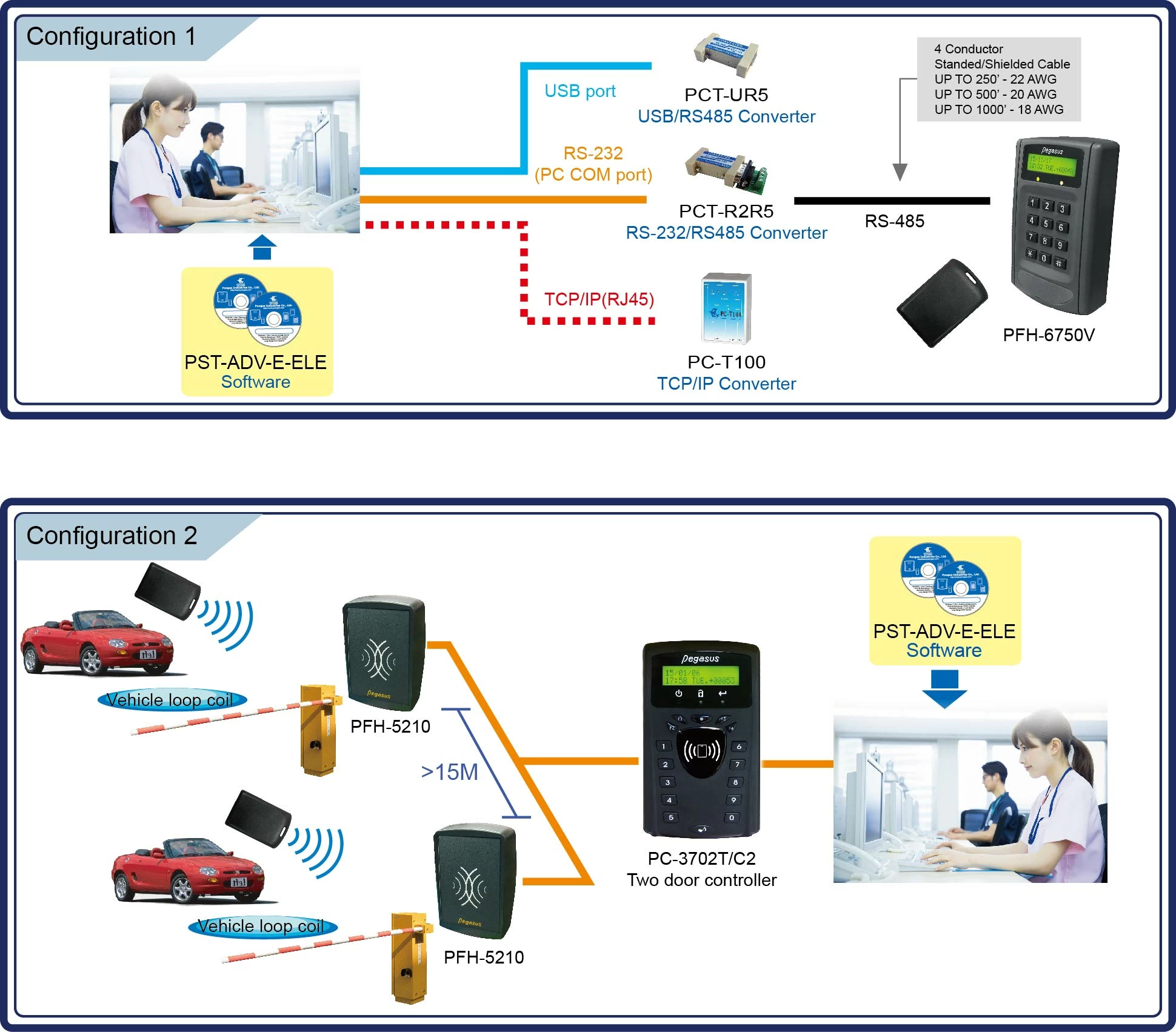

    /storage/system/Long_reader/Configurations_PFH-6750V.webp

    Ordering information

    PFH-6750VX/R52.4G Active RFID Access Control / Reader, Reading Range 15m
    PFH-6750VXR5S32.4G Active RFID Access Control / Reader, Reading Range 3m
    PFH-6750VXR5S52.4G Active RFID Access Control / Reader, Reading Range 5m
    PFH-5210W2.4G Reader, Wiegand 26/34bit & UART(TTL)
    PFH-5210WS32.4G Reader, Wiegand 26/34bit & UART(TTL), Reading Range 3m
    PFH-5210WS52.4G Reader, Wiegand 26/34bit & UART(TTL), Reading Range 5m
    PFH-5210WR22.4G Reader, Wiegand 26/34bit & UART(TTL), RS-232
    PFH-5210WR52.4G Reader, Wiegand 26/34bit & UART(TTL), RS-485
    PFH-5210WT2.4G Reader, Wiegand 26/34bit & UART(TTL), TCP/IP
    PFH-2402.4G Active Card
    PST-ADV-E-ELEAccess Control / Time & Attendance Software
    ​​​​​​ /storage/system/access_controller/6750V/SolutionI-6750V.webp

    Specifications subject to change without notice for further modification.
