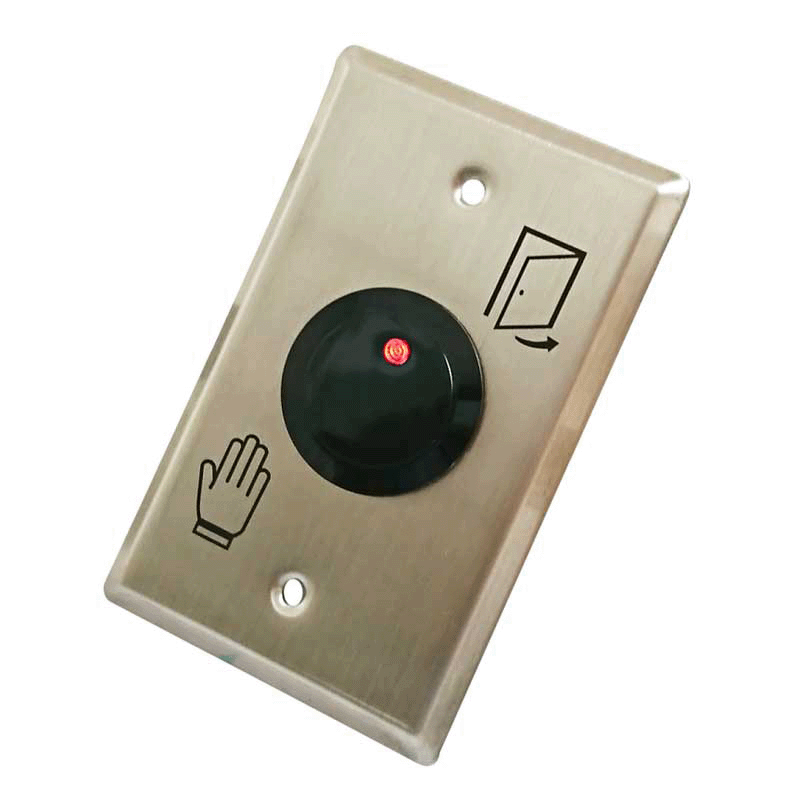

Touchless Infrared Sensor Button, Stainless Steel

Contactless exit button with infrared sensorTouchless Infrared Sensor Button, Stainless SteelContactless exit button with infrared sensorContactless exit button with infrared sensor

Model number： PBT-286IRAV-PBT-211IRBV

Selection Guides For Infrared Sensor Switch Series
Inquiry
Quantity
    Share

    Features

    • Form C relay output (1A@30VDC)
    • Adjustable output time 0.5~20 sec. Trigger / Toggle
    • Adjustable sensing range 3~15cm
    • Voltage : 10V/24V DC (auto-adjusting)
    • The front of the detector is waterproof design.

    Specification

    Model No.PBT-286IRAVPBT-211IRBV

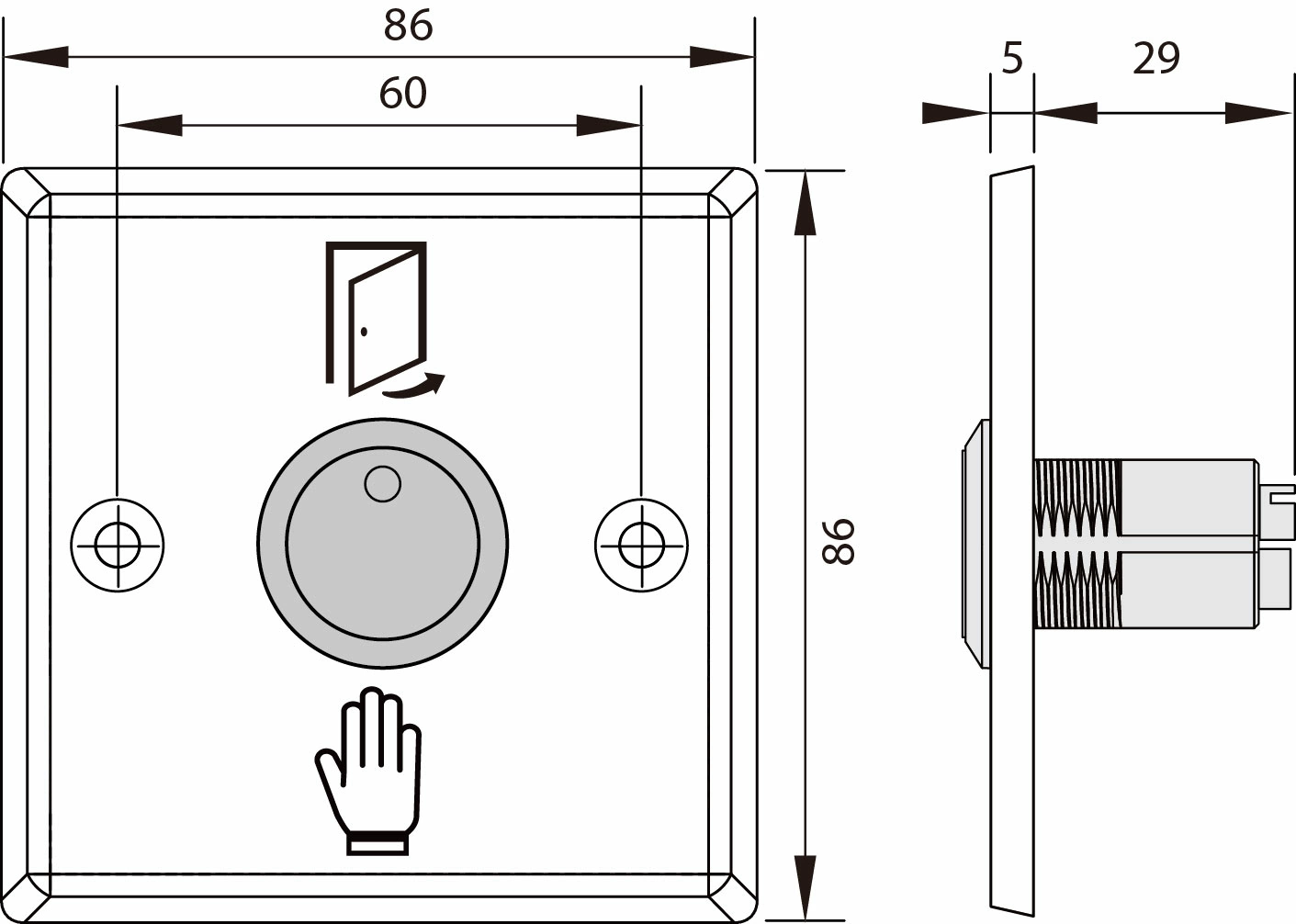

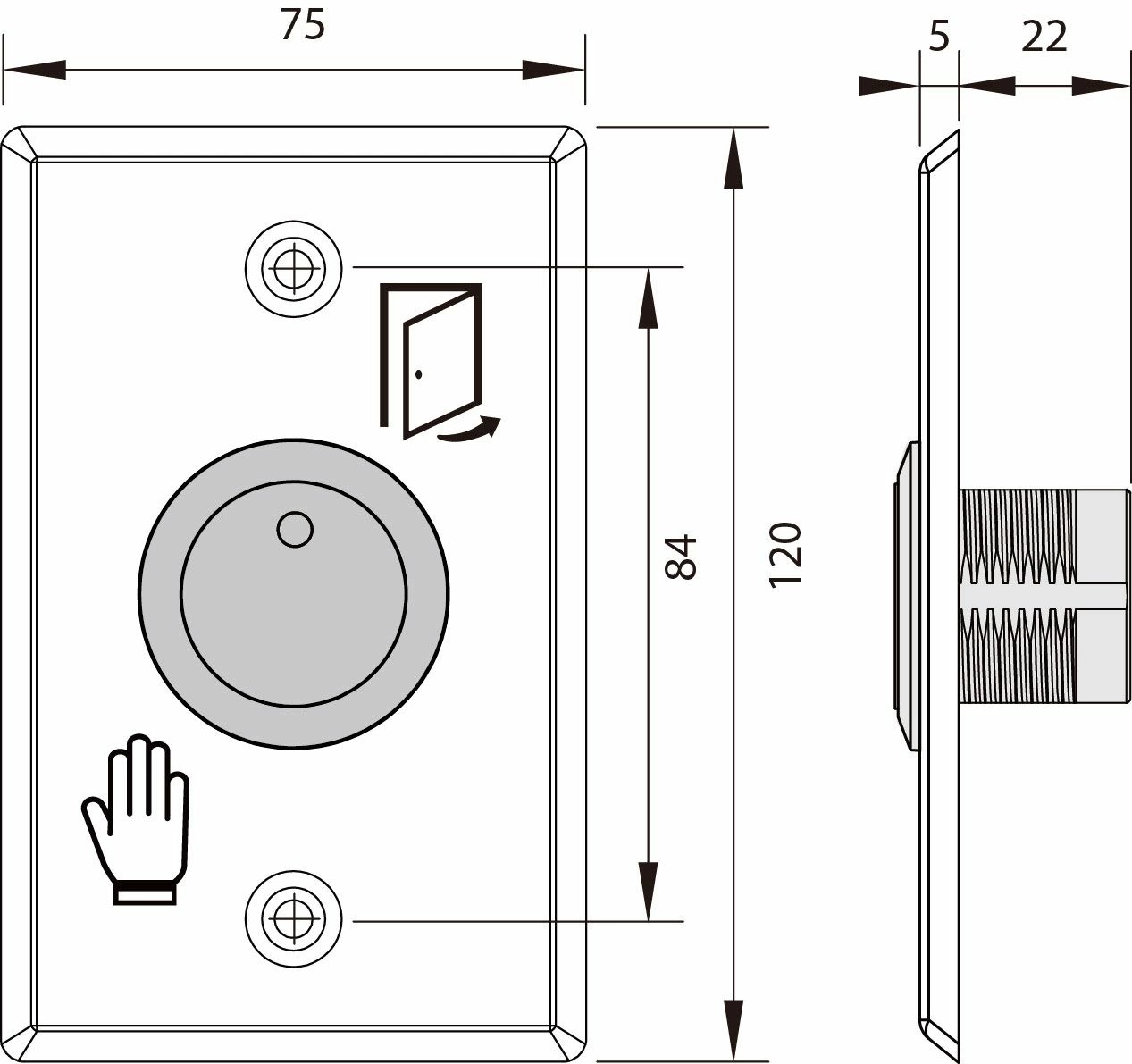

    Dimensions(mm)Touchless Infrared Sensor Button, Stainless SteelTouchless Infrared Sensor Button, Stainless Steel
    Voltage / CurrentDC10V (47mA)~24V(28mA)DC10V (42mA)~24V(26mA)
    Relay typeForm C dry contact, N.O./N.C./COM., 1A@30VDC, 0.3A@125VACForm C dry contact, N.O./N.C./COM., 1A@30VDC, 0.3A@60VDC, 0.5A@125VAC
    Output time0.5~20 sec, Trigger / Toggle
    Sensor Range3~15cm
    LED Status indicatorPower on: Red, Proximity: Blue (Optional Blue/Green)
    Case materialIR SensorUV & Fire Polycarbonate
    Face plateStainless Steel
    IP RatingIP65 (IR Sensor)
    Operating lifeRelay: 100,000 cycles

    How to assembly

    proimages/Exit_push_button/How-to-assembly-for-PBT-211001.jpg

    Example Applications

    proimages/Exit_push_button/PBT-30IR/Application-for-IR-sensor(22E).jpg
    Touchless Infrared Sensor Button, Stainless Steel

    We reserve the right to change the specification without prior notice or obligation!
