Touch Keypad Networked ControllerTouch Keypad Networked ControllerTouch Keypad Networked Controller

Model number: PP-53

Inquiry
Quantity

Features

  • Single door (one-way or two-way control)
  • Classic and slim design, suitable for installation in narrow place
  • Support 32000 Cards (Standalone/Networked)
  • Built-in LED and Buzzer indicator, door bell
  • Multiple access method: Card only, PIN code only, Card with PIN code
  • IP54 weatherproof for indoor/outdoor useTouch Keypad Networked Controller

Specification

MODEL NO.PP-53XNR5T3PP-53XM0R5T3PP-53XFR5T3
FREQUENCY125KHz ASK13.56MHz13.56MHz
COMPATIBILITYISO18000-2 EM4001, 4100, 4102, TEMIC 5567ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESFire, NFC (card simulation), ISO14443 B(Optional), ISO15693(Optional)ISO18092 FeliCa
USER CAPACITY32,000 card capacity, 32,000 events
POWER VOLTAGEDC 12V
INTERFACERS-485 / RS-232/ TCP/IP
WIEGAND INPUTWiegand (26/34 bits)
INPUTExit push button / Door monitor / Security sensor
OUTPUTAlarm output / Tamper switch output / Electric lock output
KEYPADTouch Keypad
MATERIALABS
DIMENSIONS (LXWXH)MM125 x 83 x 27
IP RATINGIP54

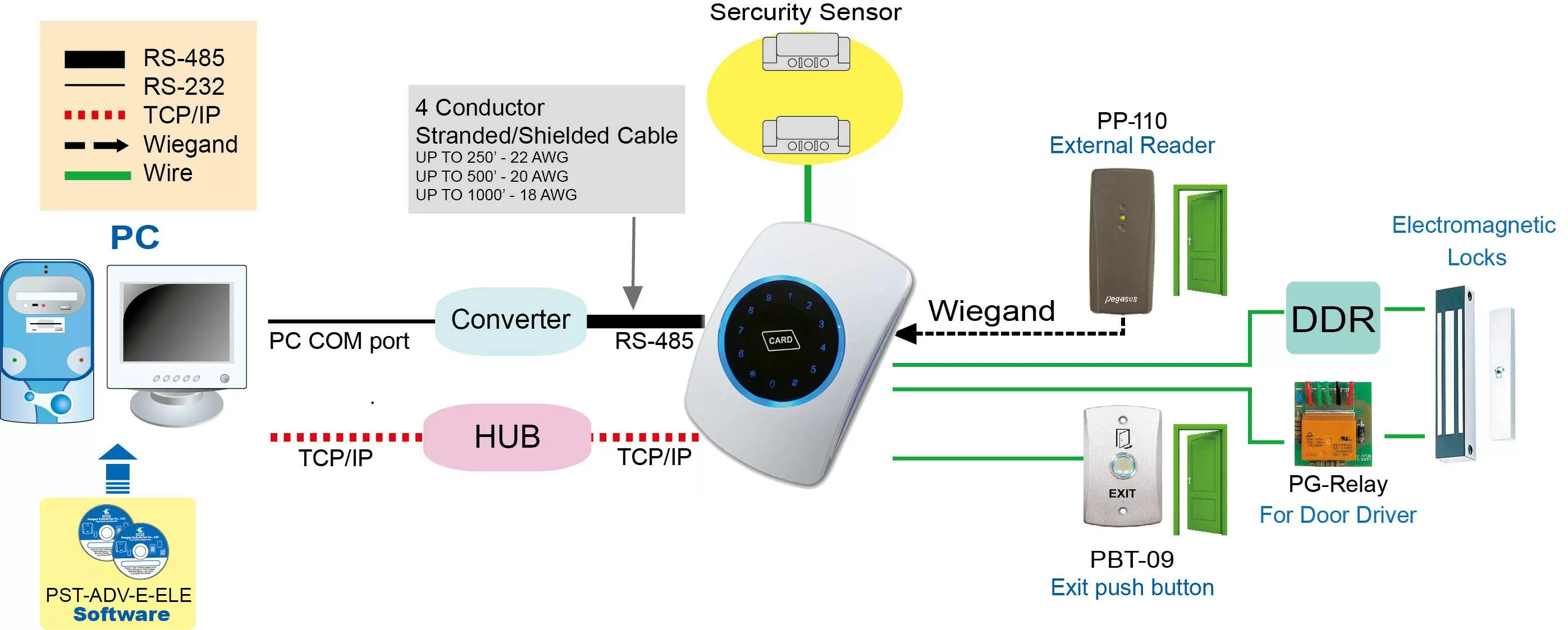

System configuration


Touch Keypad Networked Controller

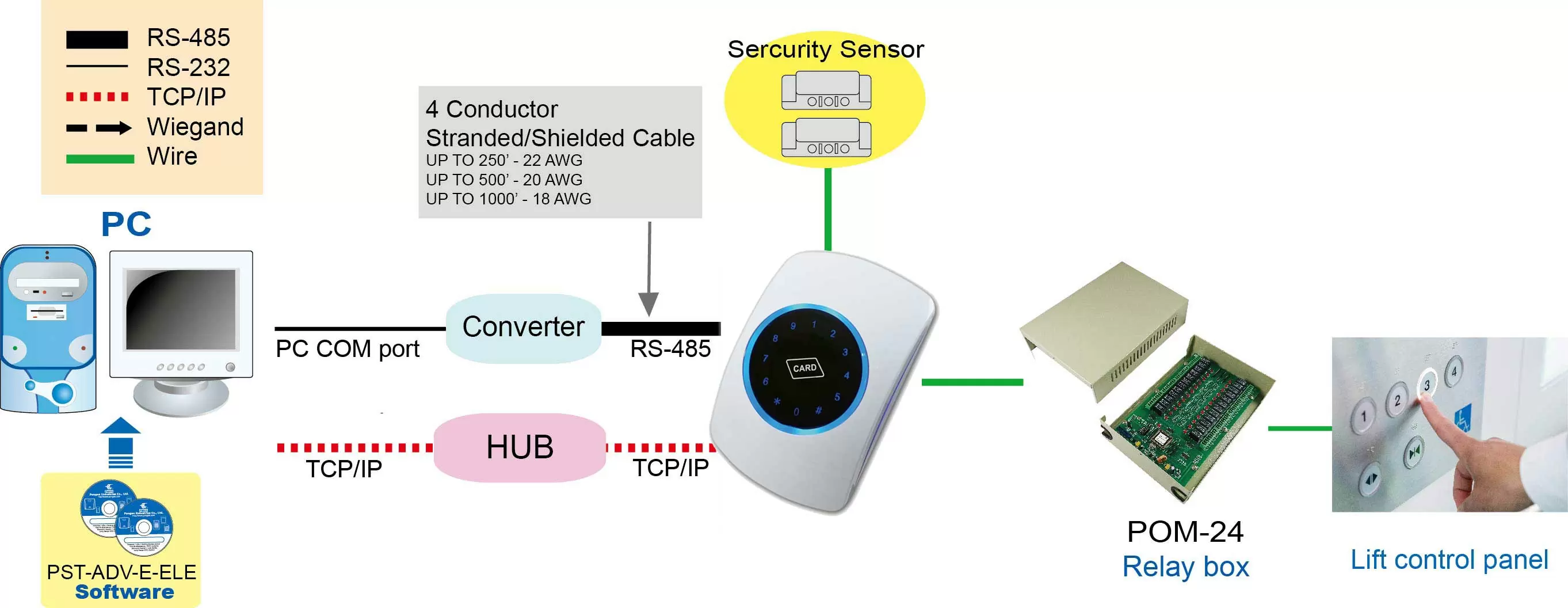

Lift access controller system
Touch Keypad Networked Controller

Dimension: mm

Touch Keypad Networked Controller

Mifare is a registered trademark of NXP B.V.
Mifare DESFire is a registered trademark of NXP B.V.
Mifare Ultralight is a registered trademark of NXP B.V.
FeliCa is a trademark of Sony Corporation.

We reserve the right to change the specification without prior notice or obligation!

proimages/declaration-from-Pongee-Taiwan.jpg

Download

#NameUpload DateDescriptionDownload
1
PP-53
2024-04-23
Touch Keypad Networked Controller
