RFID HF Desktop Reader

Pegasus PUA-310PA RFID HF Desktop Reader

Model number： PUA-310PA

With multi card formats output by the software
Inquiry
Quantity
    Share

    Features

    • With multi card formats output by the software.
    • Applicable cards: Mifare, Mifare Ultralight, Mifare DESFire, NFC Tag
    • Serial port emulator thru USB interface.
    • With CPU watch-dog function to prevent malfunction.
    • LED indicators show power and operation status.
    • Built-in buzzer for sound notification.

    Specifications

    RFID frequency13.56MHz
    CompatibilityMifare, Mifare Ultralight, Mifare DESFire, NFC Tag
    System SupportWindows XP SP2 / Vista / 7 / 8 / 8.1 / 10 / 11
    Mac OS 8/9, OS X / Linux / Android
    Reading RangeMax. 5cm

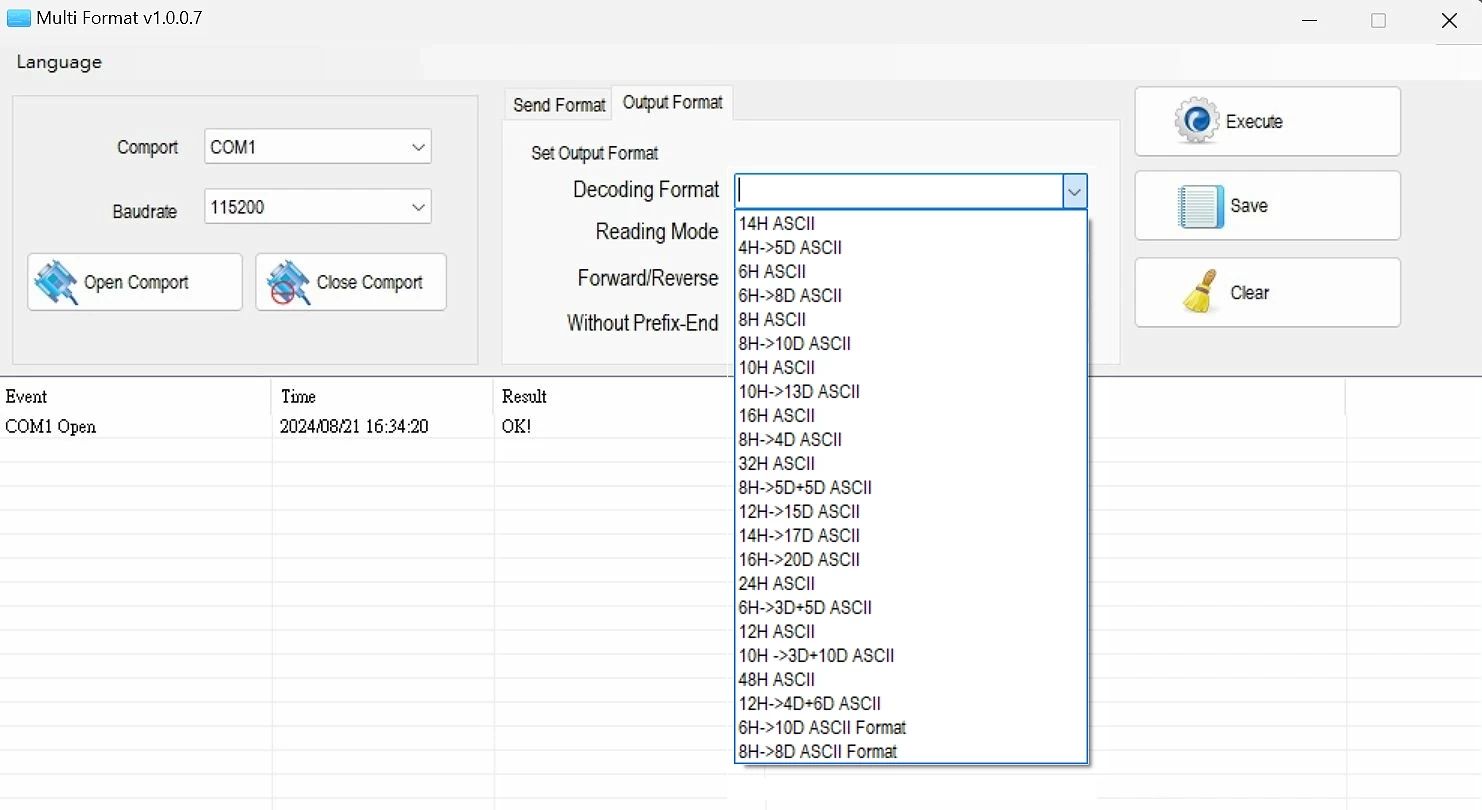

    Output formatBy Software (MultiFormat)
    Power inputBy USB
    MaterialPC
    Dimension(mm / inch)118 x 75 x 17 / 4.6 x 3.0 x 0.7
    Operating temperature-10℃~70℃
    Storage temperature-20℃~85℃
    RFID HF Desktop Reader

    Application field

    RFID Reader-Charging stationRFID Reader-HMI、PLCRFID Reader-Production controlRFID Reader-Vehicle rental system
    Charging stationHMI、PLCProduction controlVehicle rental system

    RFID Reader-Kiosk/POS SystemRFID Reader-Membership SystemRFID Reader-Library automation
    Kiosk/POS SystemMembership SystemLibrary automation
    Mifare is a registered trademark of NXP B.V.
    MIFARE DESFire is a registered trademark of NXP B.V.


    We reserve the right to change the specification without prior notice or obligation!
