ISO 14443A ISO14443B ISO15693Desktop RFID Smart Card Reader and Writer / ProgrammerISO 14443A ISO14443B ISO15693Desktop RFID Smart Card Reader and Writer / ProgrammerISO 14443A ISO14443B ISO15693Desktop RFID Smart Card Reader and Writer / ProgrammerISO 14443A ISO14443B ISO15693Desktop RFID Smart Card Reader and Writer / Programmer

Model number: PW-710

Inquiry
Quantity

Features

  • The RFID smart card reader and writer is designed to comply with ISO14443A / B、ISO15693 standard for reading and writing the smart card for various applications. such as prepaid value system for vehicle, ticket, membership club, dining, laundry, etc. it's easily to communicate with PC by USB interface.
  • LED’s normal state is in oragne when it’s power on, but LED will be changed to Green when the legal card is read and beeps twice.

Specifications

Model NoPW-710
Frequency13.56MHz
Compatibility13.56MHz Mifare (ISO 14443A / 14443B / 15693)
Power VoltageBy USB
Output Format
Interface
USB
Device Driver Operating System Support*Windows XP SP2 / Vista / 7 / 8 / 8.1 / 10
*Mac OS 8/9, OS X
*Linux/Android
*Windows 11(Optional)
IP Rating IP54
Dimensions(LxWxH)mm122x77x32

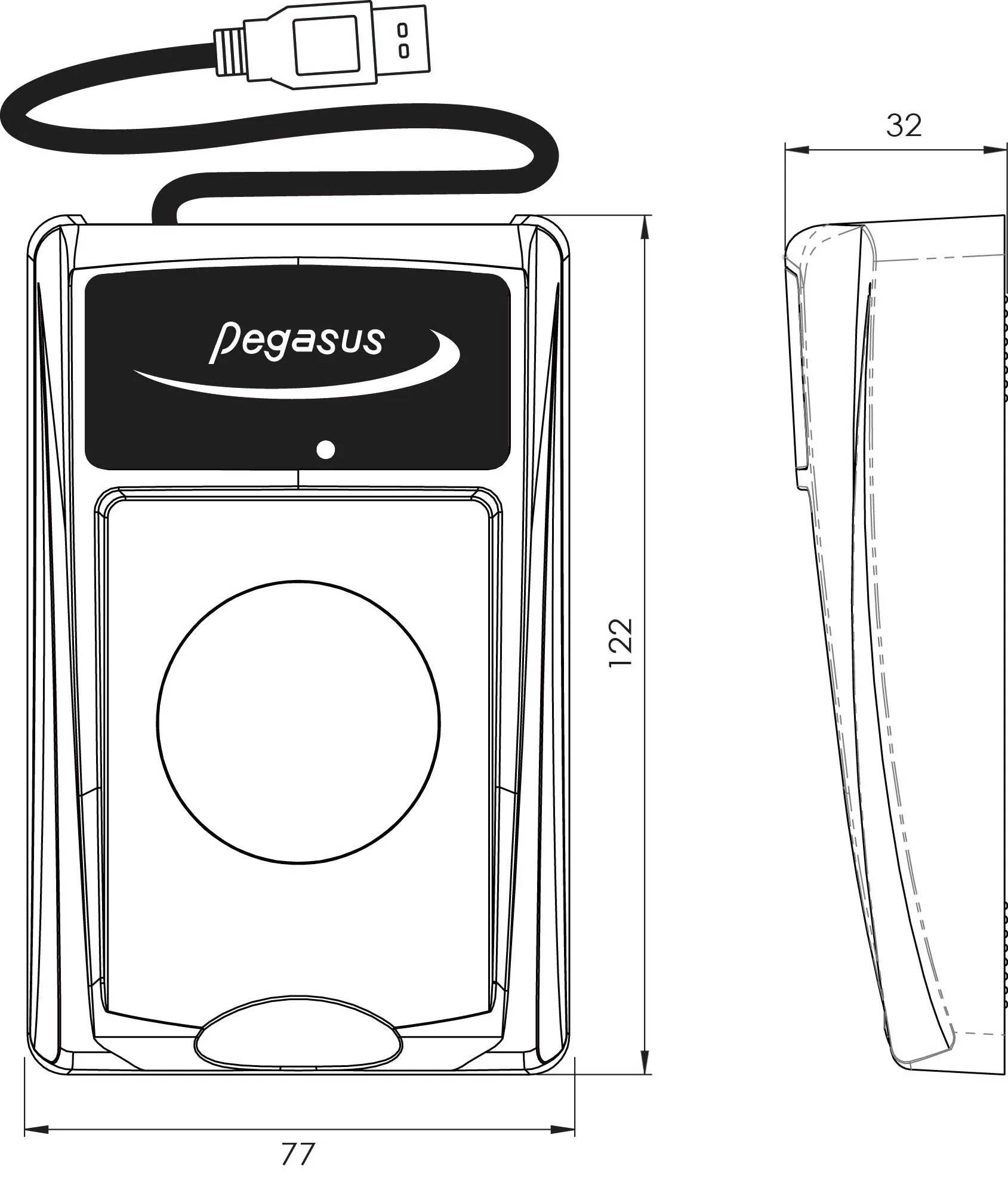

Dimension: Unit: mm

Desktop RFID Card Reader and Writer / Programmer
Desktop RFID Card Reader and Writer / Programmer

Application field

  • Prepaid value function.
  • Member system.
  • RFID data reading.
  • RFID data writing.

Ordering information

PW-710-0M2U2Y4Desktop, USB interface , reader and writer , support ISO 14443A
PW-710-0M2U2Z2Desktop, USB interface , reader and writer , support  ISO 15693
PW-710-0M2U2Z1Desktop, USB interface , reader and writer , support ISO 14443A / 14443B / 15693

Mifare is a registered trademark of NXP B.V.


We reserve the right to change the specification without prior notice or obligation!
