PR-2752 RF Remote Type Vehicle Access Control System

Model number: PR-2752

Inquiry
Quantity

Product Description

  • For car parking or door access control system with reading.
  • With 2 RF receiver ports and anti-pass back function.
  • Up to 9999 card holder / 6000 events.
  • Support Standalone operation or PC On-line communication through RS -232C or RS-422 or RS-485.

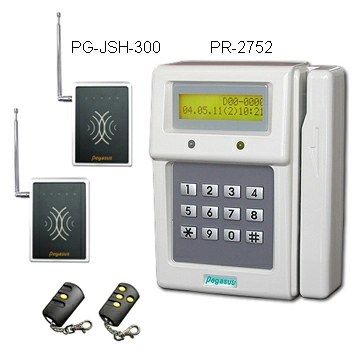

  • PR-2752 (controller) + PG-JSH-300 (Receiver/antenna) + Transmitter, for 15 meters reading.

Features

  • With built-in quartz real time clock for time zone control & time recording.
  • With tamper switch and one loop sensor input to trigger alarm when case is tampered or loop is intruded.
  • Standalone / Network communication through RS -232C /RS-422/ RS-485
  • Up to 9999 card holder / 6000 events.
  • Operation modes : Transmitter only.
  • 10 years for real time clock and transaction data retention at power failure CMOS CPU with low power consumption & watchdog function.

Specifications

  • Dimensions 156(L)x 123(W)x 42(H)mm
  • Weight 1370g
  • Operation temperature 0°C ~ 55°C
  • Humidity 20%~90% RH, Non condensation
  • Code: Hopping code or Pegasus code
  • Card: transmitter
  • Communications: RS -232C , or RS-422 or RS-485
  • Display: 16 x 2 lines LCD and LED backlighted
  • Keypad: 4 x 3 membrane for system programming, Password entry, duty code selection
  • Anti-pass: back For one door anti-pass back
  • Reset: Watchdog timer, power reset, self recovery watchdog ( optional )
  • Indicators: LED's ( one bicolor and one yellow ) and buzzer for sound indication
Transmitter
  • Dimensions : 36(W) x 65(L) x13(H)mm
  • PTX-201:Single key transmitter
  • PTM-201:Single key transmitter with internal 125KHz transponder
  • PTX-204:Four keys transmitter
  • PTM-204:Four keys transmitter with internal 125KHz transponder

System configuration

proimages/Long_reader/configuration-for-PR-2752-C.jpg

We reserve the right to change the specification without prior notice or obligation!
